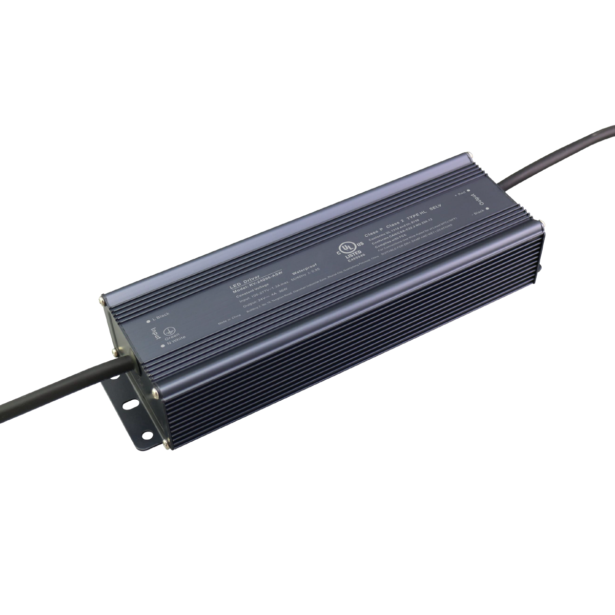

OSLV96
The OSLV96 is a 96 Watt outdoor-rated LED power supply designed for color changing and pixel lighting. Built to withstand harsh weather conditions, it off ers high efficiency and reliable performance, making it ideal for outdoor installations. The OSLV96 seamlessly powers a wide range of Kelvix color changing and digital pixel products, ensuring consistent, dynamic lighting for creative outdoor displays.
• Non-Dimmable Driver
• Compatible with Color Changing and Pixel Systems
• Overload Protection/Auto Reset Short Circuit Protection
• Free Air Convection Cooling
• Suitable for Dry/Damp/Wet Location
• UL-Listed Class 2
Downloads
Technical Specifications
| Series/Ordering Code | OSLV96 |
| Input Voltage | 120–277V |
| Output Voltage | 24V DC Constant Voltage |
| Max Wattage | 96W |
| Dimming Options | Requires external decoder & controls |
| Operating Temp | -40°F (-40°C) to 140°F (60°C) |
| Storage Temp | -40°F (-40°C) to 176°F (80°C) |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
- oslv96 — oslv96
Standards and Certifications
Related Products
Compatible Products
Uniform Static White (Indoor)
Uniform Static White (Outdoor)
Uniform Thin Line (Indoor)
Uniform Thin Line (Outdoor)
Uniform Ingrade (Indoor/Outdoor)
Easy 502 Uniform Static White (Indoor)
Vine™
FlexFit™ Static White (Indoor)
Signwave® 3 Silicone (Indoor/Outdoor)
Signwave® 5 Silicone (Indoor/Outdoor)
Jagger (Indoor)
Slinx (Indoor/Outdoor)
Side Emitting (Indoor)
Performance 100 (Indoor)
Performance 100 (Outdoor)
Performance 200 (Indoor)
Performance 200 (Outdoor)
Performance 300 (Indoor)
Performance 300 (Outdoor)
Performance 500 (Indoor)
Performance 500 (Outdoor)
Direct View 200 (Indoor)
Direct View 200 (Outdoor)
Direct View 400 (Indoor)
Direct View 400 (Outdoor)
Direct View 700 (Indoor)
Direct View 700 (Outdoor)
Max™ 100 (Indoor)
Max™ 100 (Outdoor)
Max™ 200 (Indoor)
Max™ 200 (Outdoor)
Fizzix™
Ben 228
Kate 202
Melissa 006
Zach 409
Endurawave Narrow RGBW
Endurawave Narrow Static White
Light Up Your Project With Class 2 Power Supplies by Kelvix
As a leading LED lighting manufacturer, Kelvix designs every product with the utmost safety and reliability, and our Class 2 Power Supplies are no different. We’ve constructed the Mini ULV96 and Mini HLV96 to reduce the risk of electric shock and fire hazards, ensuring high performance in every low-voltage application.
Why Choose Our Class 2 Power Supplies?
Unlike their Class 1 counterparts, our Class 2 Power Supplies don’t require an earth ground to promote safety. Both the Mini ULV96 and HLV96 are Class 2 UL-Listed, granting you peace of mind.
Kelvix Class 2 Power Supplies deliver reliable performance, boasting a design that’s 60% lighter than their predecessors. Additionally, our high-quality, compact, and versatile power solutions make installations effortless, whether indoors (both products) or outdoors (Mini HLV96).
Certified for dry and damp environments, our power options offer the durability you need. The Mini HLV96 has an IP66 rating, providing greater flexibility for dry, damp, and wet indoor or outdoor environments.
Thanks to constant voltage universal dimming and logarithmic dimming curves, achieving the level you desire is easy. When you choose Kelvix’s Class 2 Power Supplies, you’re prioritizing safety, efficiency, flexibility, and high performance.
Work with Kelvix for Your LED Lighting Project Needs
Kelvix is a full-service LED lighting provider. Unlike other companies, we provide unparalleled products and support that get your project off the ground. Our experts offer:
- Project Management: Our dedicated LED lighting project managers coordinate timelines, handle budgets, and offer guidance from start to finish.
- Design & Specification Assistance: We take your dream and make it a reality with expert documentation and development.
- Applications Engineering: Skilled Kelvix engineers excel in controls and programming to guarantee successful outcomes.
- Samples, Mockups, & Demos: See your products in real time with free quality samples (totaling $300 or less) and tangible mockups, whether on-site or virtual.
- Manufacturing & Shipping: Tap into The Kelvix Way, where we’ll assemble your products in-house if required and ensure on-time delivery with the industry’s fastest shipping.
When you need quality and industry expertise for your LED lighting project, Kelvix is your team. Build your Class 2 Power Supply products today, and contact us to get started.
