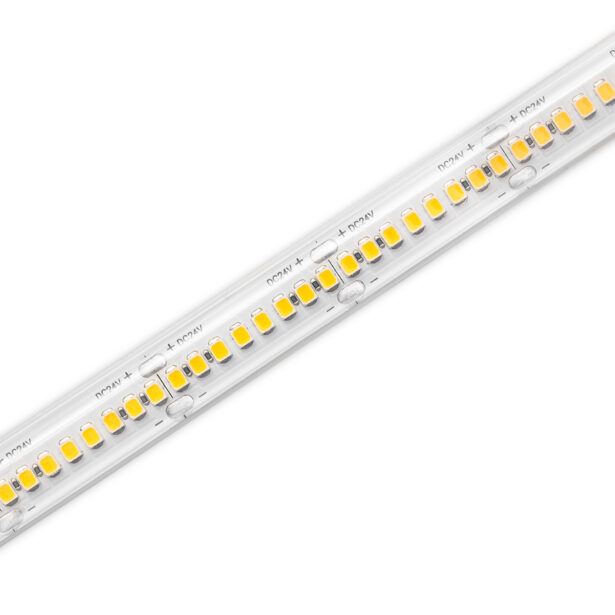

Uniform Static White (Outdoor)
UNIx-WL Series | Outdoor White Light Strip Tape
Our Uniform Static White series provides single bin color consistency across every single output option and will never create a diode image when paired with any Kelvix channel.
- Uses U2835 Diode
- Create a Custom Fixture with Kelvix Channels
- 5-Year Warranty
- UL-Listed Indoor and Outdoor
- 3M Industrial Adhesive Backing
- For Use with 24V Power Supplies
- Dimmable using Kelvix Power Supplies
- IP67
Downloads
Spec Sheet
Spec SheetInstallation Instructions
Warranty
IES Files
- UNI3-WL-O-100 – Uniform Static White (Outdoor) 100lm/ft
- UNI3-WL-O-200 – Uniform Static White (Outdoor) 200lm/ft
- UNI3-WL-O-300 – Uniform Static White (Outdoor) 300lm/ft
- UNI3-WL-O-400 – Uniform Static White (Outdoor) 400lm/ft
- UNI3-WL-O-500 – Uniform Static White (Outdoor) 500lm/ft
- UNI3-WL-O-750 – Uniform Static White (Outdoor) 750lm/ft
- UNI3-WL-O-1000 – Uniform Static White (Outdoor) 1000lm/ft
- UNI3-WL-O-1250 – Uniform Static White (Outdoor) 1250lm/ft
- UNI3-WL-O-1500 – Uniform Static White (Outdoor) 1500lm/ft
Additional Files
Technical Specifications
| Series | UNIx-WL |
| Temp/Color* | 1800K–6500K |
| Input Voltage | 24V DC/Constant Voltage |
| Beam Spread | 120° |
| CRI | Ra 90+ |
| Diode | 2835 |
| Diode Pitch | 240 LED/m |
| Cut Intervals | 1.31" (33.3mm) |
| Dimensions | 0.57" (14.5mm) x 0.18" (4.5mm) |
| Dimensions w/End Caps | 0.69" (17.5mm) x 0.24" (6.0mm) |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
| Storage Temp. | -4°F (-20°C) to 158°F (70°C) |
* Customizable—Consult Factory
| UNI3-WL-100 | UNI3-WL-200 | UNI3-WL-300 | UNI3-WL-400 | UNI3-WL-500 | UNI3-WL-750 | UNI3-WL-1000 | UNI3-WL-1250 | UNI3-WL-1500 | |
|---|---|---|---|---|---|---|---|---|---|
| 1800K (lm/ft) | 80 | 156 | 235 | 311 | 375 | 610 | 812 | 998 | 1211 |
| 2200K (lm/ft) | 87 | 170 | 256 | 339 | 408 | 643 | 858 | 1054 | 1278 |
| 2400K (lm/ft) | 89 | 175 | 265 | 350 | 421 | 658 | 877 | 1078 | 1307 |
| 2700K (lm/ft) | 93 | 181 | 276 | 364 | 439 | 676 | 901 | 1108 | 1343 |
| 3000K (lm/ft) | 96 | 187 | 283 | 374 | 451 | 691 | 922 | 1133 | 1373 |
| 3500K (lm/ft) | 99 | 193 | 292 | 386 | 466 | 709 | 947 | 1163 | 1409 |
| 4000K (lm/ft) | 101 | 197 | 297 | 393 | 473 | 721 | 961 | 1182 | 1432 |
| 5000K (lm/ft) | 102 | 199 | 300 | 397 | 479 | 730 | 972 | 1195 | 1449 |
| 6500K (lm/ft) | 106 | 206 | 312 | 413 | 498 | 728 | 971 | 1193 | 1446 |
| Wattage1 (per ft) | 0.7 | 1.3 | 2 | 2.6 | 3.4 | 4.4 | 5.6 | 7.2 | 8.6 |
| Efficiency (lm/W) | 138 | 141 | 144 | 144 | 134 | 155 | 166 | 157 | 159 |
| Max Run Length (ft) | 46 | 30 | 25 | 22 | 19 | 17 | 14 | 11 | 11 |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- UNI3-WL — Uniform Static White
2. Location
- O — Outdoor
3. Output*
- 100 — 100 lm/ft
- 200 — 200 lm/ft
- 300 — 300 lm/ft
- 400 — 400 lm/ft
- 500 — 500 lm/ft
- 750 — 750 lm/ft
- 1000 — 1000 lm/ft
- 1250 — 1250 lm/ft
- 1500 — 1500 lm/ft
4. Temp/Color*
- 18K — 1800K
- 22K — 2200K
- 24K — 2400K
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 50K — 5000K
- 65K — 6500K
5. Voltage
- 24V — 24V DC
6. Modification
- NA — None
* Customizable—Consult Factory
Standards and Certifications
Power/Connect Options
Lead
FML-2C-1
12.00" (305.0mm)
FML-2C-2
24.00" (0.60m)
FML-2C-3
36.00" (0.91m)
FML-2C-6
72.00" (1.82m)
FML-2C-12
144.00" (3.65m)
FML-2C-15
180.00" (4.57m)
FML-2C-20
240.00" (6.09m)
Lead with DC Plug
FML-2C-DC-1-M
12" (305mm)
FML-2C-DC-1-F
12" (305mm)
FML-2C-DC-6-M
72" (1.82m)
FML-2C-DC-6-F
72" (1.82m)
FML-2C-DC-10-M
120" (3.04m)
FML-2C-DC-10-F
120" (3.04m)
Connectors
FMC-2C-1.5|
1.5" (38mm)
FMC-2C-3I
3" (76mm)
FMC-2C-6I
6" (152mm)
FMC-2C-9I
9" (228mm)
FMC-2C-1
12" (305mm)
FMC-2C-2
24" (0.60m)
