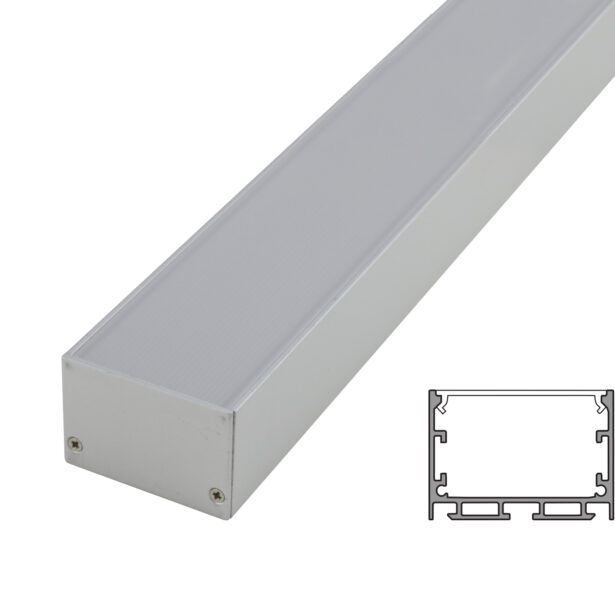

CH-046-R-E
2" × 1.375" | Surface / Suspended
Store in a Temperature-Controlled Environment.
- Available in 2 Meter Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Technical Specifications
| Length | 78.74" (2m) |
| Overall Width | 1.20 (50mm) |
| Internal Width | 1.54" (39mm) |
| Height | 1.38" (35mm) |
| Lens Color | White |
| Finish | Anodized Matte |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- CH-046-R-E — CH-046-R-E
2. Length
- 2 — 2 Meter
3. Lens
- WH — White
4. Mounting
- SP — Suspension
- CP — Mounting Clip
5. End Cap
- EC — End Caps (Included)
Connector Options
