Crayon (Indoor/Outdoor)

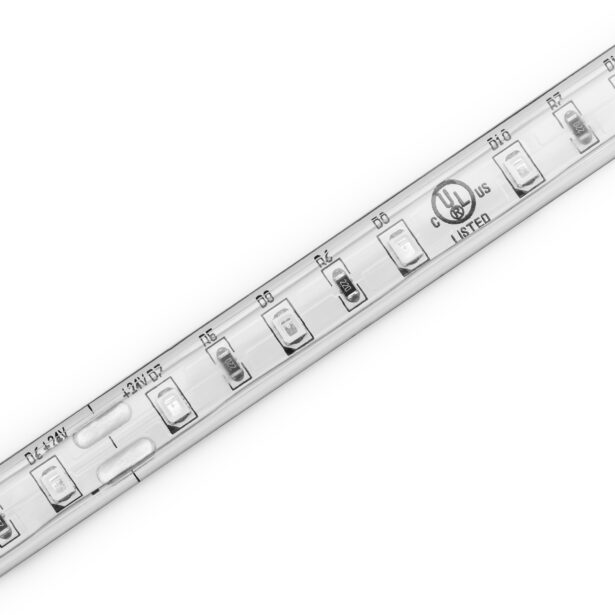

CRN Series | Rubber-Coated Static Color Linear LED Strip Tape
Available in 10 color options, these dedicated-color LED’s represent the highest available level of color-saturation. These systems are simple and economical as they require no control system to operate.
- Dimmable
- 50,000 Hour Life
- UL-Listed for Indoor and Outdoor use
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
Downloads
Spec Sheet
Spec SheetInstallation Instructions
IES Files
- CRN AM – Crayon Amber 24v 1ft
- CRN BL – Crayon Blue 24v 1ft
- CRN GL – Crayon Golden 24v 1ft
- CRN GN – Crayon Green 24v 1ft
- CRN LB – Crayon Light Blue 24v 1ft
- CRN LG – Crayon Light Green 24v 1ft
- CRN PI – Crayon Pink 24v 1ft
- CRN RD – Crayon Red 24v 1ft
- CRN VI – Crayon Violet 24v 1ft
- CRN YL – Crayon Yellow 24v 1ft
Additional Files
Technical Specifications
| Color/Temperature | Red, Green, Blue, Yellow, Pink, Amber, Golden, Light Blue, Light Green, Violet |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Indoor/Outdoor | Indoor/Outdoor |
| Input Voltage | 24V DC |
| Watts per Foot | 3.39W |
| Optic | 120° |
| Max Run Length | 16ft |
| Operating Temperature | -4°F (-20°C) to 113°F (45°C) |
| Cut Intervals | 1.97" (50mm) |
| Tape Width | 0.47" (12mm) |
| Tape Height | 0.16" (4mm) |
| Life Expectancy | 50,000 Hour Life |
| Field Cuttable | Yes |
| Color | Lumens per Foot | Lumens per Watt | |
|---|---|---|---|
| CRN-RD-24V | Red | 165 lm/ft | 48 lm/W |
| CRN-GR-24V | Green | 366 lm/ft | 107 lm/W |
| CRN-BL-24V | Blue | 91 lm/ft | 26 lm/W |
| CRN-YL-24V | Yellow | 128 lm/ft | 37 lm/W |
| CRN-PI-24V | Pink | 220 lm/ft | 64 lm/W |
| CRN-AM-24V | Amber | 256 lm/ft | 75 lm/W |
| CRN-GL-24V | Golden | 366 lm/ft | 107 lm/W |
| CRN-LB-24V | Light Blue | 220 lm/ft | 64 lm/W |
| CRN-LG-24V | Light Green | 420 lm/ft | 123 lm/W |
| CRN-VI-24V | Violet | 110 lm/ft | 32 lm/W |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- CRN — Crayon
2. Color/Temp
- RD — Red
- GR — Green
- BL — Blue
- YL — Yellow
- PI — Pink
- AM — Amber
- GL — Golden
- LB — Light Blue
- LG — Light Green
- VI — Violet
3. Input Voltage
- 24V — 24V DC
Standards and Certifications
Power/Connect Options
2 Wire LED Leads and Connectors
For Single Color LED Products
TB1 Terminal Block Connector
Connects fixtures with separation.
Model
TB1
Material
Nylon
Length
0.63" (15.9mm)
Width
0.63" (15.9mm)
Height
0.63" (15.9mm)
SJB1S-TB1 Terminal Block Connector
Connects fixtures with separation inside a clean enclosure.
Model
SJB1S-TB1
Material
Nylon
Rating
10 Amp, 250 Volt
Length
1.68" (42.6mm)
Width
0.75" (19mm)
Height
0.47" (12mm)
Finish
White Matte
Compatible Products
CH-409
0.688" × 0.5" | Surface
CH-607
0.75" × 0.75" | Angled
CH-011
0.75" × 0.813" | Surface
CH-222
0.938" × 0.563" | Surface / Suspended / Adjustable
CH-016
1.188" × 1.188" | Angled
CH-228-N
1.375" × 1" | Surface / Suspended / Adjustable
CH-217-N
1.938" × 1.5" | Recessed
CH-218-N
1.375" × 1.5" | Surface / Suspended / Adjustable
CH-219-N
1.625" × 1.375" | Wall Mounted
CH-045-R-E
2.56" × 1.38" | Recessed
CH-046-R-E
2" × 1.375" | Surface / Suspended
CH-047-R1-F
3.563" × 1.375" | Recessed
CH-048-R1-F
2.938" × 1.375" | Surface / Suspended
CH-291
3.563" × 1.5" | Suspended Aluminum Channel
CH-027
0.813" × 1.063" | Surface / Suspended
Compatible Power Supplies
ULV96
96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
96 Watt - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
25HE-24V
25 Watt - 24 Volt Universal Dimming
50HE-24V
50 Watt - 24 Volt Universal Dimming Class 2 Power Supply
Compatible Controls & Dimmers
Single Color 1 Zone In-Wall Controller
RFC-A-SC-1ZD-IW-BT-W
Single Color 1 Zone Tabletop Controller
RFC-A-SC-1Z-TT-BT-B
Single Color 4 Zone Handheld Controller
RFC-A-SC-4Z-HH-BT-B
Single Color 1 Zone Handheld Controller
RFC-A-SC-1Z-HH-BT
RF 1 Channel Receiver
RFR-A-1C-8A
Single Color 0-10V 1 Channel Dimmer
0-10V-1CH
Single Color 0-10V 4 Channel Dimmer
0-10V-4CH
Single Color DALI 1 Channel Dimmer
DALI-1CH
RF/Wifi Controller for RF Receivers
RFC-A-WIFI
