ULV36

36 Watt - 24 Volt Class 2 Power Supply

Indoor/Damp Mini Class 2 Power Supply with enclosure. 100–277V Input, with 0-10V, ELV, MLV, DMX and Incandescent dimming.


  • Incandescent, ELV, MLV, or 0-10v dimming
  • Protections: short circuit / over current / over voltage
  • Free air convection cooling
  • Suitable for dry/damp location
  • UL-Listed Class 2

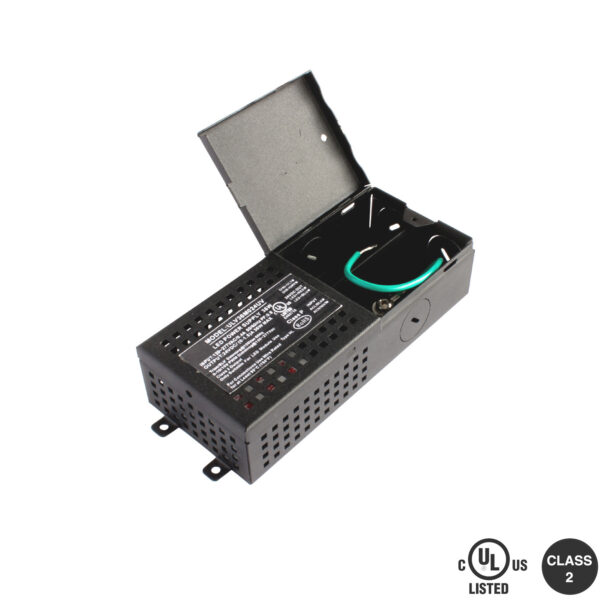

Ulv36 image
Ulv36 image
ULV36 Dimensions
ULV36 Wiring Example

Downloads

Spec Sheet

Spec Sheet

Additional Files

Technical Specifications

Indoor/Outdoor Indoor
Input Voltage 100–277VAC
Operating Temp. -20°F (-29° C) – 158°F (70°C)
Storage Temp. 65°F (16°C) – 85 °F (30 °C)
Dimming Protocol 0-10V, MLV, ELV
Output Power 36W
Width 5.91″
Height 2.52″
Depth 1.42″
Output Voltage 24V DC / Constant Voltage
Minimum Dim Level 5%
Safety Features Short Circuit, Over Current, Over Voltage
Efficency 83%
Life Expectancy 50,000 Hours
Live Voltage Termination Type Bare Wire
Low Voltage Termination Type Bare Wire
Enclosure Width 5.906" (150mm)
Enclosure Height 2.52" (64mm)
Enclosure Depth 1.417" (36mm)
Wiring Compartment Width 2.76" (70mm)
Wiring Compartment Depth 1.34" (34mm)
Wiring Compartment Height 2.344" (60mm)
Startup Time 0.3 Seconds
Encloser Material Powder Coated Steel
Low Voltage Output Quantity 1
Requires Derating No
Type Dimming

Standards and Certifications
