Jagger (Indoor)
JA Series | Corner-Bending Linear LED Strip Tape

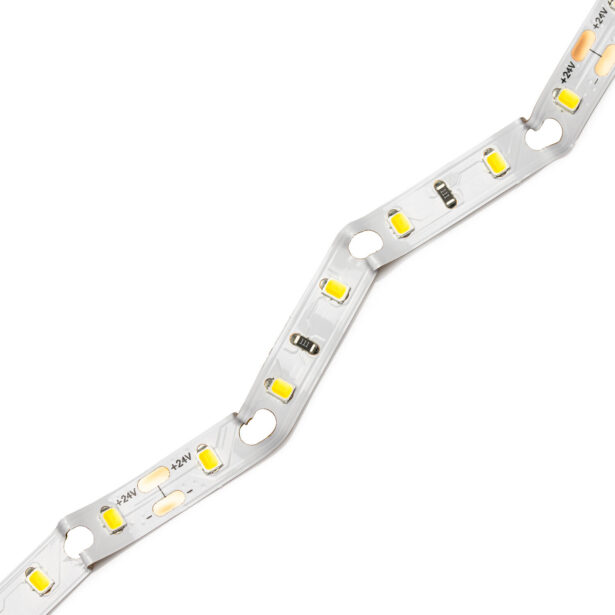

Jagger can bend into nearly any shape. Since it can flex both horizontally and vertically, Jagger is perfect for backlighting shapes and letters used for signage.
- Ideal for Curved Lighting Applications
- Dimmable
- 50,000 Hour Life
- UL-Listed for Indoor Use
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Indoor/Outdoor | Indoor |
| Input Voltage | 24V DC |
| Watts per Foot | 2.2W |
| Optic | 120° |
| Max Run Length | 16ft |
| CRI | 90+ |
| Operating Temperature | -40°F (-40°C) to 113°F (45°C) |
| Cut Intervals | 3.94" (100mm) |
| Tape Width | 0.31" (8mm) |
| Tape Height | 0.04" (1mm) |
| Diode | 2835 |
| Life Expectancy | 50,000 Hour Life |
| Field Cuttable | Yes |
| Bend Direction | Horizontal |
| Bend Radius | 90° |
| JA27K-24V | JA30K-24V | JA35K-24V | JA40K-24V | JA50K-24V | JA65K-24V | |
|---|---|---|---|---|---|---|
| Kelvin | 2700K | 3000K | 3500K | 4000K | 5000K | 6500K |
| Lumens per Foot | 155 lm/ft | 159 lm/ft | 163 lm/ft | 167 lm/ft | 171 lm/ft | 173 lm/ft |
| Lumens per Watt | 70 lm/W | 72 lm/W | 74 lm/W | 75 lm/W | 77 lm/W | 78 lm/W |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- JA27K — Jagger 2700K
- JA30K — Jagger 3000K
- JA35K — Jagger 3500K
- JA40K — Jagger 4000K
- JA50K — Jagger 5000K
- JA65K — Jagger 6500K
2. Input Voltage
- 24V — 24V DC
Standards and Certifications
Power/Connect Options
2 Wire LED Leads and Connectors
For Single Color LED Products
TB1 Terminal Block Connector
Connects fixtures with separation.
Model
TB1
Material
Nylon
Length
0.63" (15.9mm)
Width
0.63" (15.9mm)
Height
0.63" (15.9mm)
SJB1S-TB1 Terminal Block Connector
Connects fixtures with separation inside a clean enclosure.
Model
SJB1S-TB1
Material
Nylon
Rating
10 Amp, 250 Volt
Length
1.68" (42.6mm)
Width
0.75" (19mm)
Height
0.47" (12mm)
Finish
White Matte
Compatible Channels
CH-0004
1.60" × 2.01" | Trimless & Mud-In
CH-0013
0.72" × 4.68" | Trimless & Mud-In
CH-0012
0.72" × 5.26" | Trimless & Mud-In
CH-0011
0.72" × 3.78" | Trimless & Mud-In
CH-0009
2.57" × 1.10" | Trimless & Mud-In
CH-0008
1.38" × 3.82" | Trimless & Mud-In
CH-0007
3.72" × 1.39" | Trimless & Mud-In
CH-0006
2.40" × 1.46" | Trimless & Mud-In
CH-0005
2.48" × 1.03" | Trimless & Mud-In
CH-0003
2.42" × 0.55" | Trimless & Mud-In
CH-0001
2.311" × 0.55" | Trimless & Mud-In
Compatible Power Supplies
Mini ULV96
96 Watt–24 Volt | Class 2 Power Supply
Mini HLV96
96 Watt–24 Volt | Class 2 Power Supply
ULV96
96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
96 Watt - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
25HE-24V
25 Watt - 24 Volt Universal Dimming
50HE-24V
50 Watt - 24 Volt Universal Dimming Class 2 Power Supply
Compatible Controls & Dimmers
Single Color 1 Zone In-Wall Controller
RFC-A-SC-1ZD-IW-BT-W
Single Color 1 Zone Tabletop Controller
RFC-A-SC-1Z-TT-BT-B
Single Color 4 Zone Handheld Controller
RFC-A-SC-4Z-HH-BT-B
Single Color 1 Zone Handheld Controller
RFC-A-SC-1Z-HH-BT
RF 4 Channel Receiver
RFR-A-4C-5A
RF 1 Channel Receiver
RFR-A-1C-8A
Single Color 0-10V 1 Channel Dimmer
0-10V-1CH
Single Color 0-10V 4 Channel Dimmer
0-10V-4CH
Single Color DALI 1 Channel Dimmer
DALI-1CH
RF/Wifi Controller for RF Receivers
RFC-A-WIFI
