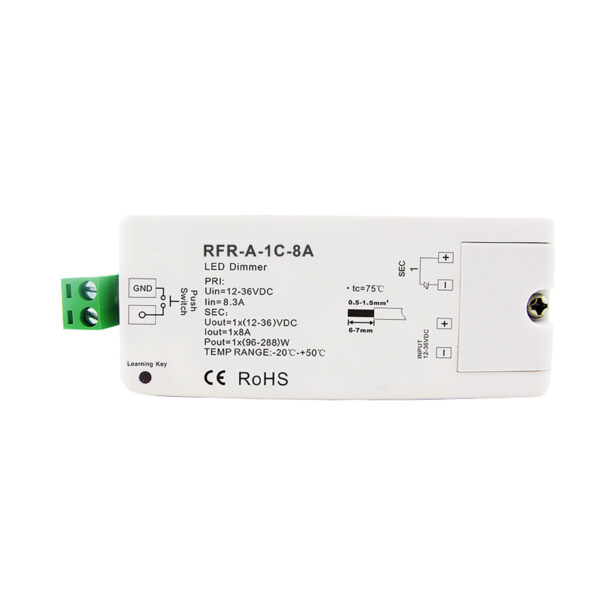

RF 1 Channel Receiver
RFR-A-1C-8A
The RFR-A-1C-8A is a super compact 1-zone RF receiver perfect for anywhere you need to add discreet control.
- Single-Color RF Receiver
- Compatible With Multiple RF Controllers
- Compatible with RFC-A series controllers
- On-Board Learning Key for Zone Assignment
- Compatible With RFC-A-WIFI for Mobile App Control
Downloads
Technical Specifications
| Series | RFR |
| Input Voltage | 12–24V DC |
| Output | 1 × 8A |
| Constant Voltage | Yes |
| Device Color | White |

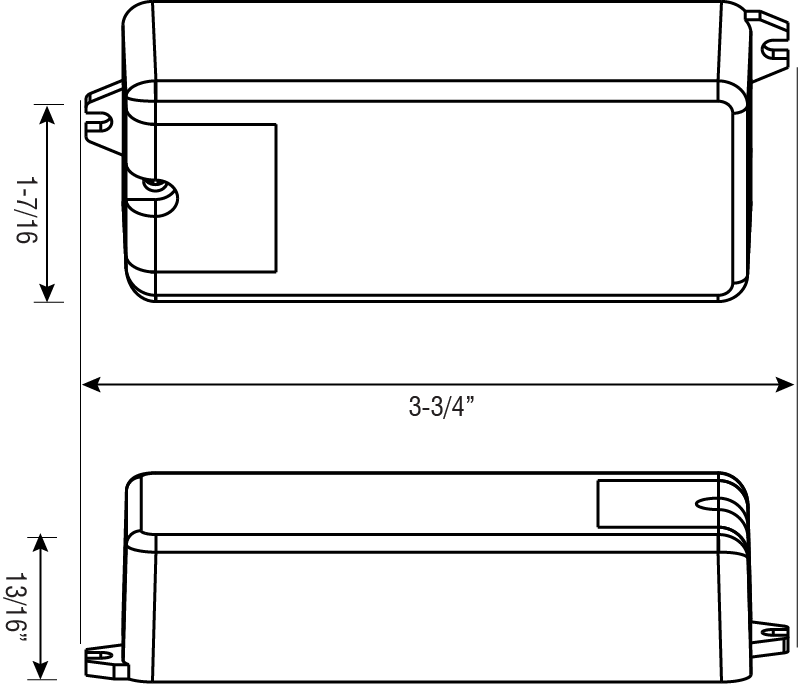

| Length | 3.75” (95.25mm) |
| Width | 1.43” (36.51mm) |
| Height | 0.81” (20.63mm) |
| IP Rating | IP20 |
| Dimming Range | 1% – 100% |
| RF Range | Up to 50ft |
| Operating Temp. | -4°F (-20°C) to 122°F (50°C) |
| Storage Temp. | -4°F (-20°C) to 167°F (75°C) |
| Indoor/Outdoor | Indoor |
| Input Protocol | RF |
| Output Protocol | PWM |
| Channels of Control | 1 |
| Data Connection Method | Wireless |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RFR
- RFR — RFR
2. A
- A — A
3. 1C
- 1C — 1C
4. 8A
- 8A — 8A
Standards and Certifications
