Single Color 1 Zone Tabletop Controller


The RFC-A-CCT-1Z-TT-BT-B is a stylish battery-operated table top RF controller for CCT systems.

  • Dimming and Color Tuning via Rotary Knob
  • On/Off Push-Knob
  • Compatible With RFR-A Series Receivers
  • Can Control Multiple RF Receivers
  • Battery Operated (Included)

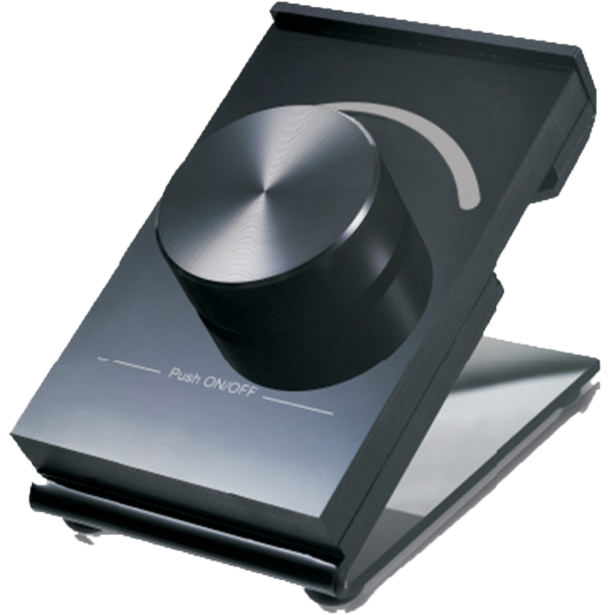

Rfc a cct 1z tt bt b image

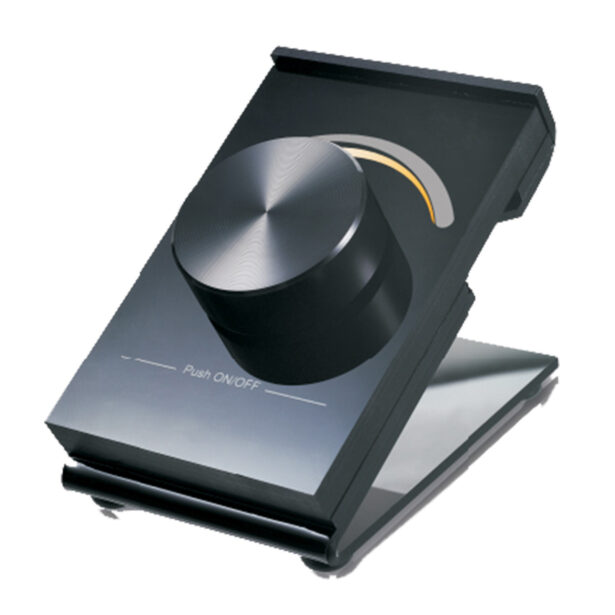

Rfc a cct 1z tt bt b image

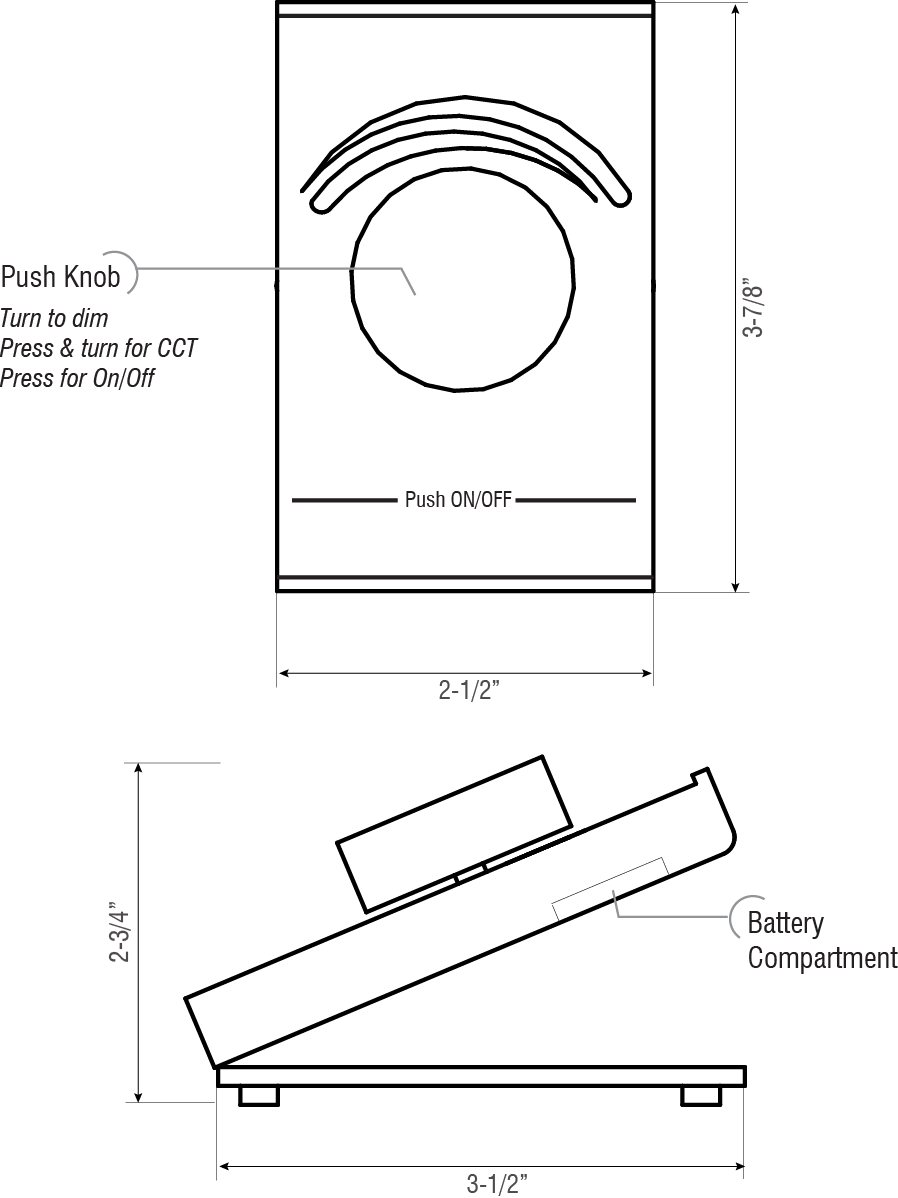

Rfc a cct 1z tt bt b dimensions


Technical Specifications

Overall Dimensions (L*W*D) 3.88″ × 2.50″ × 2.75″
Input Voltage 3V DC
Indoor/Outdoor Indoor
Output Protocol RF (434MHz/868MHz)
Channels of Control 1
Data Connection Method Wireless
Requires Programming Boolean No
Zones 1
Customer Input Method Dial
Operating Temp. -4°F (-20°C) to 122°F (50°C)
Storage Temp. 65°F (18°C) to 85°F (29°C)

Standards and Certifications

Compatible Fixtures

Compatible Tapes

Compatible Specialty Tapes
