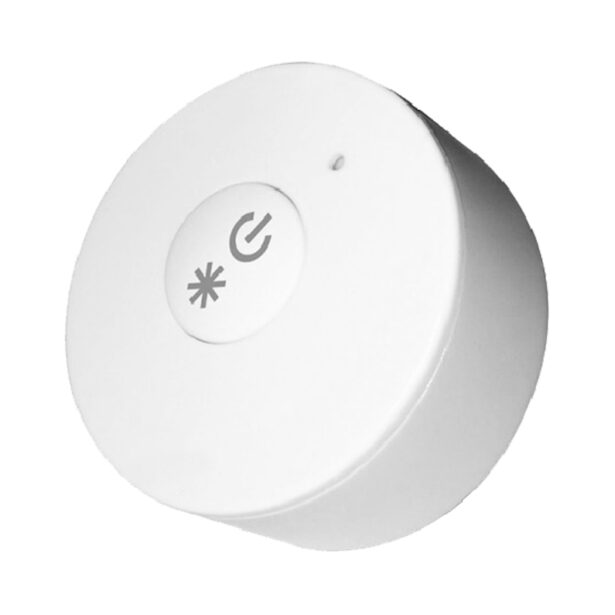

RF 1 Channel 1 Zone Handheld Controller
RFC-A-SC-1Z-HH-BT
The RFC-A-SC-1Z-HH-BT is a micro-sized single zone RF handheld controller allowing for discreet control.
- Single Color RF Controller
- Compatible With RFR-A Series Receivers

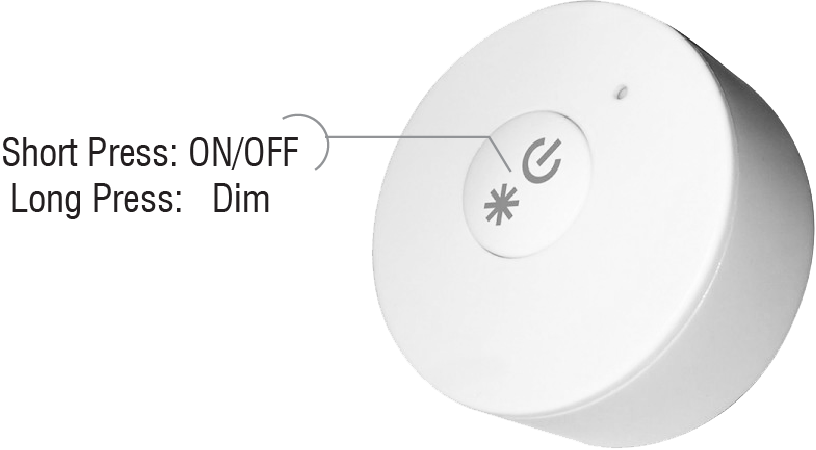

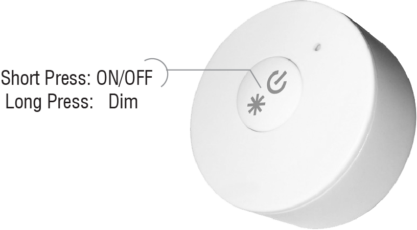

- Dimming and On/Off From Single Button
- Multiple Controllers Can Control a Single Receiver
- On-Board Learning Key for Zone Assignment
Downloads
Technical Specifications
| Input Voltage | 3V DC |
| Device Color | White |

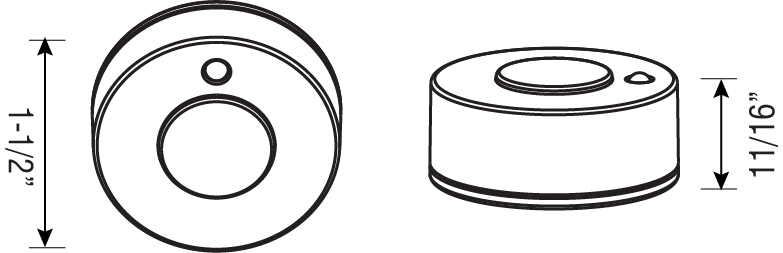

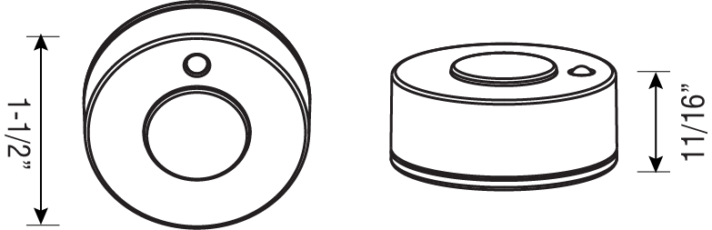

| Length | 1.5” (38.10mm) |
| Width | 0.62” (15.87mm) |
| Height | 0.68” (17.46mm) |
| IP Rating | IP20 |
| Dimming Range | 1% – 100% |

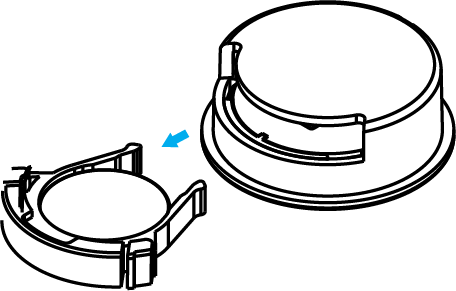

| Battery Compartment | CR2025 (Included) |
| RF Wireless Control | Yes |
| Operation Frequency | 434MHz / 868MHz / 915MHz |
| RF Range | Up to 50ft |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) to 122°F (50°C) |
| Indoor/Outdoor | Indoor |
| Channels of Control | 1 |
| Data Connection Method | Wireless |
| Requires Programming Boolean | No |
| Zones | 1 |
| Customer Input Method | Button |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RFC
- RFC — RFC
2. A
- A — A
3. SC
- SC — SC
4. 1Z
- 1Z — 1Z
5. HH
- HH — HH
6. BT
- BT — BT
Standards and Certifications
