Single Color 0-10V 1 Channel Dimmer

0-10V-1CH
Download Spec SheetContact Us Add to Project

The 0-10V-1CH is a single channel 0-10 volt secondary-side dimmer allowing you to convert any electronic or PWM driver to use 0-10 volt control.


  • 1-Channel 0-10V Dimming Module
  • 0-100% Logarithmic Dimming Range
  • 256 Dim Increments for Smooth Transitions
  • Analog Dim Driver With 0-10V Signal Input
  • PWM Output

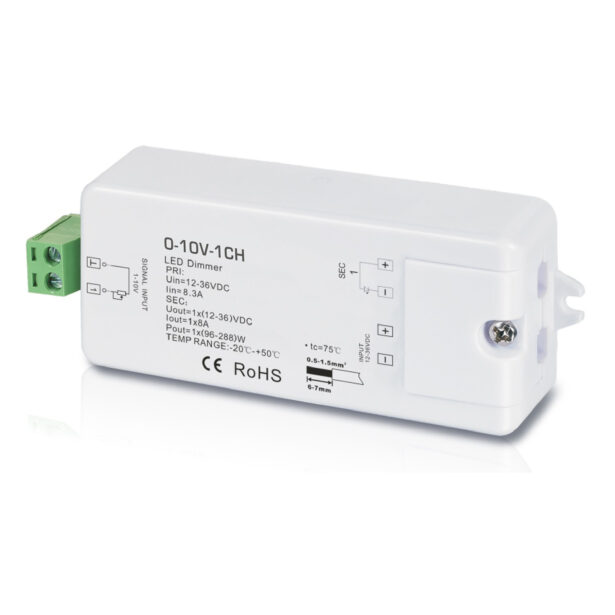

0 10v 1ch image
0 10v 1ch image

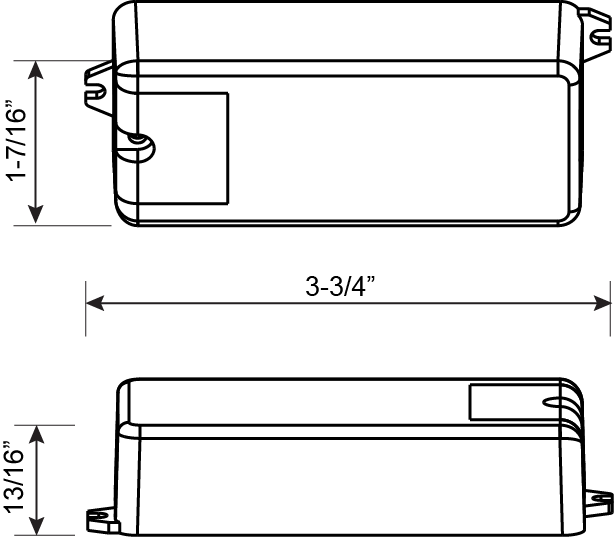

0-10V-1CH Dimensions

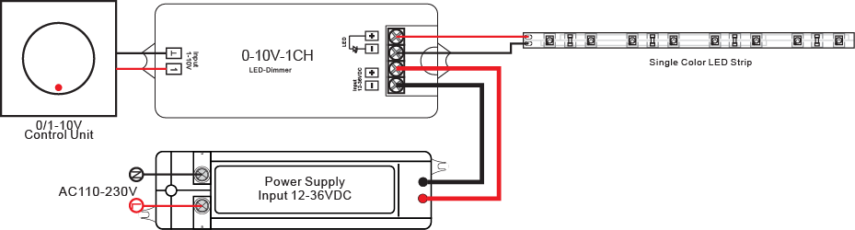

0 10v 1ch wiring

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

Warranty

Technical Specifications

Series 0-10V-1CH
Input Voltage 12–24V DC
Output 1 × 8A
Constant Voltage Yes
Device Color White
Length 3.75” (95.25mm)
Width 1.43” (36.51mm)
Height 0.81” (20.63mm)
IP Rating IP20
Dimming Range 0% – 100%
Dim Increments 0–255
Dimming Standard PWM
Operating Temp. -4°F (-20°C) to 122°F (50°C)
Storage Temp. -4°F (-20°C) to 167°F (75°C)
Indoor/Outdoor Indoor
Input Protocol 0 -10V
Output Protocol PWM
Channels of Control 1
Data Connection Method Screw Terminal
Wire Termination Types Screw Terminal
Requires Programming Boolean No

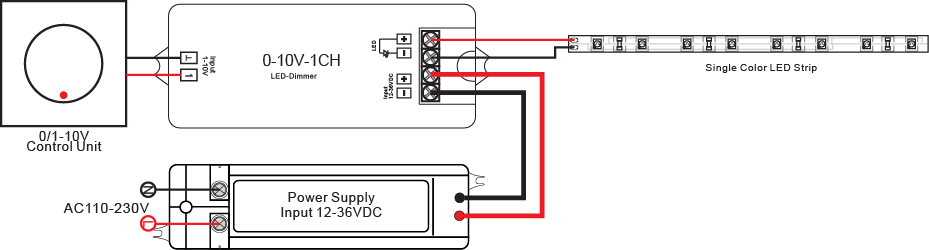

image 0-10V-1CH Dimensions image 0-10V-1CH wiring
