24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
The 24PW-24V is the most economical power supply in our line-up. For use with in-line accessory dimmers only.
- Plug-in Electronic Power Supply
- Constant Voltage
- Dimmable on Secondary Side
- Overload and Short Circuit Protection With Auto-Reset
- UL-Listed for Indoor Use
- Class 2
Downloads
Technical Specifications
| Indoor/Outdoor | Indoor |
| Input Voltage | 110-240V AC |
| Operating Temp. | -20°F (-29° C) – 140°F (60°C) |
| Storage Temp. | 65°F (18°C) to 85°F (29°C) |
| Output Power | 24W |

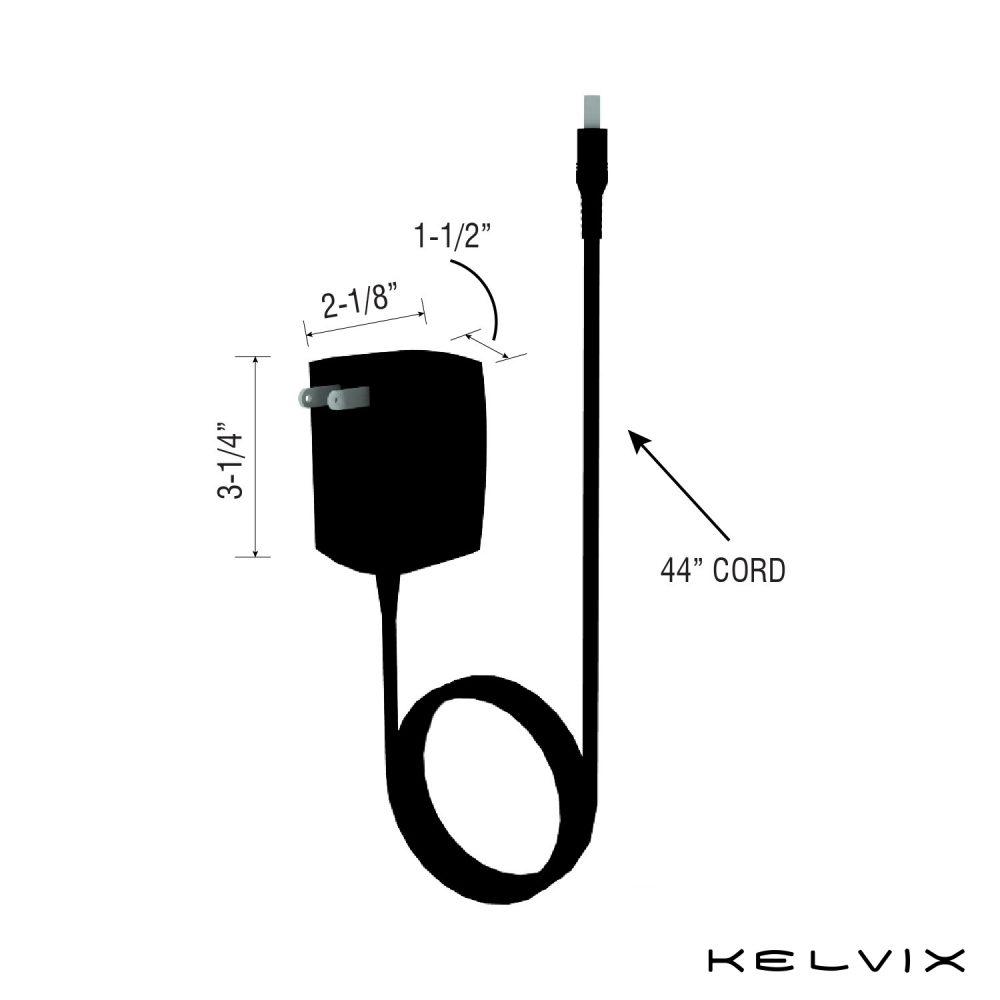

| Width | 2.13" |
| Height | 3.25" |
| Depth | 1.5" |
| Output Voltage | 24V DC / Constant Voltage |
| Safety Features | Overload and Short Circuit Protection With Auto-Reset |
| Live Voltage Termination Type | Wall Plug |
| Low Voltage Termination Type | Barrel DC Jack |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. 24PW
- 24PW — 24PW
2. 24V
- 24V — 24V
Standards and Certifications
