HLV192

192 Watt (2x96W) - 24 Volt Class 2 Power Supply

IP66 Outdoor Dual Output (2x96W) Universal Power Supply with 0-10V, ELV, MLV, DMX, and Incandescent dimming. 100–277V Input


  • Incandescent, ELV, MLV, or 0-10V Dimming
  • Two Independent 0-10V Inputs
  • Protections: Short Circuit / Over Current / Over Voltage
  • Free Air Convection Cooling
  • UL-Listed for Indoor and Outdoor Use
  • Dry/Damp/Wet Rated
  • Class 2

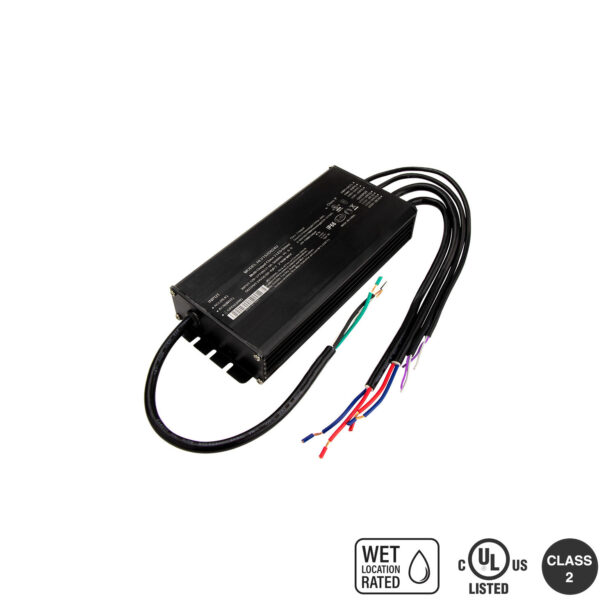

Hlv192 image 520x520 1000x1000
Hlv192 image 520x520 1000x1000

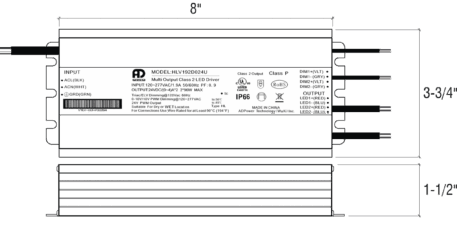

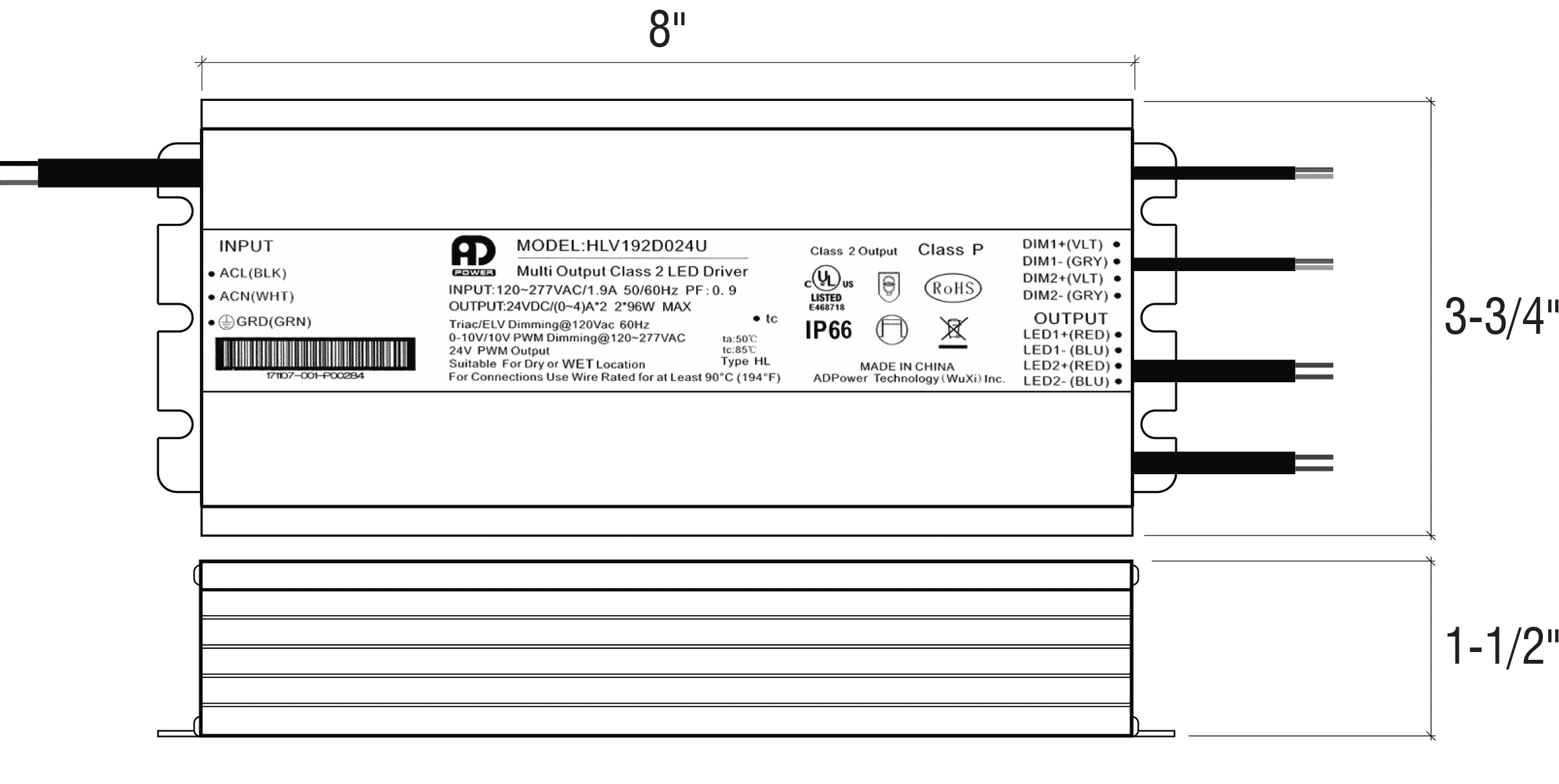

Hlv192 dimensions Scroll
HLV192 Wiring Example

Downloads

Spec Sheet

Spec Sheet

Additional Files

Technical Specifications

Indoor/Outdoor Indoor/Outdoor
Input Voltage 100–277VAC
Operating Temp. -20°F (-29° C) – 158°F (70°C)
Storage Temp. 65°F (18°C) to 85°F (29°C)
Dimming Protocol 0-10V, DMX512, MLV, ELV
Output Power 192W (2 × 96W)
Width 8"
Height 3.75"
Depth 1.5"
Output Voltage 24V DC / Constant Voltage
Minimum Dim Level 5%
Safety Features Short Circuit, Over Current, Over Voltage
Efficency 90%
Life Expectancy 50,000 Hours
Live Voltage Termination Type Bare Wire
Low Voltage Termination Type Bare Wire
Enclosure Width 8" (202mm)
Enclosure Height 3.75" (96mm)
Enclosure Depth 1.5" (39mm)
Startup Time 500 ms
Encloser Material Powder Coated Steel
Low Voltage Output Quantity 2
Requires Derating No
Type Dimming
