RF/Wifi Controller for RF Receivers

RFC-A-WIFI
Download Spec SheetContact Us Add to Project

The RFC-A-WIFI is the perfect way to add wifi control to any RF system.


  • For Controlling RF Receivers via Mobile Device
  • Can be Used with Multiple RF/Wi-Fi Controllers
  • Compatible with RFC-A Series Receivers
  • Compatible with iOS and Android Mobile Apps
  • Connects Through a Router or Directly to WiFi Device

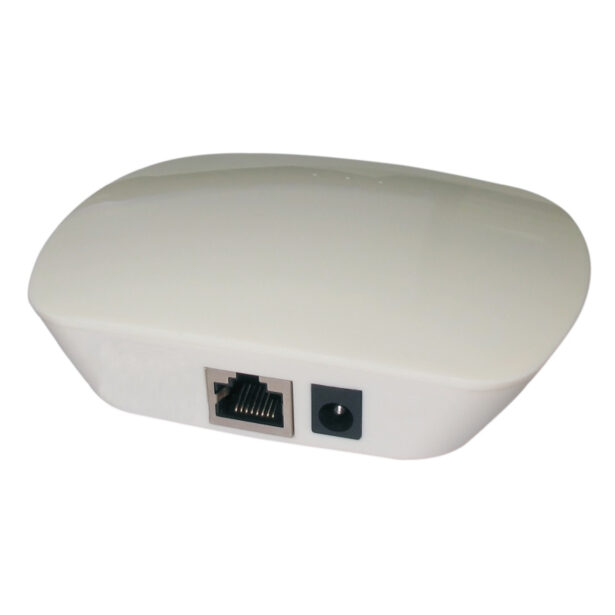

RFC A WIFI Hero
RFC A WIFI Hero

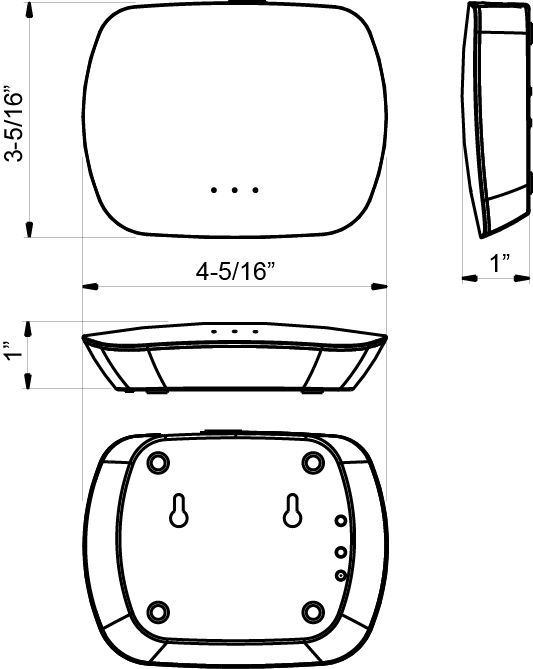

RFC-A-WIFI Dimensions
RFC-A-WIFI wiring

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

Warranty

Technical Specifications

Series RFC
Input Voltage 12V DC
Device Color White
Length 4.93” (125.41mm)
Width 3.93” (100.01mm)
Height 1.00” (25.40mm)
IP Rating IP20
Operation Frequency 869.5MHz
RF Range Up to 50ft
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -13°F (-25°C) to 122°F (50°C)
Indoor/Outdoor Indoor
Input Protocol Mobile App
Data Connection Method Wireless, Ethernet (optional)
Requires Programming Boolean No
Zones 7
Customer Input Method Mobile App
Network Connectivity WiFi, Ethernet
image Rfc a wifi dimensions
