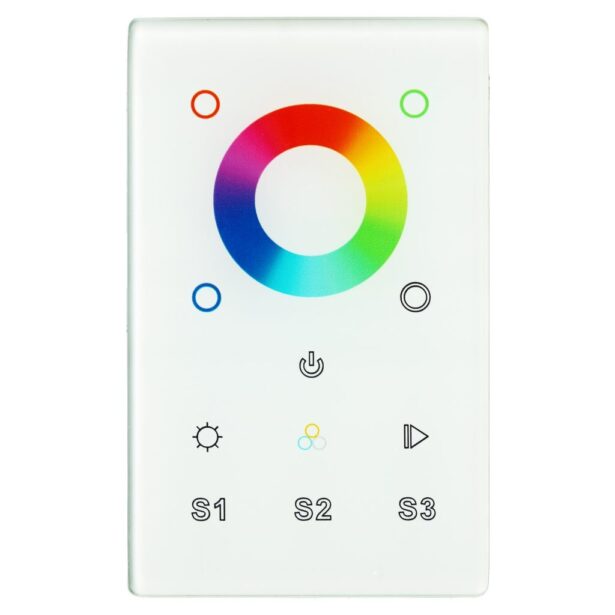

RGBW 3 Scene In-Wall Controller
RFC-A-RGBW-3S-IW-W
The RFC-A-RGBW-3S-IW-W is a stylish 3-Scene RF controller for RGB or RGBW systems.
- Controls One Zone and Saves up to Three Scenes
- Compatible With a Standard 1-Gang Electrical Box
- Compatible With RFR-A Series Receivers
- Individual Control of White, Red, Green, & Blue Channels
- Can Controller Multiple RF Receivers
- Sensitive Glass Touch Panel
- Ten Preset Modes
Downloads
Technical Specifications
| Overall Dimensions (L*W*D) | 4.75″ × 2.94″ × 1.13″ |
| Input Voltage | 12-24V DC |
| Constant Voltage | Constant Voltage |
| Indoor/Outdoor | Indoor |
| Output Protocol | RF (434MHz/868MHz) |
| Channels of Control | 4 |
| Data Connection Method | Wireless |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Scenes | 3 |
| Zones | 1 |
| Customer Input Method | Touch Panel |
| Operating Temp. | -4°F (-20°C) to 122°F (50°C) |
| Storage Temp. | 65°F (18°C) to 85°F (29°C) |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RFC
- RFC — RFC
2. A
- A — A
3. RGBW
- RGBW — RGBW
4. 3S
- 3S — 3S
5. IW
- IW — IW
6. W
- W — W
Standards and Certifications
