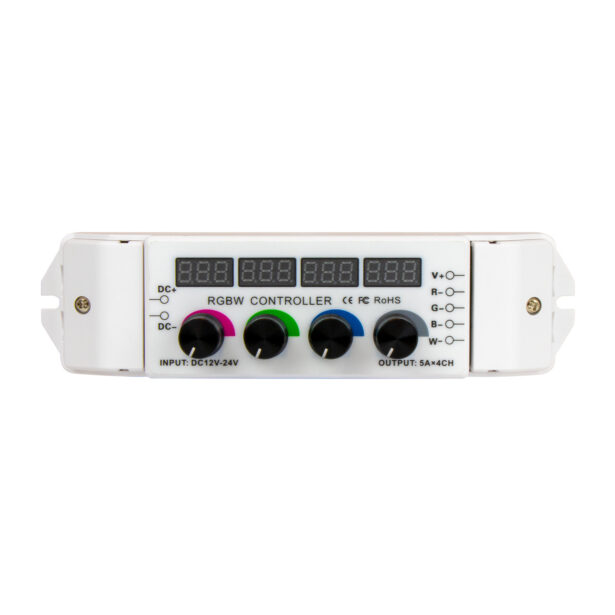

RGBW 4 Channel Controller
RGBW-QC-4C
Need to create your own static colors with RGBW? Look no further. Introducing a simplified controller that anyone can use! Simply adjust each knob to mix colors. Everything should be this simple.
- Simple and Quick 4-Channel RGBW Color Mixing
- Direct Dial 0-255 Intensity Values for Red, Green, Blue, and White
- Smooth 0-100% Intensity Adjustment With Digital Display
Downloads
Spec Sheet
Spec SheetWarranty
Technical Specifications
| Overall Dimensions (L*W*D) | 1.81" × 6.94" × 1.75" |
| Input Voltage | 12-24VDC |
| Output | 4 × 5A |
| Constant Voltage | Constant Voltage |
| Indoor/Outdoor | Indoor |
| Output Protocol | PWM |
| Channels of Control | 4 |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Customer Input Method | Dial |
| Operating Temp. | -4°F (-20°C) to 122°F (50°C) |
| Storage Temp. | 65°F (18°C) to 85°F (29°C) |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RGBW
- RGBW — RGBW
2. QC
- QC — QC
3. 4C
- 4C — 4C
Standards and Certifications
