Brett 502

Linear Fixture

Download Spec Sheet Contact Us Add to Project

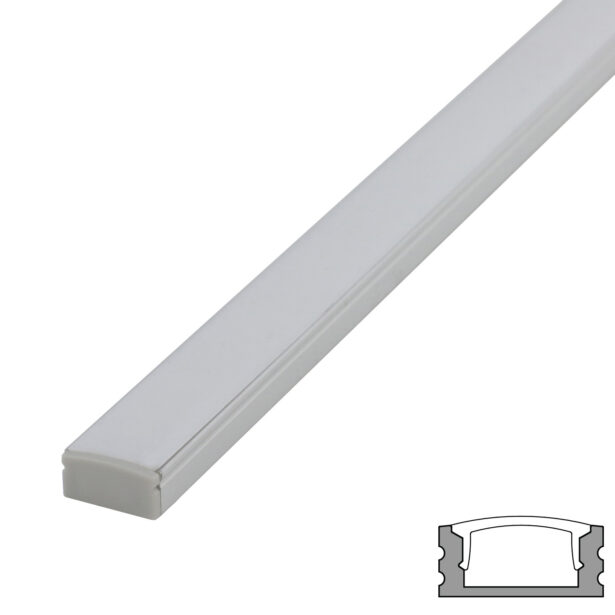

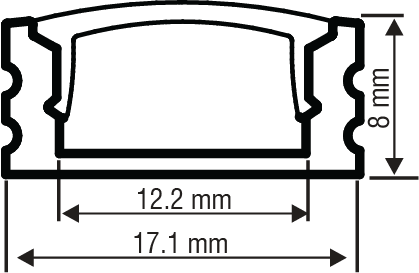

The BRETT 502 is a surface mount linear fixture that is simple to specify as a single line item. Using our CH-502 mounting profile, the BRETT 502 is available in unlimited lengths with a seamless lens option when used in direct-view applications.

100 to 1000 Lumens per Foot
Field Replaceable Light Source
50,000 Hour Lamp Life
Dimmable to 1%
Anodized Finish
Adjustable-Length Power Feed Included

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

IES Files

Photometric Files

Additional Files

Technical Specifications

Length	Unlimited (inches)
Color/Temperature	2400K, 2700K, 3000K, 3500K, 4000K, 5000K, RGBW
Dimming Protocol	PWM, Triac, 0-10V
Finish*	Silver
Input Voltage	24V DC
Watts per Foot	Ranges from 1.9W/ft to 6.7W/ft
Lumen per Foot	Ranges from 100+ to 1000+ lm/ft
Lumens per watt	Ranges from 65 to 158 lm/W
Beam Angle	120°
Max Run Length	Ranges from 14ft to 50ft
CRI	90+
Operating Temp.	-40°F (-40°C) to 149°F (65°C)

* Customizable—Consult Factory

Specify Your Product

Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.

Product Code:

Make a selection in each category to complete your product code.

1. Item
