Melissa 006

Linear Fixture

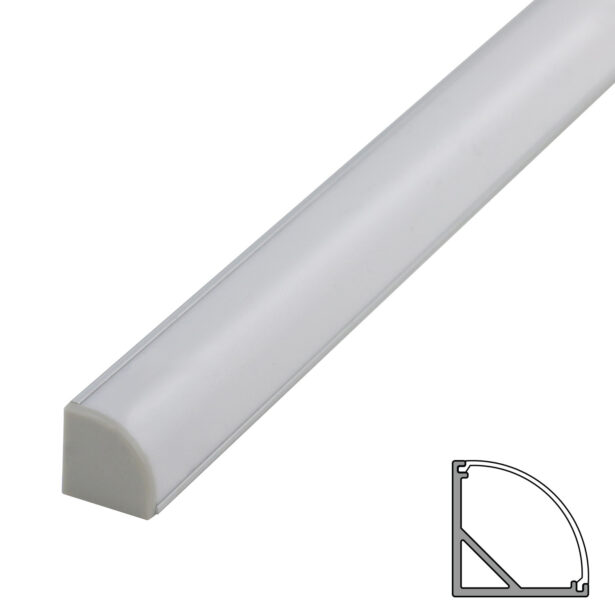

The MELISSA 006 is an angled surface mount linear fixture. Using our CH-006 mounting profile, the MELISSA 006 is simple to specify as a single line item.

  • 100 to 1000 Lumens per Foot
  • Field Replaceable Light Source
  • 50,000 Hour Lamp Life
  • Dimmable to 1%
  • Anodized Finish
  • Adjustable-Length Power Feed Included
Melissa 006 image
Melissa 006 image

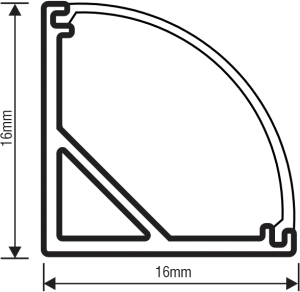

Ch 006 high 1500x1500px
Melissa 006 accessories
Melissa 006 rays


Technical Specifications

Length Unlimited (inches)
Color/Temperature 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, RGBW
Dimming Protocol PWM, Triac, 0-10V
Finish* Silver
Input Voltage 24V DC
Watts per Foot Ranges from 1.9W/ft to 6.7W/ft
Lumen per Foot Ranges from 100+ to 1000+ lm/ft
Lumens per watt Ranges from 65 to 158 lm/W
Optic 120°
Max Run Length Ranges from 14ft to 50ft
CRI 90+
Operating Temp. -40°F (-40°C) to 149°F (65°C)

* Customizable—Consult Factory

* Customizable—Consult Factory

Standards and Certifications

Compatible Tapes

Compatible Power Supplies

Compatible Controls & Dimmers

Compatible Accessories
