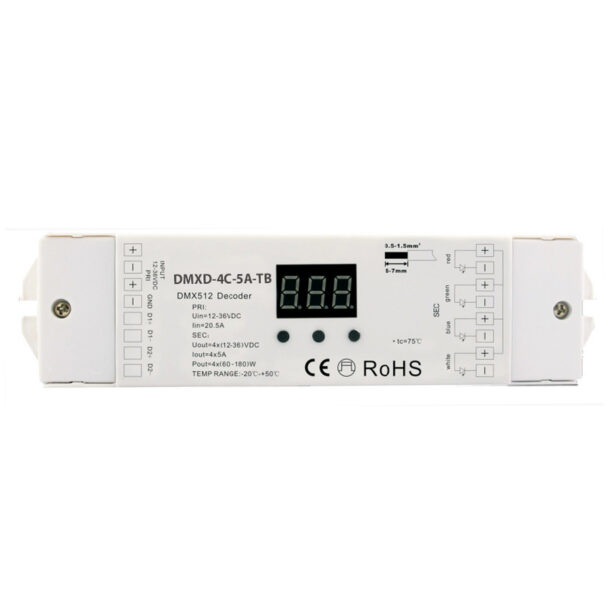

DMX 4 Channel Decoder

DMXD-4C-5A-TB

Download Spec Sheet Contact Us Add to Project

The DMXD-4C-5A-TB Is a great DMX decoder with the perfect blend of functionality and features.

Rgbw 4-Channel DMX Decoder
Standard DMX 512 Compliant Interface
Digital Numeric Display for DMX Address Assignment
Adjustable Pulse Width Modulation Frequency
Switchable Logarithmic or Linear Dimming

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

Technical Specifications

Series	DMXD
Input Voltage	12-24V DC
Output	4 × 5A
Constant Voltage	Yes
Length	7” (177.8mm)
Width	1.81” (46.04mm)
Height	0.69” (17.46mm)
IP Rating	IP20
Dimming Range	0.4% – 100%
Operating Temperature	-13°F (-25°C) to 122°F (50°C)
Storage Temperature	-4°F (-20°C) to 167°F (75°C)
Input Protocol	DMX512
Output Protocol	PWM
Channels of Control	4
Data Connection Method	Screw Terminal
Wire Termination Types	Screw Terminal
Requires Programming Boolean	No
Indoor/Outdoor	Indoor
