DMX RGBW 4 Channel Decoder
Discontinued - DMX-24506
DISCONTINUED

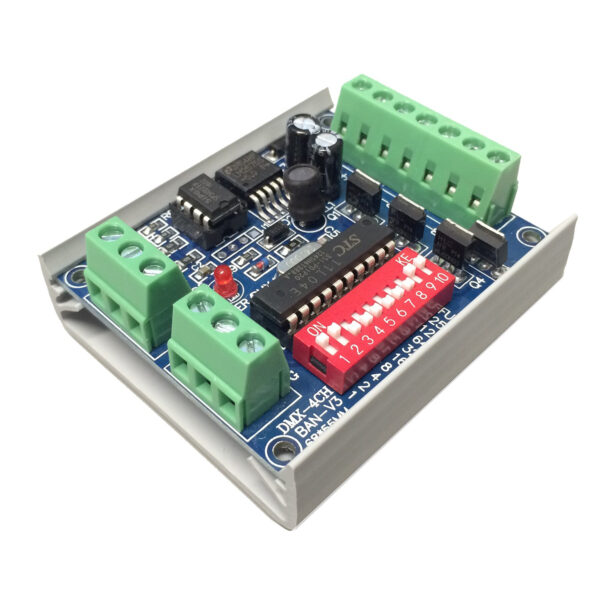

The DMX-24506 is a compact 4-Channel DMX decoder designed to fit perfectly in our ULV96 power supply or anywhere space is limited.
- RGBW 4-Channel DMX Decoder
- Standard DMX 512 Compliant Interface
- Dip Switch DMX Address Assignment
- Non-conductive, Rigid Extruded PVC Channel
- Adhesive Backing for Easy Installation
Downloads
Installation Instructions
Warranty
Technical Specifications
| Series | DMX-24506 |
| Input Voltage | 5-24V DC |
| Output | 4 × 4A |
| Constant Voltage | Yes |
| Length | 2.75” (69.85mm) |
| Width | 2.31” (58.74mm) |
| Height | 1.13” (28.58mm) |
| PCB Dimensions | 2.69” (68.26mm) × 2.19” (55.56mm) × 0.63” (15.88mm) |
| IP Rating | IP20 |
| Operating Temperature | -4°F (-20°C) to 140°F (60°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Indoor/Outdoor | Indoor |
| Input Protocol | DMX512 |
| Output Protocol | PWM |
| Channels of Control | 4 |
| Data Connection Method | Screw Terminal |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
Your Product Code
This product is discontinued. Contact us for help.
