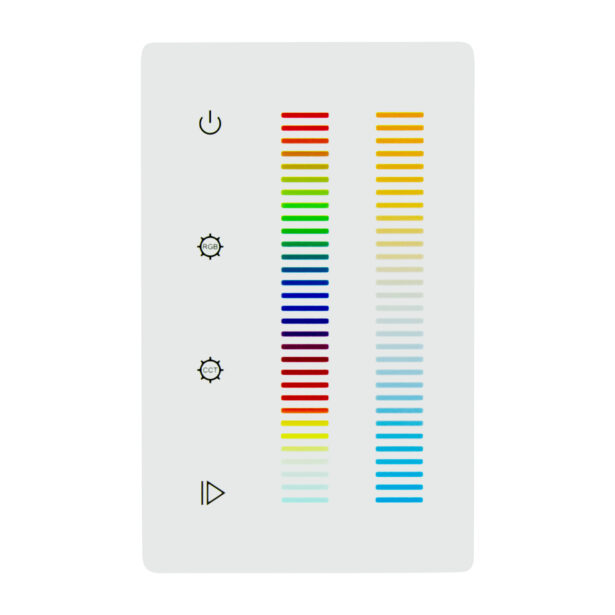

DMX RGB/CT 1 Zone In-Wall Controller

DMXC-5C-1Z-IW-WH

Download Spec Sheet Contact Us Add to Project

The DMXC-5C-1Z-IW-WH is the ideal DMX decoder to control one zone of RGB/CT.

Controls One Zone of RGB/CT

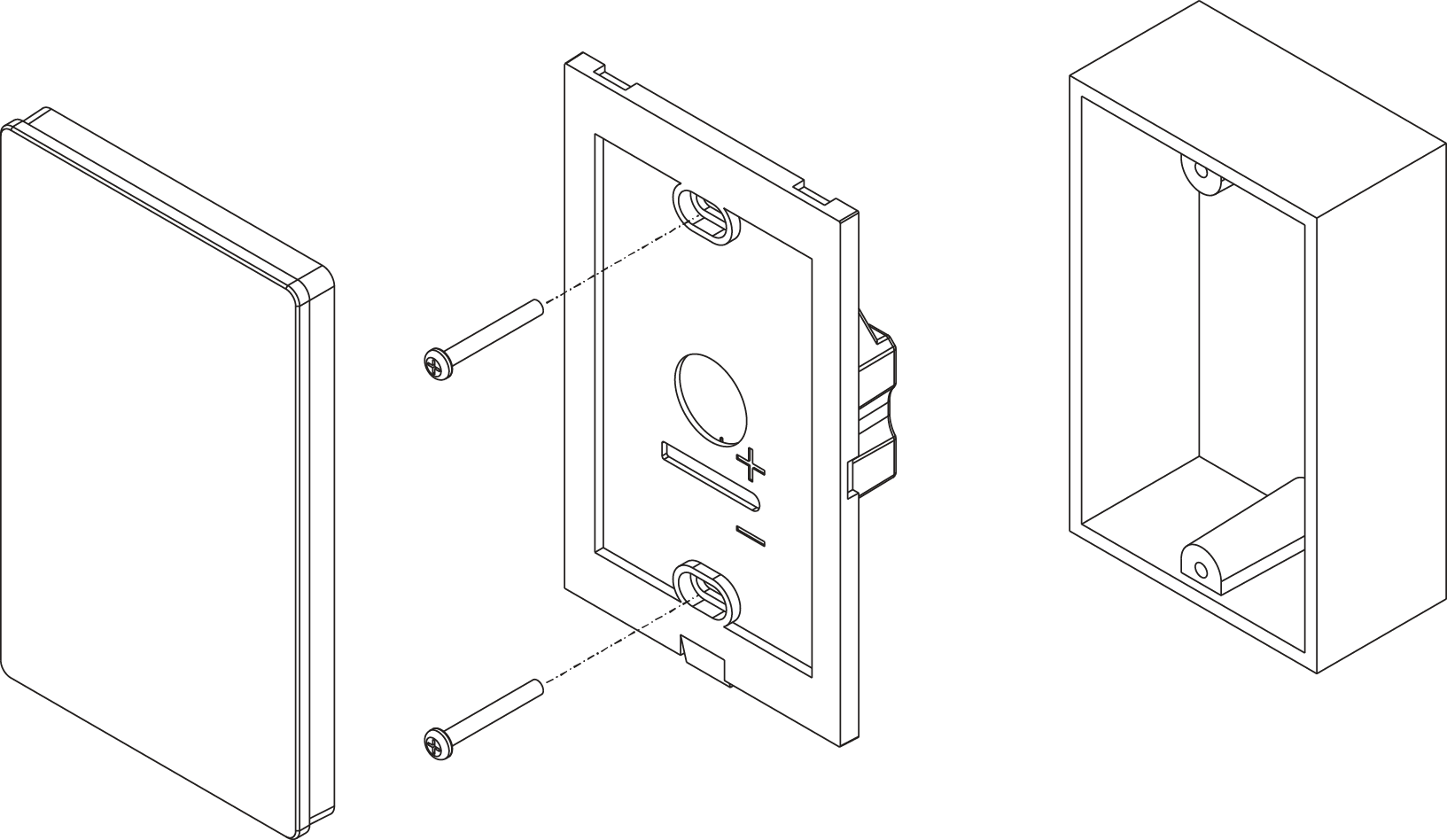

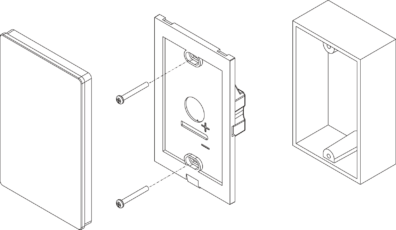

Compatible with Standard 1-Gang Electrical Box
Compatible with DMXD-5C-8A-UNV and DMX-26506 Decoders
Individual Control of R, G, B, and CT
Can Control Multiple DMX Decoders
Sensitive Glass Touch Panel
Ten Preset Modes

Downloads

Spec Sheet

Warranty

Warranty Info

Technical Specifications

Series	DMXC
Input Voltage	12-24V DC
Device Color	White
DMX Wired Control	Yes
DMX Channels	5
Length	2.93” (74.61mm)
Width	4.75” (120.65mm)
Height	1.18” (30.16mm)
IP Rating	IP20
Dimming Range	0.4% – 100%
Color Touch Slide	Yes
Operating Temperature	32°F (0°C) to 104°F (40°C)
Storage Temperature	-13°F (-25°C) to 122°F (50°C)
Indoor/Outdoor	Indoor
Input Protocol	DMX512
Output Protocol	DMX512
Channels of Control	5
Total Controllable Universes	1
Data Connection Method	Screw Terminal
Wire Termination Types	Screw Terminal
Requires Programming Boolean	No
Zones	1
Customer Input Method	Touch Panel
