DMX RGBW 6 Channel Decoder

DMX-26506

Download Spec Sheet Contact Us Add to Project

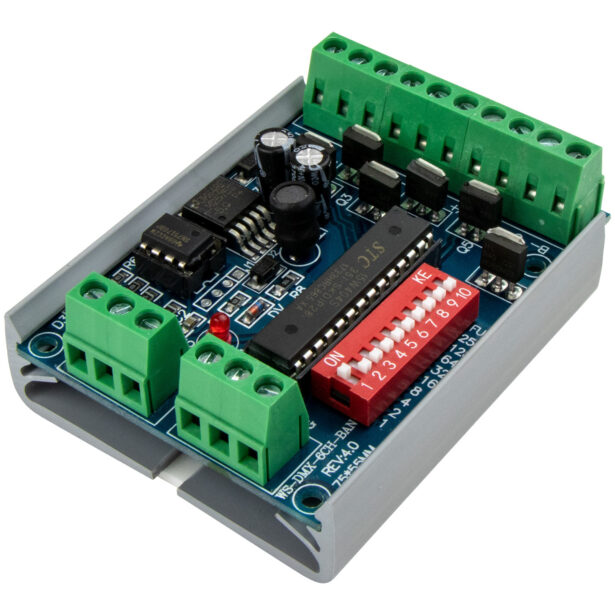

The DMX-26506 is a compact 6-Channel DMX decoder designed to fit perfectly in our ULV96 power supply or anywhere space is limited.

RGBW 6-Channel DMX Decoder
Standard DMX 512 Compliant Interface
Dip Switch DMX Address Assignment
Non-conductive, Rigid Extruded PVC Channel
Adhesive Backing for Easy Installation

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

Technical Specifications

Series	DMX-26506
Input Voltage	5-24V DC
Output	6 × 4A
Constant Voltage	Yes

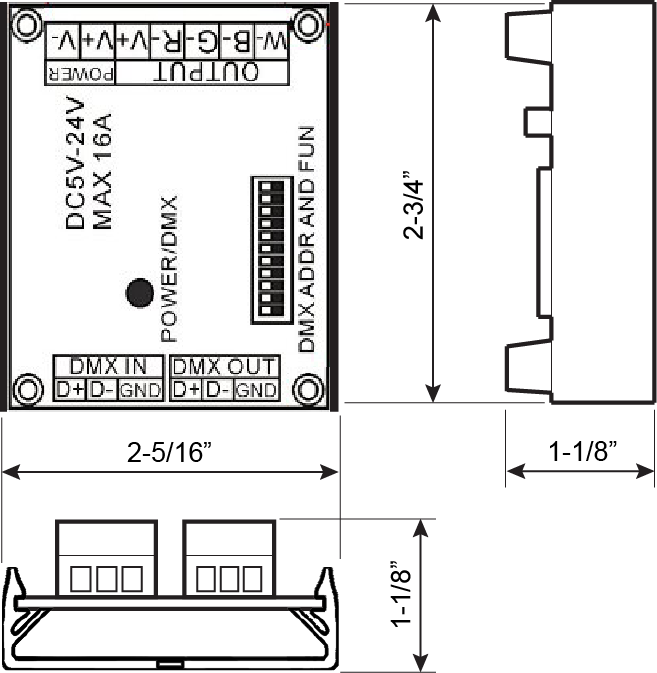

Length	2.75” (69.85mm)
Width	2.31” (58.74m
Height	1.13” (28.58mm)
PCB Dimensions	2.69” (68.26mm) × 2.19” (55.56mm) × 0.63” (15.88mm)
IP Rating	IP20
Operating Temperature	-4°F (-20°C) to 140°F (60°C)
Storage Temperature	-4°F (-20°C) to 140°F (60°C)
Channels of Control	6
Data Connection Method	Screw Terminal
Wire Termination Types	Screw Terminal
Requires Programming Boolean	No
Indoor/Outdoor	Indoor
Input Protocol	DMX512
Output Protocol	PWM
