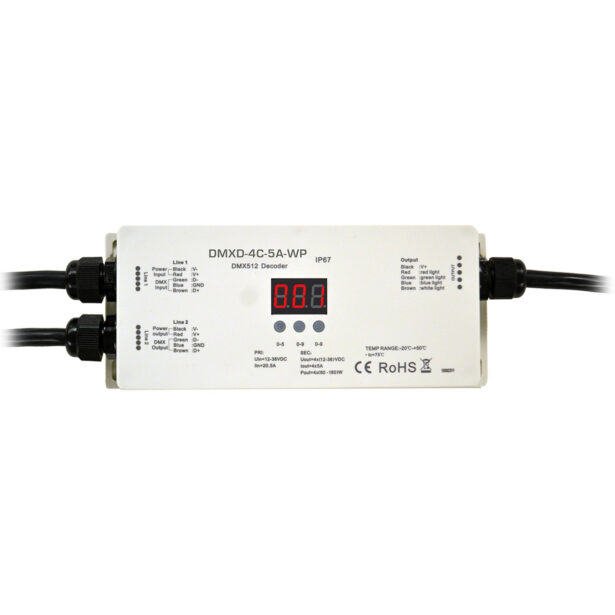

DMX 4 Channel Weatherproof Decoder
DMXD-4C-5A-WP
The DMXD-4C-5A-WP is an outdoor rated DMX decoder.
- RGBW 4-Channel DMX Decoder
- Standard DMX 512 Compliant Interface
- Digital Numeric Display for DMX Address Assignment
- Adjustable Pulse Width Modulation Frequency
- Switchable Logarithimic or Linear Dimming
- Rated for Indoor and Outdoor Use
Downloads
Technical Specifications
| Series | DMXD |
| Input Voltage | 12-24VDC |
| Output | 4 × 5A |
| Constant Voltage | Yes |

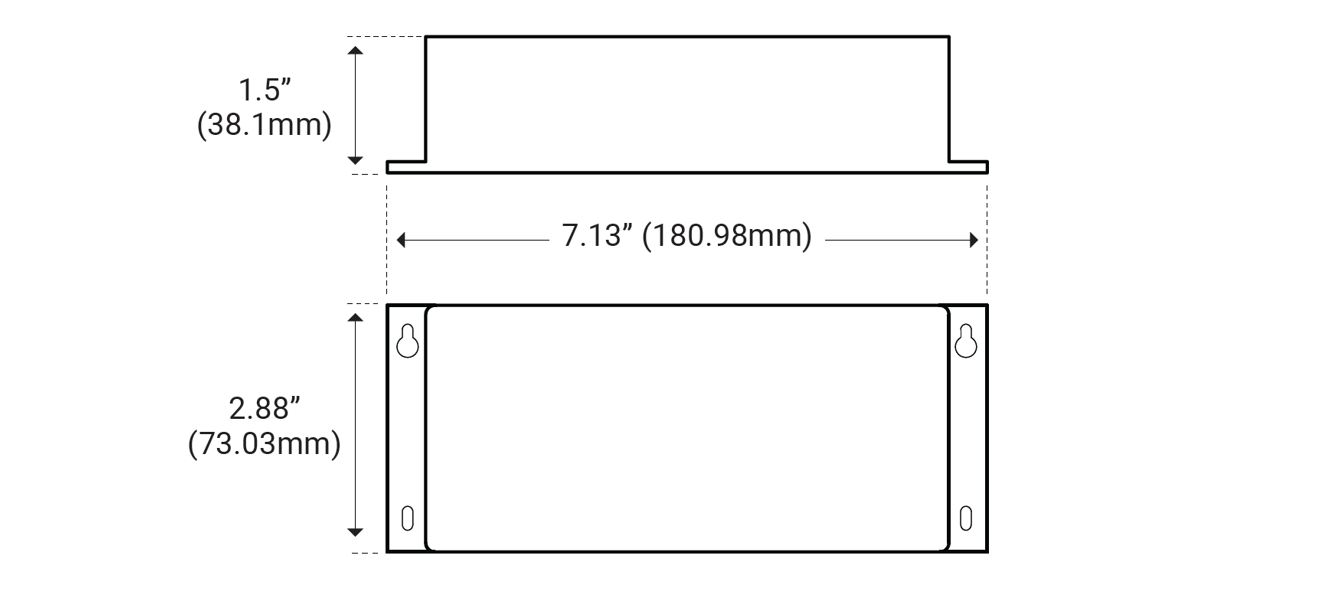

| Length | 7.13” (180.98mm) |
| Width | 2.88” (73.03mm) |
| Height | 1.5” (38.1mm) |
| IP Rating | IP67 |
| Dimming Range | 0.4% – 100% |
| Operating Temperature | -13°F (-25°C) to 113°F (45°C) |
| Storage Temperature | -13°F (-25°C) to 113°F (45°C) |
| Indoor/Outdoor | Outdoor |
| Input Protocol | DMX512 |
| Output Protocol | PWM |
| Channels of Control | 4 |
| Data Connection Method | Screw Terminal |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Customer Input Method | Button |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. DMXD
- DMXD — DMXD
2. 4C
- 4C — 4C
3. 5A
- 5A — 5A
4. WP
- WP — WP
Standards and Certifications
