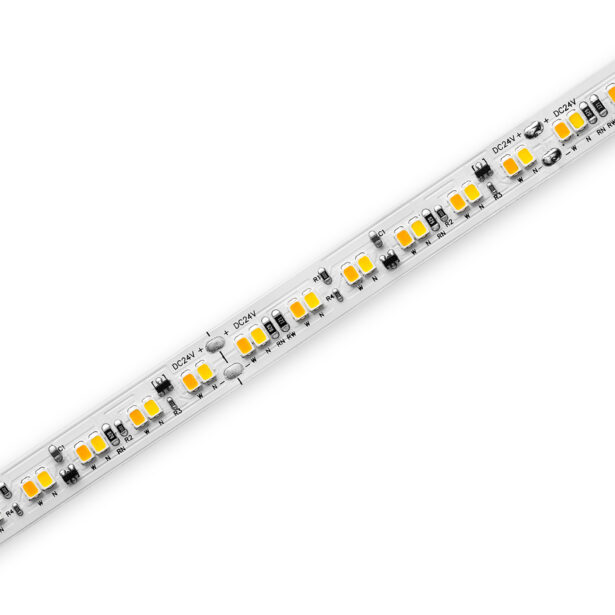

Uniform Dim to Warm (Indoor)
UNIx-DW Series | Incandescent-like Indoor LED Strip Tape
Our Uniform series provides single-bin color consistency across every single output option. Uniform Dim to Warm replicates an incandescent dimming curve by shifting to a warmer CCT at its low levels.
- Uses U2835 Diode
- Create a Custom Fixture with Kelvix Channels
- 5-Year Warranty
- UL-Listed
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
- Dimmable using Kelvix Power Supplies
- Offering 1-Step, 2-Step, and 3-Step SDCM
Downloads
Technical Specifications
| Series | UNI1-DW / UNI2-DW / UNI3-DW |
| Temp/Colors* | 1800K–3000K |
| Input Voltage | 24V DC/Constant Voltage |
| Beam Spread | 120° |
| CRI | 92–98 |
| SDCM | 1-Step, 2-Step, and 3-Step |
| Diode | 2835 |
| Diode Pitch | 168 LED/m |
| Cut Intervals | 2.81" (71.4mm) |
| Dimensions | 0.47" (12mm) x 0.07" (1.8mm) |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
| Storage Temp. | -4°F (-20°C) to 158°F (70°C) |
* Customizable—Consult Factory
| 1-Step | |||
|---|---|---|---|
| 100 (lm/ft) | 300 (lm/ft) | 600 (lm/ft) | |
| Lumens1 (per ft) | 134 | 356 | 651 |
| Wattage (lm/W) | 1.7 | 3.9 | 7.3 |
| Efficiency (Lm/W) | 80 | 92 | 90 |
| Max Run Length (ft) | 44 | 27 | 14 |
| 2-Step | |||
|---|---|---|---|
| 100 (lm/ft) | 300 (lm/ft) | 600 (lm/ft) | |
| Lumens1 (per ft) | 136 | 354 | 653 |
| Wattage (lm/W) | 1.7 | 3.9 | 7.3 |
| Efficiency (Lm/W) | 81 | 91 | 90 |
| Max Run Length (ft) | 44 | 27 | 14 |
| 3-Step | |||
|---|---|---|---|
| 100 (lm/ft) | 300 (lm/ft) | 600 (lm/ft) | |
| Lumens1 (per ft) | 85 | 360 | 701 |
| Wattage (lm/W) | 1.4 | 3.2 | 5.7 |
| Efficiency (Lm/W) | 61 | 112 | 123 |
| Max Run Length (ft) | 47 | 30 | 20 |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- UNI1-DW — Uniform Dim to Warm 1-Step
- UNI2-DW — Uniform Dim to Warm 2-Step
- UNI3-DW — Uniform Dim to Warm 3-Step
2. Location
- I — Indoor
3. Output*
- 100 — 100 lm/ft
- 300 — 300 lm/ft
- 600 — 600 lm/ft
4. Temp/Color*
- 1830K — 1800K–3000K
5. Voltage
- 24V — 24V DC
6. Modifications
- NA — None
* Customizable—Consult Factory
Standards and Certifications
Power/Connect Options
Lead
FML-2C-1
12.00" (305.0mm)
FML-2C-2
24.00" (0.60m)
FML-2C-3
36.00" (0.91m)
FML-2C-6
72.00" (1.82m)
FML-2C-12
144.00" (3.65m)
FML-2C-15
180.00" (4.57m)
FML-2C-20
240.00" (6.09m)
Lead with DC Plug
FML-2C-DC-1-M
12" (305mm)
FML-2C-DC-1-F
12" (305mm)
FML-2C-DC-6-M
72" (1.82m)
FML-2C-DC-6-F
72" (1.82m)
FML-2C-DC-10-M
120" (3.04m)
FML-2C-DC-10-F
120" (3.04m)
Connectors
FMC-2C-1.5|
1.5" (38mm)
FMC-2C-3I
3" (76mm)
FMC-2C-6I
6" (152mm)
FMC-2C-9I
9" (228mm)
FMC-2C-1
12" (305mm)
FMC-2C-2
24" (0.60m)
