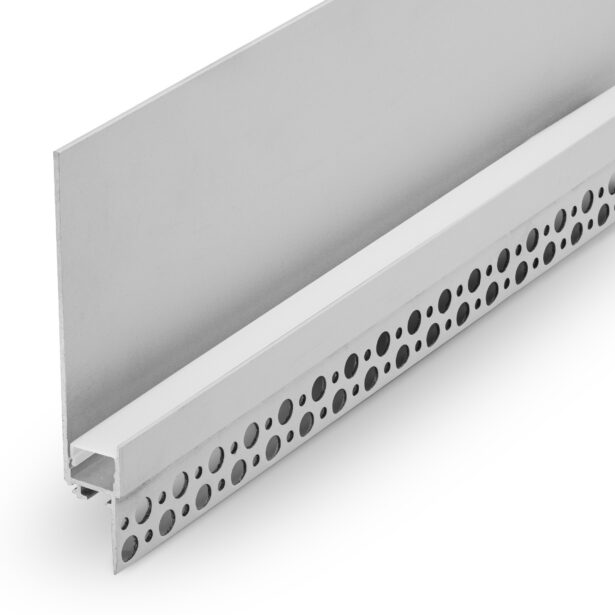

CH-0013

0.72" × 4.68" | Trimless & Mud-In

Create perfectly flush, seamless lines of light without modifying the structure behind the sheet rock.

Store in a Temperature-Controlled Environment.


  • Available In 78.74″ (2m) Sections
  • Extruded Aluminum Construction
  • Anodized Matte Finish
  • Straight and Angled Connectors Available to Create Long, Continuous Runs
  • Drywall Mud-In Mounting for a Seamless Recessed Look
  • Consult Factory for Custom Lengths and Finishes
  • Available in Various Finish Colors
Ch 0013 ch lnswh hero web
Ch 0013 ch lnswh hero web
Ch 0013 ch lnswh ec hero web 2048x2048
Ch 0013 ch closeup web 1
Ch 0013 dimensions thumbnail 1

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

CAD Files

Additional Files

Technical Specifications

Length 78.74" (2m)
Overall Width 0.72" (18.5mm)
Internal Width 0.54" (13.7mm)
Height 4.68" (119mm)
Lens Color White, White Continuous
Finish Anodized Matte

Connector Options

Straight Connector

Secure two pieces of channel together to form a continuous run of light.

Unit Number
CH-CON-01-180

90° Connector Horizontal

Secure two pieces of channel together to form a 90° horizontal corner.

Unit Number
CH-CON-01-90H

90° Connector Vertical

Secure two pieces of channel together to form a 90° vertical corner

Unit Number
CH-CON-01-90V

120° Connector Horizontal

Secure two pieces of channel together to form a 120° horizontal corner.

Unit Number
CH-CON-01-120H

135° Connector Horizontal

Secure two pieces of channel together to form a 135° horizontal corner.

Unit Number
CH-CON-01-135H

135° Connector Vertical

Secure two pieces of channel together to form a 135° vertical corner.

Unit Number
CH-CON-01-135V

Compatible Tapes

Compatible Specialty Tapes
