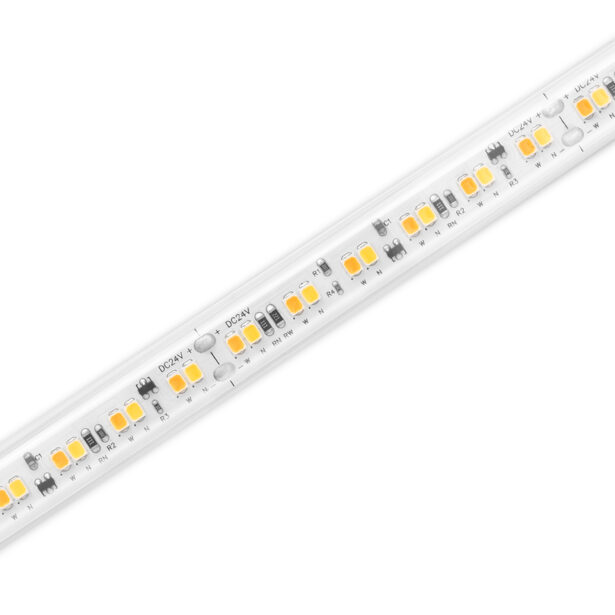

Uniform Dim to Warm (Outdoor)

UNIx-DW Series | Incandescent-like Outdoor LED Strip Tape

Download Spec Sheet Contact Us Add to Project

Our Uniform series provides single-bin color consistency across every single output option. Uniform Dim to Warm replicates an incandescent dimming curve by shifting to a warmer CCT at its low levels.

Uses U2835 Diode
Create a Custom Fixture with Kelvix Channels
5-Year Warranty
UL-Listed for Indoor and Outdoor
3M™ Industrial Adhesive Backing
For Use with 24V Power Supplies
Dimmable using Kelvix Power Supplies
IP67
Offering 1-Step, 2-Step, and 3-Step SDCM

Downloads

Spec Sheet

Installation Instructions

Installation Instructions

Warranty

Warranty Info

IES Files

Additional Files

Technical Specifications

Series	UNI1-DW / UNI2-DW / UNI3-DW
Temp/Color*	1800K–3000K
Input Voltage	24V DC/Constant Voltage
Beam Spread	120°
CRI	92–97
SDCM	1-Step, 2-Step, and 3-Step
Diode	2835
Diode Pitch	168 LED/m
Cut Intervals	2.81" (71.4mm)
Dimensions	0.57" (14.5mm) x 0.17" (4.5mm)
Dimensions w/End Caps	0.69" (17.5mm) x 0.23" (6mm)
Operating Temp.	-4°F (-20°C) to 140°F (60°C)
Storage Temp.	-4°F (-20°C) to 158°F (70°C)

* Customizable—Consult Factory

	1-Step
	100 (lm/ft)	300 (lm/ft)	600 (lm/ft)
Lumens¹ (per ft)	66	282	527
Wattage (lm/W)	1.7	3.9	7.3
Efficiency (Lm/W)	39	73	73
Max Run Length (ft)	44	27	14

	2-Step
	100 (lm/ft)	300 (lm/ft)	600 (lm/ft)
Lumens¹ (per ft)	65	278	526
Wattage (lm/W)	1.7	3.9	7.3
Efficiency (Lm/W)	39	72	73
Max Run Length (ft)	44	27	14

	3-Step
	100 (lm/ft)	300 (lm/ft)	600 (lm/ft)
Lumens¹ (per ft)	80	341	635
Wattage (lm/W)	1.4	3.2	5.7
Efficiency (Lm/W)	57	107	111
Max Run Length (ft)	47	30	20

¹Power consumption based on average wattage per foot. Refer to Power Chart in spec sheet for details.
