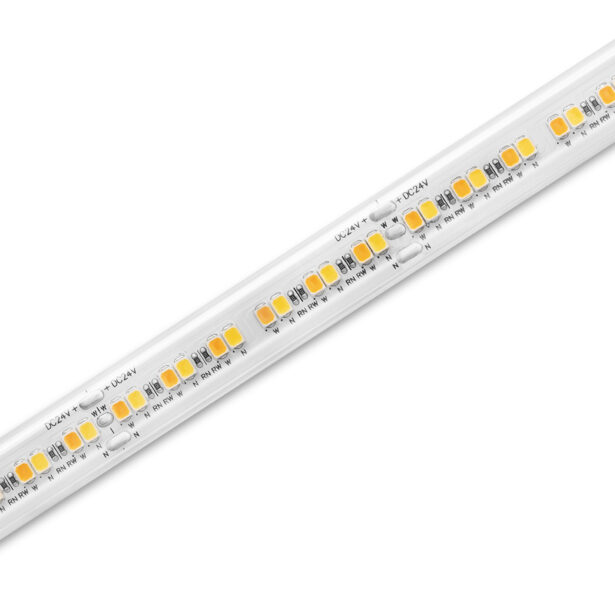

Uniform Color Tuning (Outdoor)
UNIx-CT Series | Color Tuning Outdoor LED Strip Tape
Our Uniform series provides single-bin color consistency across every single output option. Uniform Color Tuning allows you to dial in an exact CCT from 1800K-3500K.
- Uses U2835 Diode
- Create a Custom Fixture with Kelvix Channels
- 5-Year Warranty
- UL-Listed for Indoor and Outdoor
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
- Dimmable using Kelvix Power Supplies
- IP67
- Offering 1-Step, 2-Step, and 3-Step SDCM
Downloads
Technical Specifications
| Series | UNI1-CT / UNI2-CT / UNI3-CT |
| Temp/Color* | 1800K–3500K |
| Voltage | 24V DC/Constant Voltage |
| Beam Spread | 120° |
| CRI | 93.3–97.4 |
| SDCM | 1-Step, 2-Step, and 3-Step |
| Diode | 2835 |
| Diode Pitch | 216 LED/m |
| Cut Intervals | 2.19" (55.6mm) |
| Dimensions | 0.57" (14.5mm) x 0.18" (4.5mm) |
| Dimensions w/End Caps | 0.69" (17.5mm) x 0.24" (6mm) |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
| Storage Temp. | -4°F (-20°C) to 158°F (70°C) |
* Customizable—Consult Factory
| 1-Step | ||
|---|---|---|
| 300 (lm/ft) | 600 (lm/ft) | |
| 1800K (lm/ft) | 113 | 197 |
| 3500K (lm/ft) | 190 | 335 |
| All On (lm/ft) | 300 | 523 |
| Wattage (per ft) | 3.4 | 6.9 |
| Efficiency (per ft) | 88 | 76 |
| Max Run Length (ft) | 31 | 14 |
| 2-Step | ||
| 300 (lm/ft) | 600 (lm/ft) | |
| 1800K (lm/ft) | 115 | 202 |
| 3500K (lm/ft) | 169 | 298 |
| All On (lm/ft) | 282 | 491 |
| Wattage (per ft) | 3.4 | 6.9 |
| Efficiency (per ft) | 83 | 71 |
| Max Run Length (ft) | 31 | 14 |
| 3-Step | ||
| 300 (lm/ft) | 600 (lm/ft) | |
| 1800K (lm/ft) | 99 | 184 |
| 3500K (lm/ft) | 173 | 324 |
| All On (lm/ft) | 271 | 496 |
| Wattage (per ft) | 2.8 | 5.8 |
| Efficiency (per ft) | 97 | 86 |
| Max Run Length (ft) | 35 | 19 |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- UNI1-CT — Uniform Color Tuning 1-Step
- UNI2-CT — Uniform Color Tuning 2-Step
- UNI3-CT — Uniform Color Tuning 3-Step
2. Location
- O — Outdoor
3. Output*
- 300 — 300 lm/ft
- 600 — 600 lm/ft
4. Temp/Color*
- 1835K — 1800K-3500K
5. Voltage
- 24V — 24V DC
6. Modifications
- NA — None
* Customizable—Consult Factory
Standards and Certifications
Power/Connect Options
Lead
FML-3C-1
12.00" (305.0mm)
FML-3C-2
24.00" (0.60m)
FML-3C-3
36.00" (0.91m)
FML-3C-6
72.00" (1.82m)
FML-3C-12
144.00" (3.65m)
FML-3C-15
180.00" (4.57m)
FML-3C-20
240.00" (6.09m)
Connectors
FMC-3C-1.5I
1.50" (38.0mm)
FMC-3C-3I
3.00" (76.0mm)
FMC-3C-6I
6.00" (152.0mm)
FMC-3C-9I
9.00" (228.0mm)
FMC-3C-1
12.00" (305.0mm)
FMC-3C-2
24.00" (0.60m)
