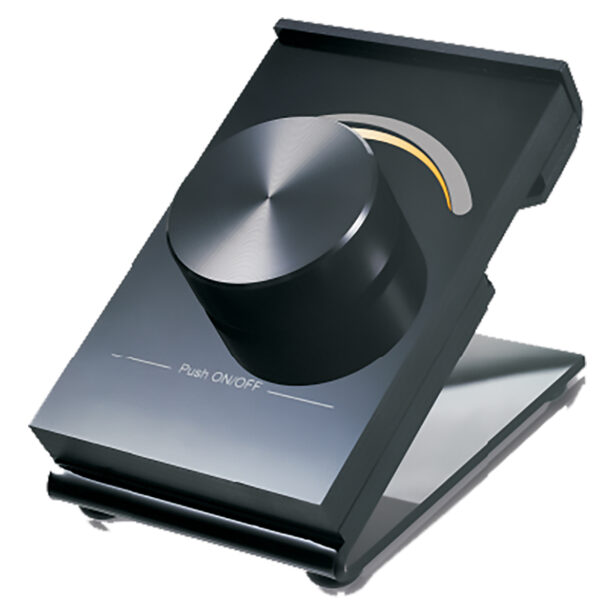

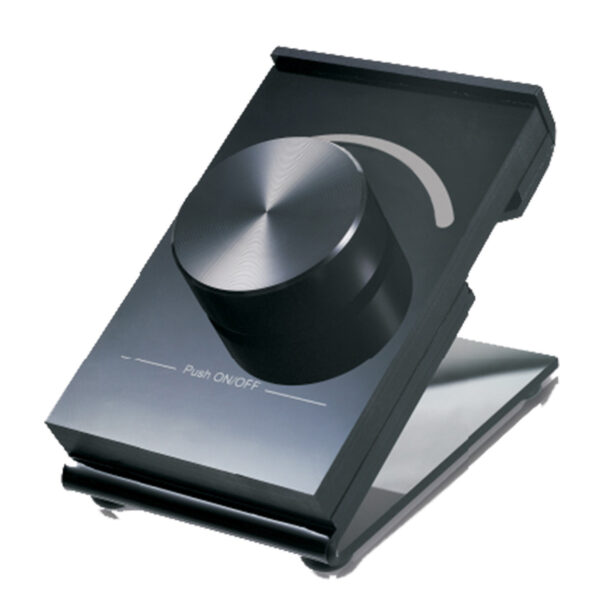

RF 2 Channel 1 Zone Tabletop Controller
RFC-A-CCT-1Z-TT-BT-B
The RFC-A-CCT-1Z-TT-BT-B is a stylish battery-operated table-top RF controller for single color systems.
- Dimming via Rotary Knob
- On/Off Push-Knob
- Compatible With RFR-A Series Receivers
- Can Control Multiple RF Receivers
- Battery Operated (Included)
Downloads
Technical Specifications
| Series | RFC |
| Input Voltage | 3V DC |
| Device Color | Black |
| Length | 3.87” (98.42mm) |
| Width | 2.5” (63.5mm) |
| Height | 2.75” (69.85mm) |
| IP Rating | IP20 |
| Dimming Range | 1% – 100% |
| Battery Compartment | CR2025 (Included) |
| RF Wireless Control | Yes |
| Operation Frequency | 434MHz / 868MHz |
| RF Range | Up to 50ft |
| Rotary Knob | Yes, 1.5” Diameter |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) to 122°F (50°C) |
| Indoor/Outdoor | Indoor |
| Data Connection Method | Wireless |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Zones | 1 |
| Customer Input Method | Dial |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RFC
- RFC — RFC
2. A
- A — A
3. CCT
- CCT — CCT
4. 1Z
- 1Z — 1Z
5. TT
- TT — TT
6. BT
- BT — BT
7. B
- B — B
Standards and Certifications
