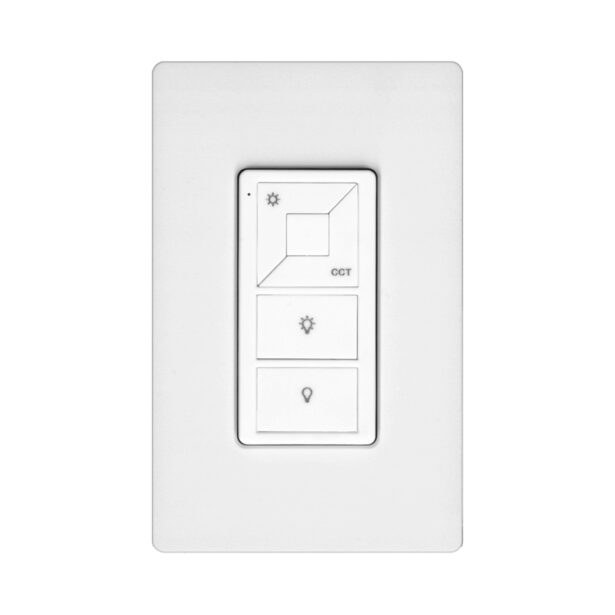

RF 2 Channel 1 Zone In-Wall Button Controller
RFC-A-CCT-1ZD-IW-BT-W
The RFC-A-CCT-1ZD-IW-BT-W is a stylish battery-operated RF in-wall controller for CCT systems.
- Dimming and Color Tuning via Push Button Controls
- Removable, Magnet-Mount Controller
- Compatible With 1-Gang Electrical Box
- Compatible With RFR-A Series Receivers
- Can Control Multiple RF Receivers
- Battery Operated (Included)
Downloads
Technical Specifications
| Series | RFC |
| Input Voltage | 3V DC |
| Device Color | White |
| Length | 2.62” (66.67mm) |
| Width | 1.25” (31.75mm) |
| Height | 0.37” (9.52mm) |
| IP Rating | IP20 |
| Dimming Range | 1% – 100% |
| Battery Compartment | CR2032 (Included) |
| RF Wireless Control | Yes |
| Operation Frequency | 434MHz / 868MHz |
| RF Range | Up to 50ft |
| Push Buttons | Yes |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) to 122°F (50°C) |
| Indoor/Outdoor | Indoor |
| Output Protocol | RF (434MHz/868MHz) |
| Data Connection Method | Wireless |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Zones | 1 |
| Customer Input Method | Buttons |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RFC
- RFC — RFC
2. A
- A — A
3. CCT
- CCT — CCT
4. 1ZD
- 1ZD — 1ZD
5. IW
- IW — IW
6. BT
- BT — BT
7. W
- W — W
