RF 2 Channel 4 Zone Handheld Controller
RFC-A-CCT-4Z-HH-BT-B

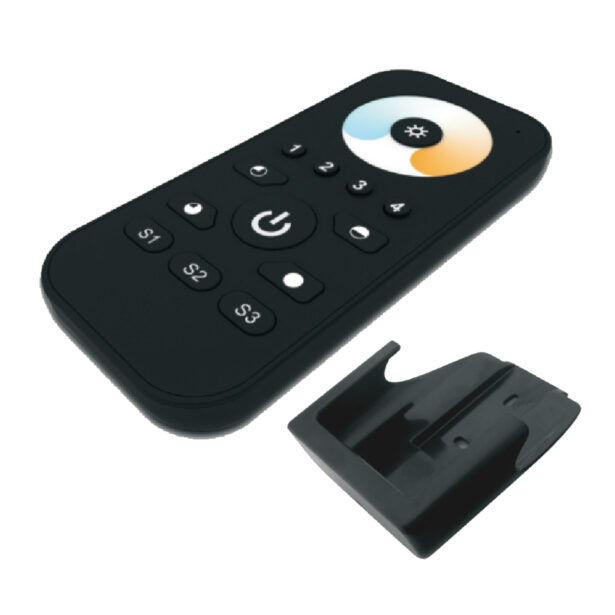

The RFC-A-CCT-4Z-HH-BT-B is a stylish battery-operated 4-Zone handheld RF controller for CCT systems.
- Controls up to Four Zones Separately or Synchronously
- Saves up to Three Scenes per Zone
- Compatible With RFR-A Series Receivers
- Can Control Multiple RF Receivers
- Remembers Last Setting
- Ten Preset Modes
Downloads
Technical Specifications
| Series | RFC |
| Input Voltage | 4.5V DC |
| Indoor/Outdoor | Indoor |
| Output Protocol | RF (434MHz/868MHz) |
| Data Connection Method | Wireless |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Zones | 4 |
| Customer Input Method | Buttons |
| Device Color | Black |
| DMX Wired Control | Yes |
| Length | 4.75” (120.65mm) |
| Width | 2.18” (55.56mm) |
| Height | 0.68” (17.46mm) |
| IP Rating | IP20 |
| Dimming Range | 1% – 100% |
| Color Touch Slide | Yes |
| Battery Compartment | 3 x 1.5V AAA Batteries |
| RF Wireless Control | Yes |
| Operation Frequency | 434MHz / 868MHz |
| RF Range | Up to 50ft |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temp. | -13°F (-25°C) to 122°F (50°C) |
