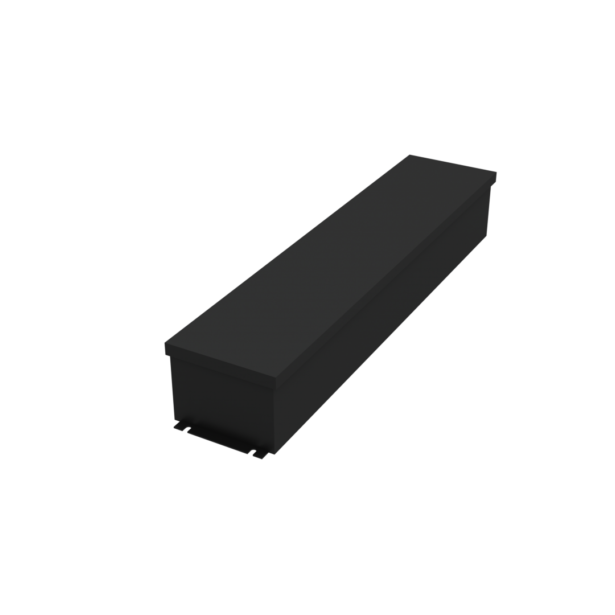

SLV96
96 Watt–24 Volt | Non Dim | Class 2 Power Supply
The SLV96 is a robust 96 Watt non-dimming LED power supply designed for digital pixel (SPI) controlled lighting. Its high efficiency design maximizes power usage, making it an ideal choice for applications where precision and energy conservation are essential. The SLV96 seamlessly integrates with Kelvix digital pixel-controlled products, offering the capability to power a diverse array of creative installations and shows.
Product Features
- Non-Dimmable Driver
- Compatible with Color Changing and Pixel Systems
- Overload Protection/Auto Reset Short Circuit Protection
- Free Air Convection Cooling
- Suitable for Dry/Damp Location
- UL-Listed Class 2
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | SLV96 |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 96W |
| Temp Range | -35°F(-37°C) – 158°F (70°C) |
| Dimensions | 14.96" × 3.03" × 2.24" |
| Classification | Class 2 |
