Signwave® 3 Silicone (Indoor/Outdoor)
SW3S Series | Narrow Viewing Angle Flexible Lighting System
Signwave 3 Silicone is the only series offered with Horizontal or Vertical bending options. The perfectly flat top of Signwave 3 provides greatly reduced side-viewing angles and concentrates the incredibly bright illumination onto a single direct-view surface.
- Dimmable
- 50,000 Hour Life
- Flat Profile for Streamline Projects
- Horizontal or Vertical Bending Option
- IP68
- UL-Listed for Indoor and Outdoor Use
- Factory-Installed Power Feed
- For Use with 24V Power Supplies
Downloads
Spec Sheet
Spec SheetInstallation Instructions
Warranty
IES Files
- SW3 – Signwave 3 3500K 1FT
- SW3 – Signwave 3 Red 1FT
- SW3 – Signwave 3 Green 1FT
- SW3 – Signwave 3 Blue 1FT
- SW3 – Signwave 3 Amber 1FT
- SW3 – Signwave 3 RGBW 1FT RGB On
- SW3 – Signwave 3 RGBW 1FT Red On
- SW3 – Signwave 3 RGBW 1FT Green On
- SW3 – Signwave 3 RGBW 1FT Blue On
- SW3 – Signwave 3 RGBW 1FT White On
Additional Files
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, Red, Green, Blue, Amber, RGBW, Dim to Warm (1800K–3000K) |
| Input Voltage | 24V DC |
| Lumens per Foot | 143 lm/ft (Static White) |
| Watts per Foot | 2.4–3.7 |
| Indoor/Outdoor | Indoor/Outdoor |
| Beam Angle | 160° |
| CRI | 80+ |
| IP Rating | IP68 |
| Viewing Angle | Narrow |
| Life Expectancy | 50,000 Hour Life |
| Feed Orientation | Bottom Feed, End Feed, Side-Feed Right, Side-Feed Left |
| Bend Direction | Horizontal, Vertical |

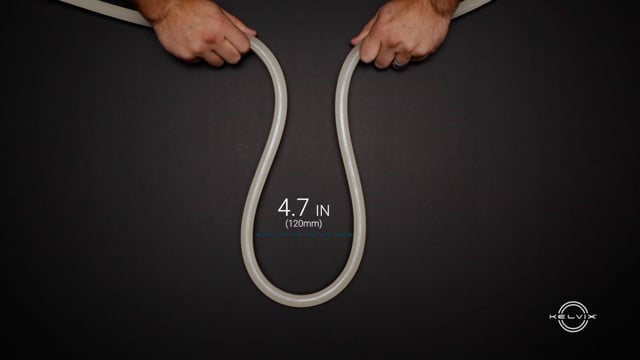

| Bend Radius | 11.81" (300mm) |
| Dimming Options | PWM, TRIAC, 0-10V, DMX 512, Hi-lume |
| Operating Temp. | -40°F (-40°C) to 131°F (55°C) |
| Static White | Red | Green | Blue | Amber | RGBW | Dim to Warm (18K–30K) | |
|---|---|---|---|---|---|---|---|
| Wavelength | N/A | 620 - 630 nm | 520 - 530 nm | 465 - 475 nm | 585 - 595 nm | N/A | N/A |
| Wattage per Foot | 3.7 W/ft | 2.2 W/ft | 3.7 W/ft | 3.7 W/ft | 2.2 W/ft | 4.6 W/ft | 3.7 W/ft |
| Max Run Length | 26ft | 38ft | 26ft | 26ft | 38ft | 25ft | 26ft |
| Production Intervals | 2.19” | 3.25” | 2.19” | 2.19” | 3.25” | 3.25” | 2.46” |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- SW3S — Signwave 3 Silicone
2. Length
3. Color/Temp
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 45K — 4500K
- 50K — 5000K
- RD — Red
- GRN — Green
- BL — Blue
- AM — Amber
- RGBW — Color Changing
- DTW — Dim to Warm
4. Bending
- VR — Vertical
- HZ — Horizontal
5. Feed Point
- B — Bottom Feed
- SL — Side-Feed Left
- SR — Side-Feed Right
- E — End Feed
6. Feed Length*
- S — Standard (118")
7. IP Rating
- IP68 — IP68
* Customizable—Consult Factory
Standards and Certifications
Mounting Options

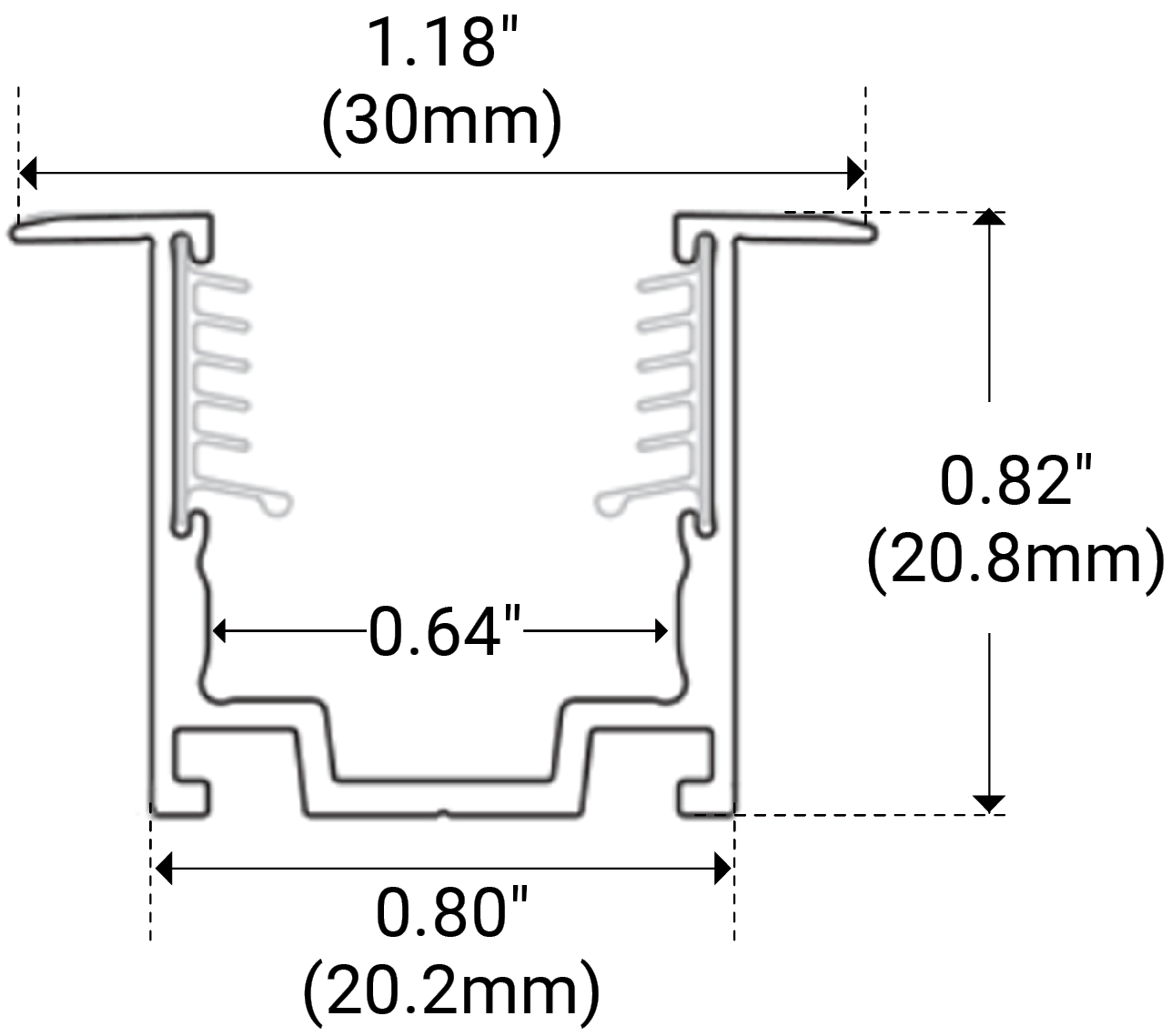

Aluminum Serrated Channel
Model
SW-K-AL-CH-SR-2M
Length
78.75" (2m)
Width
0.80" (20.2mm)
Internal Width
0.64" (16.3mm)
Height
0.82" (20.8mm)
Material
Aluminum
Aluminum Serrated Clip
Model
SW-K-CLP-AL-SR
Length
0.79" (20mm)
Width
0.80" (20.2mm)
Internal Width
0.64" (16.3mm)
Height
0.82" (20.8mm)
Material
Aluminum
Aluminum Serrated Flex Channel
Length
39.30" (1m)
Width
0.80" (20.2mm)
Internal Width
0.64" (16.3mm)
Height
0.82" (20.8mm)
Material
Aluminum
Model
SW-K-CH-AL-FLX-1M
Side Mounting Bracket
Model
SW-CLP-RA
Length
0.79" (20mm)
Width
0.98" (25mm)
Height
2.75" (70mm)
Material
Aluminum
