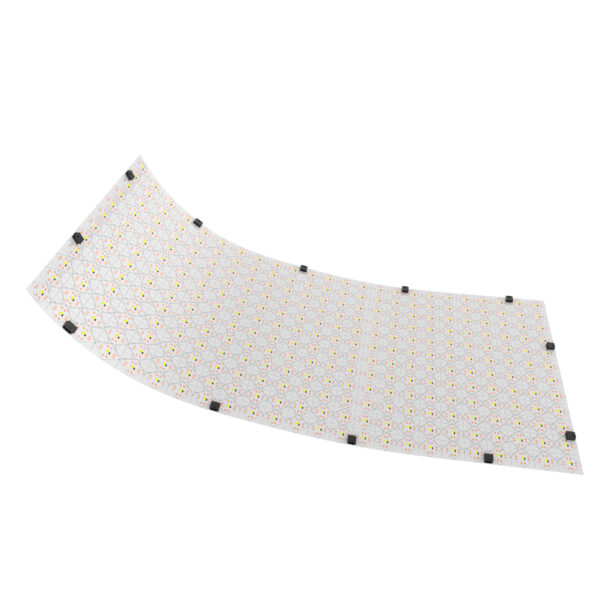

FlexFit™ Static White (Indoor)

Single Color Flexible LED Sheet

Download Spec Sheet Contact Us Add to Project

FlexFit™ is an incredibly versatile back-lighting system that’s perfect for signs, light boxes, or any translucent surface. Create nearly limitless shapes! FlexFit is cuttable at every single diode, allowing the installer to easily maneuver around obstructions or other imperfections within the mounting surface on-site. The product can be secured with screws or adhered using the integral 3M® VHB backing.

Cuttable Around Every Diode to Create Unique Shape
Screw Mount or 3M™ Adhesive Options For Easy Installation
5-Year Warranty
50,000 Hour Life
UL-Listed

Downloads

Spec Sheet

Installation Instructions

Installation Instructions

Warranty

Warranty Info

IES Files

Additional Files

Wire Gauge Chart

Technical Specifications

Series	FF2-SW
Temp/Colors	2400K, 2700K, 3000K, 3500K, 4000K, 5000K
Input Voltage	24V DC
Beam Spread	120°
Max Connection	96W per Power Feed
CRI	90+
LED Count	144 per Square Foot
Cut Intervals	Vertically and Horizontally Every 1.0"
Dimming Options	PWM, Triac, 0-10V, DMX, DALI
FF2 Dimensions	12" × 24" × 0.06" (304.8mm × 609.6mm × 1.6mm)
Operating Temp	-4°F (-20°C) to 113°F (45°C)
Storage Temp	-4°F (-20°C) to 140°F (60°C)

		2400K	2700K	3000K	3500K	4000K	5000K	Wattage^†	Efficiency^† (lm/W)	Total Sq Ft on 96W^†
5W Lumens	1 sq ft	441	476	494	480	512	526	5	97	9.6
5W Lumens	2 sq ft	882	952	988	961	1024	1053	10	97	9.6
10W Lumens	1 sq ft	853	921	956	973	991	1019	10	99	5
10W Lumens	2 sq ft	1706	1842	1912	1946	1981	2037	19	99	5
15W Lumens	1 sq ft	1212	1309	1359	1383	1408	1447	14	98	3.4
15W Lumens	2 sq ft	2424	2618	2717	2765	2815	2895	28	98	3.4
20W Lumens	1 sq ft	1584	1710	1776	1807	1840	1892	18	96	2.6
20W Lumens	2 sq ft	3168	3421	3551	3614	3679	3783	37	96	2.6

^†Data extracted from 3000K panel.
