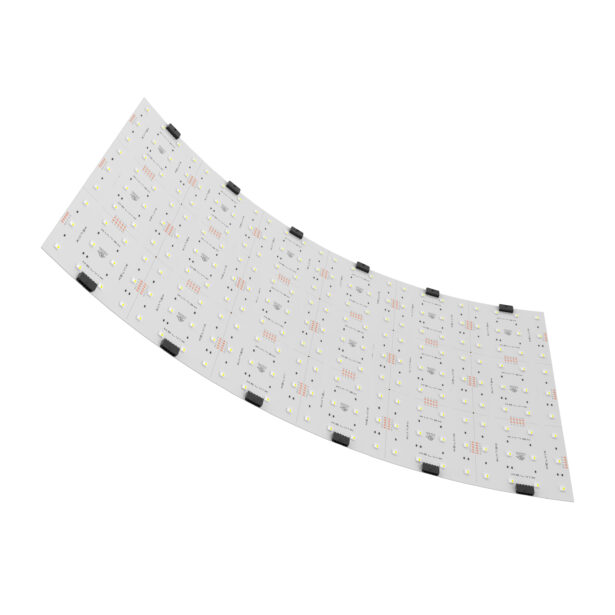

FlexFit™ RGBW (Indoor)

Color Changing Flexible LED Sheet

Download Spec Sheet Contact Us Add to Project

FlexFit RGBW is a colorful way to back-light signs, light boxes, or any translucent surface. A variety of controls are available, ranging from basic to sophisticated. Product can be secured with screws or adhered using the integral 3M® VHB backing.

RGBW Color Changing
Screw Mount or 3M™ Adhesive Options For Easy Installation
5-Year Warranty
50,000 Hour Life
UL-Listed

Downloads

Spec Sheet

Installation Instructions

Installation Instructions

Warranty

Warranty Info

IES Files

Additional Files

Wire Gauge Chart

Technical Specifications

Series	FF2-RGBW
Temp/Colors	RGBW (3000K)
Input Voltage	24V DC
Beam Spread	120°
Max Connection	96W per Power Feed
CRI	90+ (White)
LED Count	108 per sq foot
Cut Intervals	Vertically and Horizontally Every 4.0"
Dimming Options	0-10V, DMX, RF
FF2 Dimensions	12" × 24" × 0.063" (304.8mm × 609.6mm × 1.6mm)
Operating Temp.	-4°F (-20°C) to 113°F (45°C)
Storage Temp	-4°F (-20°C) to 140°F (60°C)

		Red	Green	Blue	White (30K)	RGB	All On	Wattage^†	Efficiency^† (lm/W)	Max # of Sheets per 96W Circuit^†2
20W Lumens	1 sq ft	202	437	93	447	706	1111	20	56	3
20W Lumens	2 sq ft	404	874	185	894	1412	2221	40	56	3
30W Lumens	1 sq ft	294	547	120	594	924	1449	30	52	2
30W Lumens	2 sq ft	588	1094	240	1187	1847	2897	60	52	2

^†Data extracted from "All On" state.
²Assumes dynamic loading
