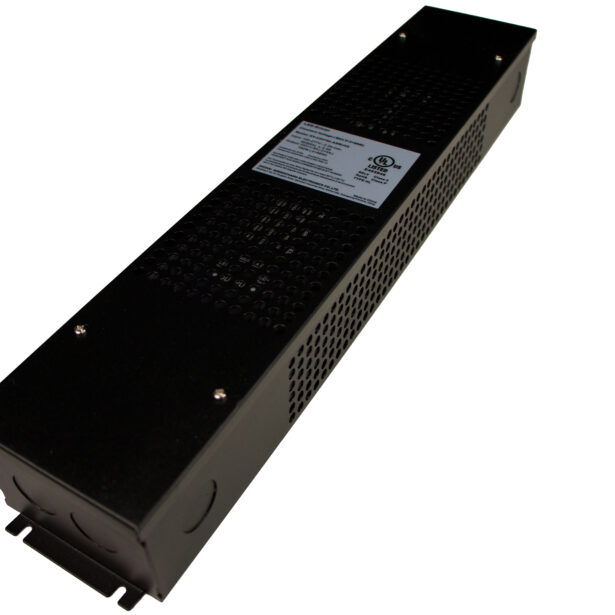

SLV192
192 Watt(2 × 96W)–24 Volt | Non Dim | Class 2 Power Supply
The SLV192 is a robust 2 x 96W non-dimming LED power supply designed for digital pixel (SPI) controlled lighting applications. Its efficiency maximizes power usage, positioning it as an excellent solution for scenarios where precision and energy conservation take precedence. The SLV192 seamlessly integrates with Kelvix digital pixel-controlled products, offering the capability to power a diverse range of creative installations and shows.
Product Features
- High Strength Polycarbonate Bulbs
- Non-Dimmable Driver
- Compatible with Color Changing and Pixel Systems
- Overload Protection/Auto Reset Short Circuit Protection
- Free Air Convection Cooling
- Suitable for Dry/Damp Location
- UL-Listed Class 2
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | SLV192 |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 192W (2 × 96W) |
| Temp Range | -20°F(-29°C) – 158°F (70°C) |
| Dimensions | 17.83" × 3.42" × 2.36" |
| Classification | Class 2 |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. SLV192
- SLV192 — SLV192
Standards and Certifications
