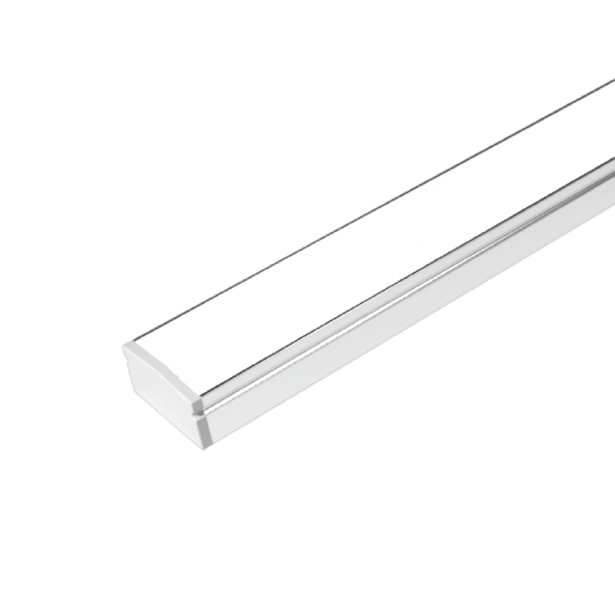

Easy 502 Uniform Static White (Indoor)

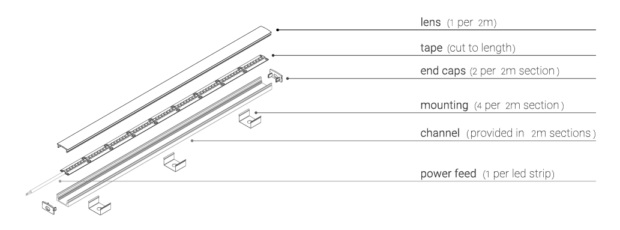

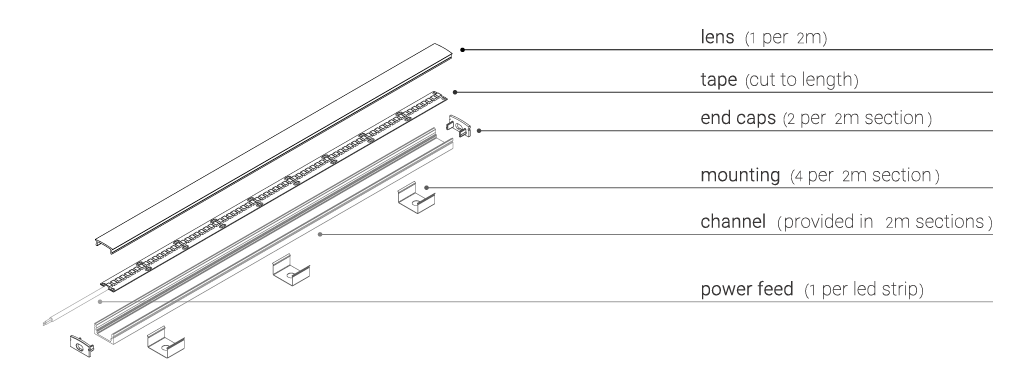

The Easy Spec series is designed for convenience and versatility, allowing you to quickly specify our standard Tape and Channel pairs with just one part number. Products arrive as individual components, providing your installation team the advantage of customizing lengths and configurations on-site for an optimal fit. Assembly services are available upon request.
- Field Serviceable Light Source & Engine
- Dimmable to 0.1%
- Beam Angles As Narrow As 22.5°
- 5/10 Year Warranty for LED Strip / Drivers
- Optional Assembly Available For Any Fixtures Up to 8ft*
- Diode Imaging Free
Downloads
Spec Sheet
Spec SheetInstallation Instructions
Warranty
IES Files
- 502-I-U2-30K-100 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 100 lm/ft
- 502-I-U2-30K-200 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 200 lm/ft
- 502-I-U2-30K-300 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 300 lm/ft
- 502-I-U2-30K-400 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 400 lm/ft
- 502-I-U2-30K-500 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 500 lm/ft
- 502-I-U2-30K-750 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 750 lm/ft
- 502-I-U2-30K-1000 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 1000 lm/ft
- 502-I-U2-30K-1250 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 1250 lm/ft
- 502-I-U2-30K-1500 – CH-502 + Uniform Static White (Indoor) 2-Step 30K 1500 lm/ft
Additional Files
Technical Specifications
| Series | Easy-Spec™ |
| Tape/Fixture Type | Uniform Static White |
| Temp/Color* | 1800K–6500K |
| Input Voltage | 24V DC |
| Lumens per Foot* | 44–1491 |
| Watts per Foot* | 0.7–14.4 |
| Beam Spread | 103.8°, 94.6°, 115.2°, 22.5°, 72.1° |
| CRI* | 90+, 95+ |
| Diodes* | U2835 |
| Binning Tolerance* | 3+ SDCM, 2 SDCM, 1 SDCM |
| Max Run Length | 7–46ft |
| Width | 0.67" (17.1mm) |
| Height | 0.31" (8.0mm) |
| Operating Temp | -4°F (-20°C) to 140°F (60°C) |
| Storage Temp | -4°F (-20°C) to 158°F (70°C) |
* Customizable—Consult Factory
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- EZ — Easy-Spec™
- 502 — CH-502
- I — Indoor
- U1 — Uniform Static White (1-Step)
- U2 — Uniform Static White (2-Step)
- U3 — Uniform Static White (3-Step)
- 18K — 1800K
- 22K — 2200K
- 24K — 2400K
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 50K — 5000K
- 60K — 6000K
- 65K — 6500K
- 100 — 100 lm/ft
- 200 — 200 lm/ft
- 300 — 300 lm/ft
- 400 — 400 lm/ft
- 500 — 500 lm/ft
- 750 — 750 lm/ft
- 1000 — 1000 lm/ft
- 1250 — 1250 lm/ft
- 1500 — 1500 lm/ft
- C — Clear
- F — Frosted
- W — White
- CG — Clear Graze
- FG — Frosted Graze
- P — Plastic Clip
- M — Metal Clip
- PV — Pivot Clip
- A — Anodized Aluminum
- W — White Finish (WH-08)
- B — Black Finish (BK-08)
- C — Custom (RAL#)
* Customizable—Consult Factory
