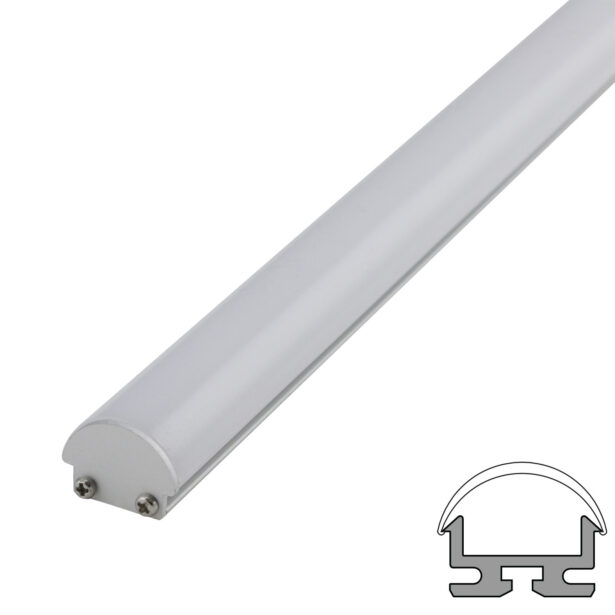

Kate 202
Linear Fixture
The KATE 202 is a rounded surface mount linear fixture. Using our CH-202 mounting profile, the KATE 202 is simple to specify as a single line item.
- 100 to 1000 Lumens per Foot
- Field Replaceable Light Source
- 50,000 Hour Lamp Life
- Dimmable to 1%
- Anodized Finish
- Adjustable-Length Power Feed Included
Downloads
Technical Specifications
| Length | Unlimited (inches) |
| Color/Temperature | 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, RGBW |
| Dimming Protocol | PWM, Triac, 0-10V |
| Finish* | Silver |
| Input Voltage | 24V DC |
| Watts per Foot | Ranges from 1.9W/ft to 6.7W/ft |
| Lumen per Foot | Ranges from 100+ to 1000+ lm/ft |
| Lumens per watt | Ranges from 65 to 158 lm/W |
| Optic | 120° |
| Max Run Length | Ranges from 14ft to 50ft |
| CRI | 90+ |
| Operating Temp. | -40°F (-40°C) to 149°F (65°C) |
* Customizable—Consult Factory
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- 202 — Kate 202
2. Location
- I — Indoor
3. Length
4. Output
- DL — 200+lm/ft
- DK — 400+lm/ft
- DV — 700+lm/ft
- VT — 1000+lm/ft
- RGBW-2 — 340lm/ft
- RGBW-3 — 250lm/ft
5. Color/Temp
- 24K — 2400K
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 50K — 5000K
6. Lens
- NA — None
- WH — White
7. Mounting
- CP — Mounting Clips
- PV — Pivot Clips
8. Finish*
- SV — Silver
9. Power Supply
- ULV — Universal Power Supply²
* Customizable—Consult Factory
