HLV96

96 Watt - 24 Volt Class 2 Power Supply

IP66 Outdoor Universal Power Supply with 0-10V, ELV, MLV, DMX, and Incandescent dimming. 100–277V Input


  • Incandescent, ELV, MLV, or 0-10V Dimming
  • Protections: Short Circuit / Over Current / Over Voltage
  • Free Air Convection Cooling
  • Dry/Damp/Wet Rated
  • UL-Listed for Indoor and Outdoor Use
  • Class 2
Hlv96 image 1500x1500px
Hlv96 image 1500x1500px

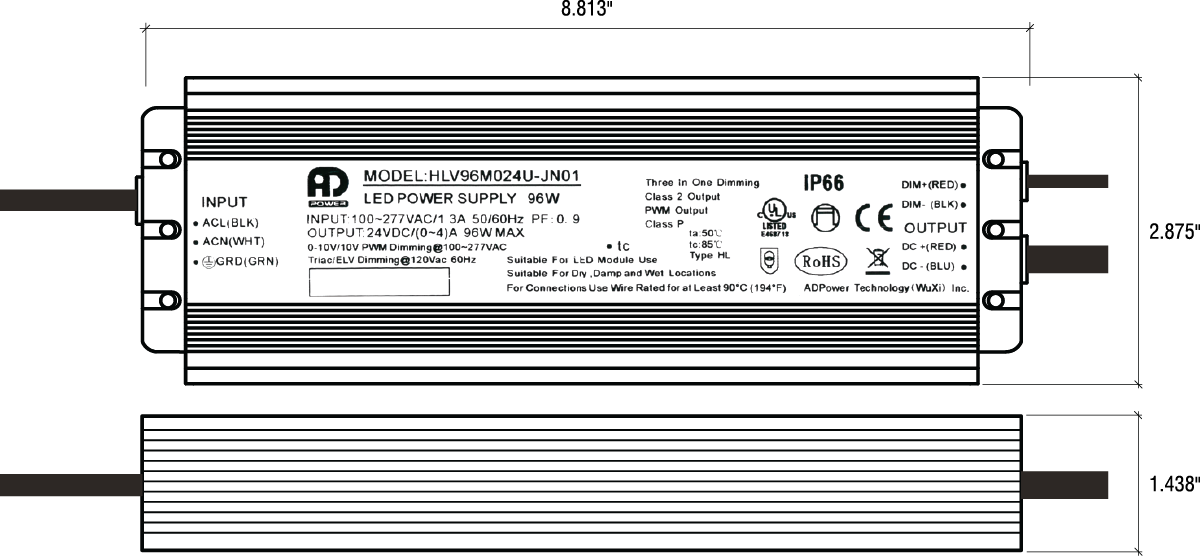

Hlv96 dimensions
HLV96 Wiring Example

Downloads

Spec Sheet

Spec Sheet

Additional Files

Technical Specifications

Indoor/Outdoor Indoor/Outdoor
Input Voltage 100–277VAC
Operating Temp. -20°F (-29° C) – 158°F (70°C)
Storage Temp. 65°F (16°C) – 85 °F (30 °C)
Dimming Protocol 0-10V, DMX512, MLV, ELV
Output Power 96W
Width 8.81″
Height 2.88″
Depth 1.44″
Output Voltage 24V DC / Constant Voltage
Minimum Dim Level 1%
Safety Features Short Circuit, Over Current, Over Voltage
Efficency 83%
Life Expectancy 30,000 Hours
Live Voltage Termination Type Bare Wire
Low Voltage Termination Type Bare Wire
Enclosure Width 8.81" (223.7mm)
Enclosure Height 2.87" (73mm)
Enclosure Depth 1.44 (36.5mm)
Startup Time 0.3 Seconds
Encloser Material Powder Coated Steel
Low Voltage Output Quantity 1
Requires Derating No
Type Dimming
