ULV96

96 Watt - 24 Volt Class 2 Power Supply

The ULV96 is the most versatile power supply on earth. It accepts 100-277V input voltage, and can dim on all dimming systems (MLV, ELV, INC), plus 0-10V and DMX. With sophisticated over-load protection, and a dry/damp enclosure, it is the perfect unit to specify because it works on every system, every time.


  • 431 Hz/Flicker-Free Dimming
  • Universal Dimming: 0-10V, DMX 512, TRIAC, MLV, ELV, Incandescent
  • Unlimited Overload Protection/Auto-Reset Short Circuit Protection
  • Free Air Convection Cooling
  • Suitable for Dry/Damp Location
  • UL-Listed Class 2

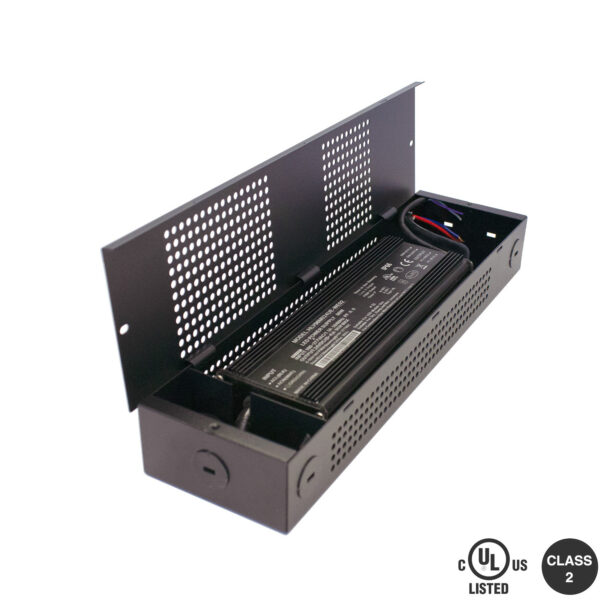

Ulv96 image
Ulv96 image
Ulv96 dimensions
ULV96 Wiring Example

Downloads

Spec Sheet

Spec Sheet

Additional Files

Technical Specifications

Indoor/Outdoor Indoor
Input Voltage 100–277VAC
Operating Temp. -20°F (-29° C) – 158°F (70°C)
Storage Temp. 65°F (16°C) – 85 °F (30 °C)
Dimming Protocol 0-10V, DMX512, TRIAC, MLV, ELV
Output Power 96W
Width 13.38"
Height 4.31"
Depth 1.75"
Output Voltage 24V DC / Constant Voltage
Minimum Dim Level 1%
Safety Features Unlimited Overload Protection, Auto Reset Short Circuit Protection
Efficency 89%
Life Expectancy 30,000 Hours
Live Voltage Termination Type Bare Wire
Low Voltage Termination Type Bare Wire
Enclosure Width 13.38" (340mm)
Enclosure Height 4.31" (110mm)
Enclosure Depth 1.75 (44.5mm)
Wiring Compartment Width 1.35"(34.3mm) + 2.17" (55mm)
Wiring Compartment Depth 1.78" (45.2mm)
Wiring Compartment Height 3.54" (90mm)
Startup Time 0.5 Seconds
Encloser Material Powder Coated Steel
Low Voltage Output Quantity 1
Requires Derating No
Type Dimming

Standards and Certifications
