ULV192

192 Watt (2x96W) - 24 Volt Class 2 Power Supply

Indoor/Damp Dual-Output (2 × 96W) Class 2 Power Supply. 100–277V Input, with 0-10V, ELV, MLV, DMX and Incandescent dimming.


  • Incandescent, ELV, MLV, or 0-10V Dimming
  • Two Independent 0-10V Inputs
  • Protections: Short Circuit / Over Current / Over Voltage
  • Free Air Convection Cooling
  • Suitable for Dry/Damp Location
  • UL-Listed Class 2

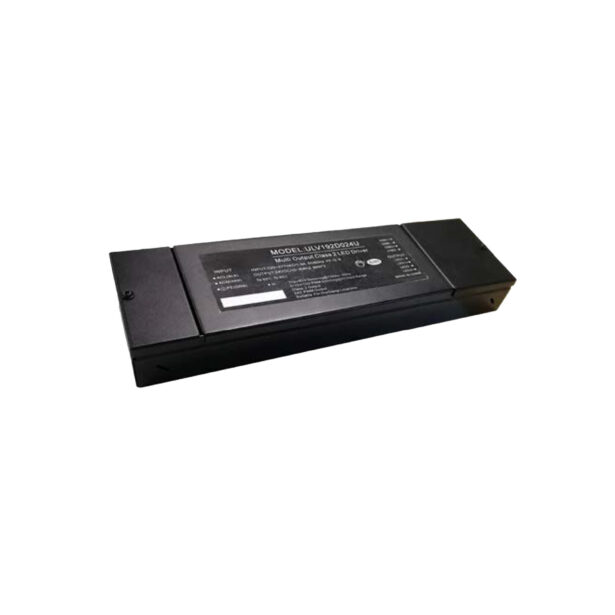

Ulv192 image
Ulv192 image

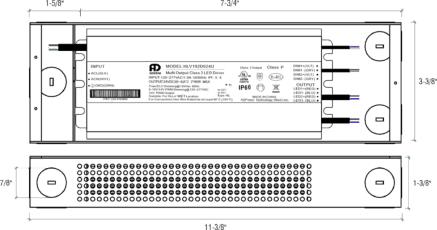

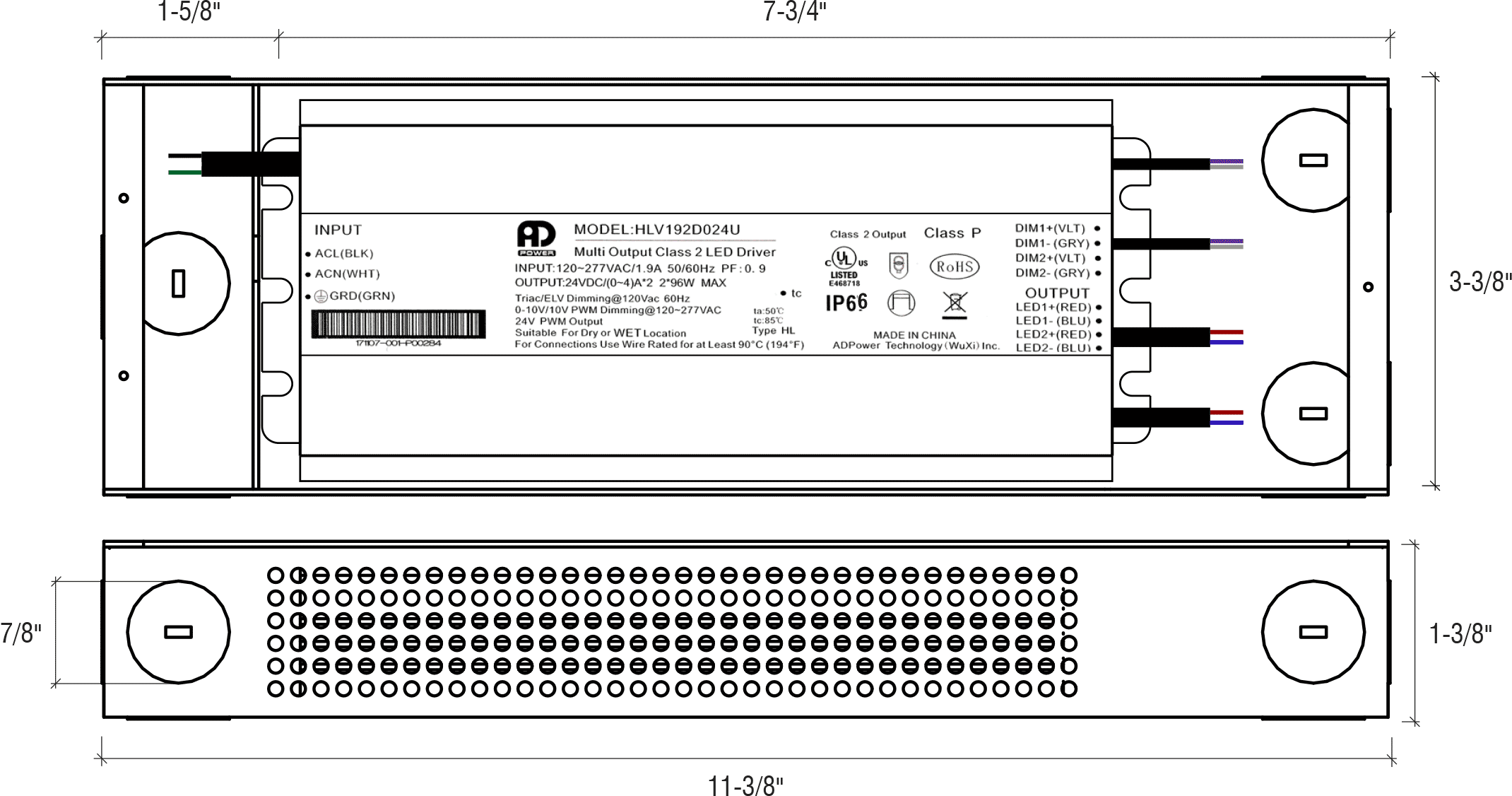

Ulv192 dimensions 1500x1500px

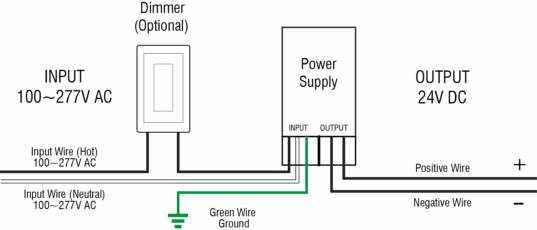

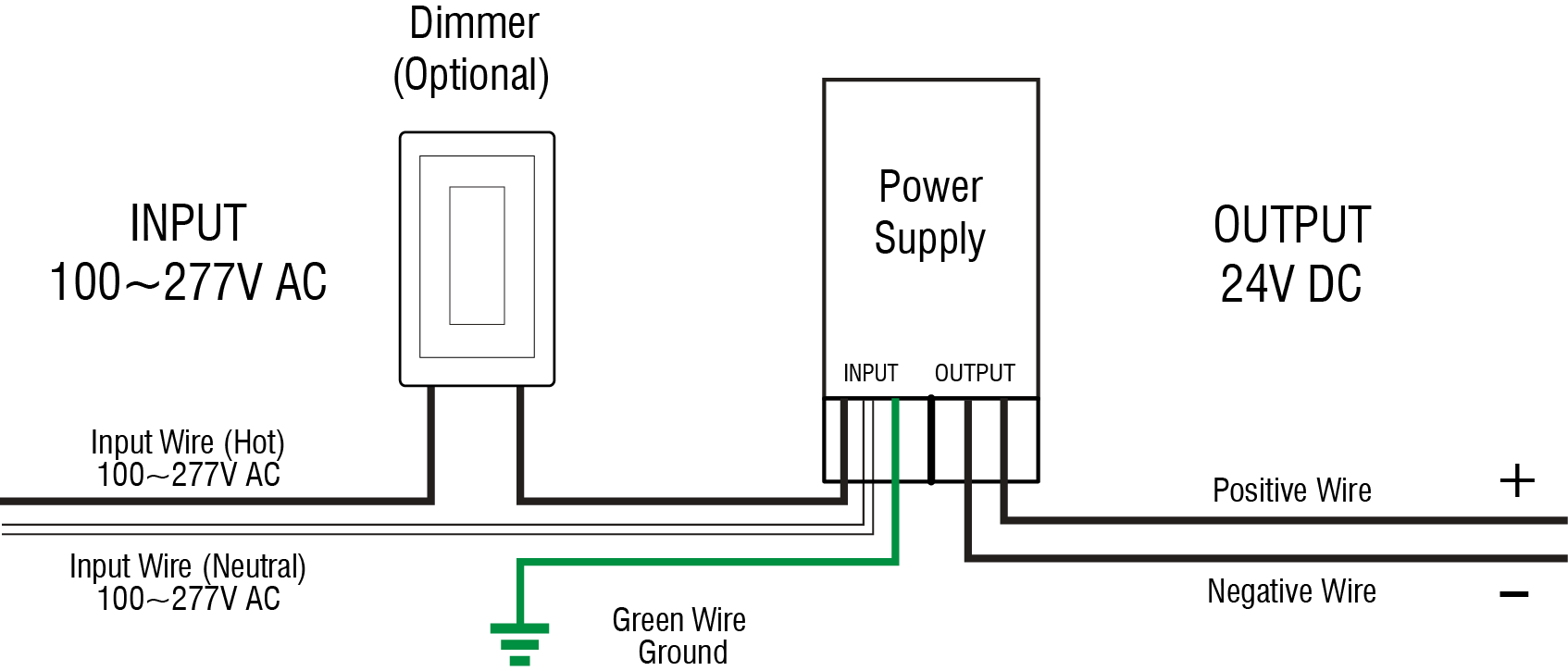

ULV192 Wiring Example

Downloads

Spec Sheet

Spec Sheet

Additional Files

Technical Specifications

Indoor/Outdoor Indoor
Input Voltage 100–277VAC
Operating Temp. -20°F (-29° C) – 158°F (70°C)
Storage Temp. 65°F (16°C) – 85 °F (30 °C)
Dimming Protocol 0-10V, DMX512, MLV, ELV
Output Power 192W (2 × 96W)
Width 11.38"
Height 1.38"
Depth 3.38"
Output Voltage 24V DC / Constant Voltage
Minimum Dim Level 5%
Safety Features Short Circuit, Over Current, Over Voltage
Efficency 90%
Life Expectancy 50,000 Hours
Live Voltage Termination Type Bare Wire
Low Voltage Termination Type Bare Wire
Enclosure Width 11.38" (289mm)
Enclosure Height 3.38" (86mm)
Enclosure Depth 1.38" (35mm)
Wiring Compartment Width 1.47" (37.3mm) + 2.55" (64.8mm)
Wiring Compartment Depth 1.38" (35mm)
Wiring Compartment Height 3.38" (86mm)
Startup Time 0.3 Seconds
Encloser Material Powder Coated Steel
Low Voltage Output Quantity 2
Requires Derating No
Type Dimming
