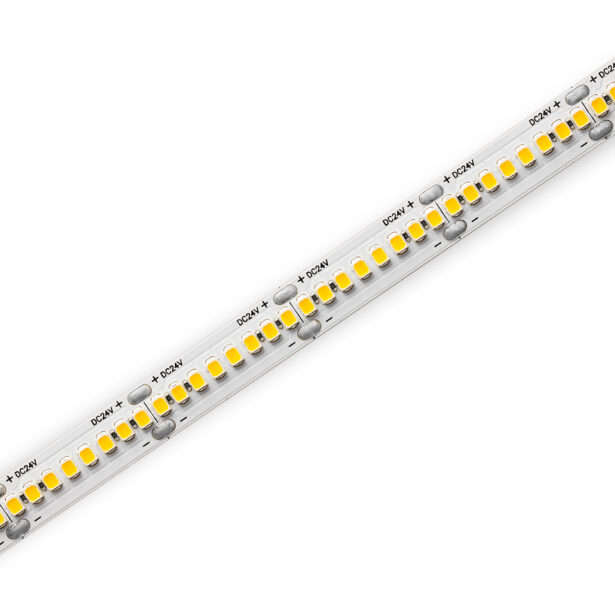

Uniform Static White (Indoor)
UNIx-WL Series | Indoor White Light Strip Tape
Our Uniform Static White series ensures single-bin color consistency across every output option and eliminates diode imaging when paired with any Kelvix channel.
- Uses U2835 Diode

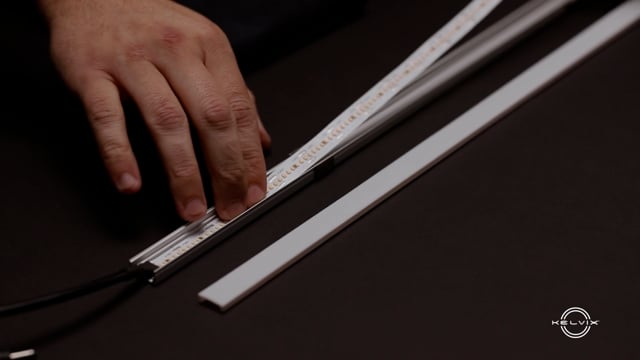

- Create a Custom Fixture with Kelvix Channels
- 5-Year Warranty
- UL-Listed
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
- Dimmable using Kelvix Power Supplies
- Offered 1-step, 2-step, and 3-step SDCM
Downloads
Technical Specifications
| Series | UNI1-WL / UNI2-WL / UNI3-WL |
| Temp/Color* | 1800K–6500K |
| Input Voltage | 24V DC/Constant Voltage |
| Beam Spread | 120° |
| CRI | Ra 90–98 |
| Diode | 2835 |
| Diode Pitch | 0.17" (4.3mm) |
| Cut Intervals | 1.31" (33.3mm) |
| Dimensions | 0.47" (12.0mm) × 0.07" (1.8mm) |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
| Storage Temp. | -4°F (-20°C) to 158°F (70°C) |
* Customizable—Consult Factory
| 1 & 2-Step | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 100 (lm/ft) | 200 (lm/ft) | 300 (lm/ft) | 400 (lm/ft) | 500 (lm/ft) | 750 (lm/ft) | 1000 (lm/ft) | 1250 (lm/ft) | 1500 (lm/ft) | |
| 1800K (lm/ft) | 76 | 174 | 271 | 357 | 409 | 613 | 778 | 1000 | 1178 |
| 2200K (lm/ft) | 93 | 211 | 328 | 433 | 495 | 722 | 917 | 1178 | 1387 |
| 2400K (lm/ft) | 96 | 218 | 340 | 448 | 513 | 764 | 970 | 1246 | 1468 |
| 2700K (lm/ft) | 99 | 226 | 351 | 463 | 530 | 806 | 1023 | 1315 | 1549 |
| 3000K (lm/ft) | 108 | 245 | 382 | 503 | 576 | 839 | 1066 | 1369 | 1613 |
| 3500K (lm/ft) | 128 | 292 | 455 | 599 | 685 | 915 | 1162 | 1493 | 1758 |
| 4000K (lm/ft) | 114 | 260 | 405 | 534 | 610 | 906 | 1151 | 1479 | 1742 |
| 5000K (lm/ft) | 115 | 263 | 409 | 539 | 616 | 923 | 1172 | 1506 | 1774 |
| 6500K (lm/ft) | 116 | 265 | 413 | 544 | 622 | 932 | 1183 | 1520 | 1790 |
| Wattage1 (per ft) | 0.8 | 1.7 | 2.5 | 3.6 | 4.0 | 6.4 | 8.5 | 11.6 | 14.4 |
| Efficacy (lm/W) | 136 | 144 | 156 | 140 | 145 | 132 | 125 | 118 | 112 |
| Max Run Length (ft) | 46 | 36 | 29 | 24 | 20 | 16 | 12 | 9 | 7 |
| 3-Step | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 100 (lm/ft) | 200 (lm/ft) | 300 (lm/ft) | 400 (lm/ft) | 500 (lm/ft) | 750 (lm/ft) | 1000 (lm/ft) | 1250 (lm/ft) | 1500 (lm/ft) | |
| 1800K (lm/ft) | 83 | 147 | 218 | 303 | 347 | 469 | 603 | 791 | 925 |
| 2200K (lm/ft) | 177 | 211 | 313 | 436 | 498 | 746 | 958 | 1257 | 1471 |
| 2400K (lm/ft) | 125 | 226 | 334 | 465 | 532 | 805 | 1033 | 1356 | 1587 |
| 2700K (lm/ft) | 131 | 235 | 348 | 485 | 554 | 788 | 1012 | 1328 | 1553 |
| 3000K (lm/ft) | 132 | 238 | 351 | 489 | 560 | 838 | 1077 | 1413 | 1653 |
| 3500K (lm/ft) | 133 | 240 | 355 | 494 | 565 | 880 | 1130 | 1483 | 1735 |
| 4000K (lm/ft) | 137 | 247 | 365 | 509 | 582 | 897 | 1152 | 1512 | 1768 |
| 5000K (lm/ft) | 143 | 257 | 379 | 529 | 605 | 903 | 1173 | 1540 | 1801 |
| 6500K (lm/ft) | 140 | 252 | 372 | 519 | 593 | 888 | 1141 | 1497 | 1752 |
| Wattage1 (per ft) | 0.7 | 1.3 | 2 | 2.6 | 3.4 | 4.4 | 5.6 | 7.2 | 8.6 |
| Efficacy (lm/W) | 144 | 147 | 150 | 150 | 140 | 162 | 173 | 164 | 166 |
| Max Run Length (ft) | 46 | 30 | 25 | 22 | 19 | 17 | 14 | 11 | 11 |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- UNI1-WL — Uniform Static White 1-Step
- UNI2-WL — Uniform Static White 2-Step
- UNI3-WL — Uniform Static White 3-Step
2. Location
- I — Indoor
3. Output*
- 100 — 100 lm/ft
- 200 — 200 lm/ft
- 300 — 300 lm/ft
- 400 — 400 lm/ft
- 500 — 500 lm/ft
- 750 — 750 lm/ft
- 1000 — 1000 lm/ft
- 1250 — 1250 lm/ft
- 1500 — 1500 lm/ft
4. Temp/Color*
- 18K — 1800K
- 22K — 2200K
- 24K — 2400K
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 50K — 5000K
- 65K — 6500K
5. Voltage
- 24V — 24V DC
6. Modifications
- NA — None
* Customizable—Consult Factory
Standards and Certifications
Related Projects
Power/Connect Options
Lead
FML-2C-1
12.00" (305.0mm)
FML-2C-2
24.00" (0.60m)
FML-2C-3
36.00" (0.91m)
FML-2C-6
72.00" (1.82m)
FML-2C-12
144.00" (3.65m)
FML-2C-15
180.00" (4.57m)
FML-2C-20
240.00" (6.09m)
Lead with DC Plug
FML-2C-DC-1-M
12" (305mm)
FML-2C-DC-1-F
12" (305mm)
FML-2C-DC-6-M
72" (1.82m)
FML-2C-DC-6-F
72" (1.82m)
FML-2C-DC-10-M
120" (3.04m)
FML-2C-DC-10-F
120" (3.04m)
Connectors
FMC-2C-1.5|
1.5" (38mm)
FMC-2C-3I
3" (76mm)
FMC-2C-6I
6" (152mm)
FMC-2C-9I
9" (228mm)
FMC-2C-1
12" (305mm)
FMC-2C-2
24" (0.60m)
Field Connectors/Couplers
Wire Lead
Unit Number
UNI-WL-I-WL12-6
Feed Length
72.0" (1.82m)
Length
0.54" (13.6mm)
Width
0.54" (13.7mm)
Height
0.17" (4.2mm)
Corner Connector
Unit Number
UNI-WL-I-CC12-3I
Feed Length
2.83" (71.9mm)
Length
0.54" (13.6mm)
Width
0.54" (13.7mm)
Height
0.17" (4.2mm)
Straight Coupler
Unit Number
UNI-WL-I-SC12
Length
0.54" (13.6mm)
Width
0.54" (13.7mm)
Height
0.17" (4.2mm)
