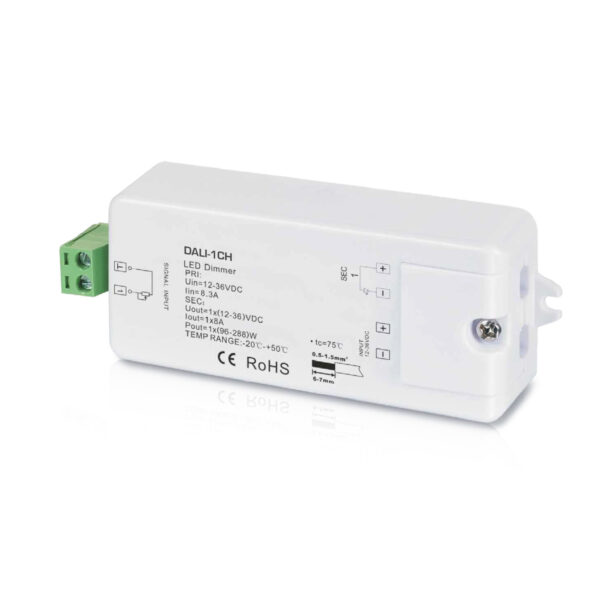

Single Color DALI 1 Channel Dimmer
DALI-1CH
The DALI-1CH is a single channel digital converter.
- 1-Channel Dali Dimming Module
- 0-100% Logarithmic Dimming Range
- 256 Dim Increments for Smooth Transitions
- PWM Output
Downloads
Technical Specifications

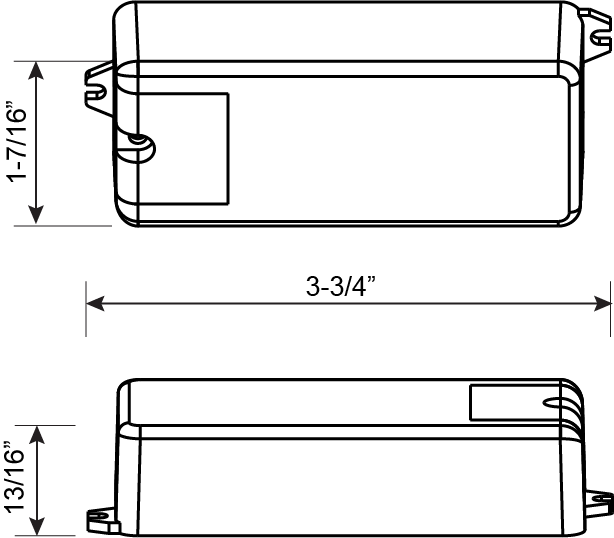

| Overall Dimensions (L*W*D) | 3.75″ × 1.44″ × 0.81″ |
| Input Voltage | 12-24V DC |
| Output | 1 × 8A |
| Constant Voltage | Constant Voltage |
| Indoor/Outdoor | Indoor |
| Input Protocol | DALI |
| Output Protocol | PWM |
| Channels of Control | 1 |
| Data Connection Method | Screw Terminal |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
| Operating Temp. | -4°F (-20°C) to 122°F (50°C) |
| Storage Temp. | 65°F (18°C) to 85°F (29°C) |
Your Product Code
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
1. DALI
- DALI — DALI
2. 1CH
- 1CH — 1CH
Standards and Certifications
