CH-091

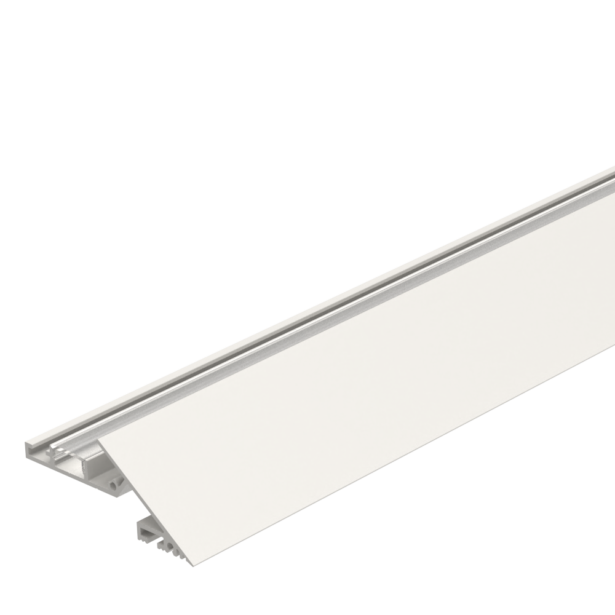

Knife Edge Extruded Aluminum Mounting Channel

Download Spec Sheet Contact Us Add to Project

Available in 2 Meter Sections
Extruded Aluminum Construction
Primer White Powder Coat Finish
Consult Factory for Custom Lengths & Finishes
Mitered Corner Available Upon Request
Intended For Existing 1/2” Drywall

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

Installation Instructions

Warranty

Warranty Info

Additional Files

Channel Profile Matrix

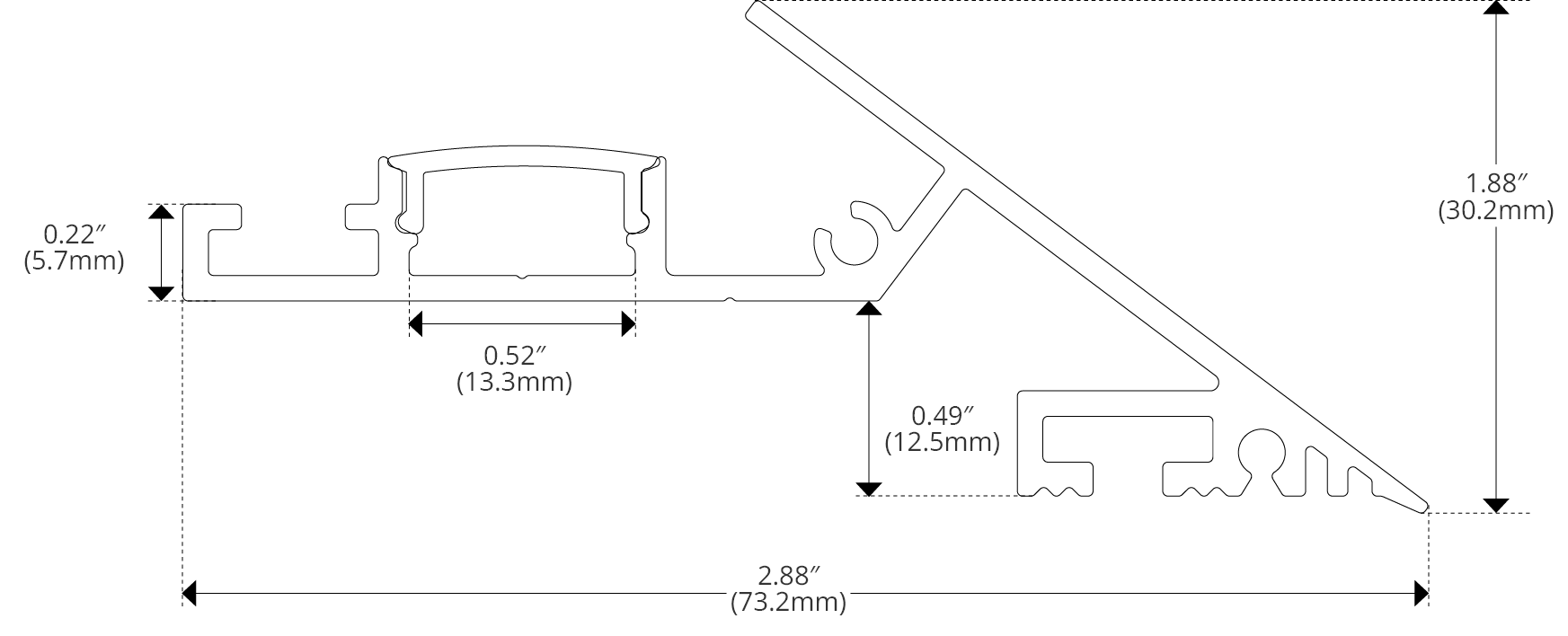

Technical Specifications

Length	78.74" (2m)
Overall Width	2.88" (73.2mm)
Internal Width	0.52" (13.3mm)
Height	1.88" (30.2mm)
Lens Color	Clear, Frosted, White
Finish	White Powder Coat

Specify Your Product

Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.

Product Code:

Make a selection in each category to complete your product code.

1. Item

CH-091 — CH-091

2. Length

2 — 2 Meter

3. Lens

CL — Clear
FR — Frosted
WH — White

4. Mounting

NA — Knife Edge

5. End Cap

EC — End Caps (Included)

Connector Options

Straight Connector

Secure two pieces of channel together to form a continuous run of light.

Unit Number

CH-CON-01-180

90° Connector Horizontal

Secure two pieces of channel together to form a 90° horizontal corner.

Unit Number

CH-CON-01-90H

Compatible Tapes

Performance 100 (Indoor)

Discontinued PJ Series | Linear LED Strip Tape

Performance 100 (Outdoor)

Discontinued PJ Series | Rubber-Coated Linear LED Strip Tape

Performance 200 (Indoor)

Discontinued - PL Series | Linear LED Strip Tape

Performance 200 (Outdoor)

Discontinued - PL Series | Rubber-Coated Linear LED Strip Tape

Performance 300 (Indoor)

Discontinued - PH Series | Linear LED Strip Tape

Performance 300 (Outdoor)

Discontinued - PH Series | Rubber-Coated Linear LED Strip Tape

Performance 500 (Indoor)

Discontinued - PQ Series | Linear LED Strip Tape

Performance 500 (Outdoor)

Discontinued - PQ Series | Rubber-Coated Linear LED Strip Tape

Direct View 200 (Indoor)

Discontinued - DL Series | Linear LED Strip Tape

Direct View 200 (Outdoor)

Discontinued - DL Series | Rubber-Coated Linear LED Strip Tape

Direct View 400 (Indoor)

Discontinued - DK Series | Linear LED Strip Tape

Direct View 400 (Outdoor)

Discontinued - DK Series | Rubber-Coated Linear LED Strip Tape

Direct View 700 (Indoor)

Discontinued - DV Series | Linear LED Strip Tape

Direct View 700 (Outdoor)

Discontinued - DV Series | Rubber-Coated Linear LED Strip Tape

Vertex™ 1000 (Outdoor)

Discontinued - VT Series | Rubber-Coated Linear LED Strip Tape

Vertex™ 1000 (Indoor)

Discontinued - VT Series | Linear LED Strip Tape

RGBW (Indoor)

Constant Current Linear LED Strip Tape

RGBW (Outdoor)

Constant Current Rubber-Coated Linear LED Strip Tape

RGBCT (Indoor)

Color Changing + Color Tuning Linear LED Strip Tape

Uniform Color Tuning

UNIx-CT Series | Color Tuning LED Strip Tape

Uniform Ingrade

Uniform Static White

UNIx-WL Series | White Light Strip Tape

Uniform Thin Line

UNIx-TL Series | Extra Thin LED Strip Tape

Uniform Dim to Warm

UNIx-DW Series | Incandescent-like LED Strip Tape

Compatible Specialty Tapes

Crayon (Indoor/Outdoor)

CRN Series | Rubber-Coated Static Color Linear LED Strip Tape

UV Blacklight

H400-UV-WR-24V | Rubber Coated Blacklight Linear LED Strip Tape

Digital Pixel (Indoor)

TXRGBW Series | Color Changing Pixel Control Linear LED Strip Tape

Digital Pixel (Outdoor)

TXRGBW Series | Rubber-Coated Color Changing Pixel Control Linear LED Strip Tape
