Signwave® 4 Static White
SW4S Series | Narrow Viewing Angle Flexible Lighting System
One of the newest additions to our Signwave® Series products, Signwave 4 offers Horizontal bending with a narrow viewing angle, and multiple configurations Offered in Color Tuning, this series tackles projects with fluid, seamless connections.
- Dimmable
- 50,000 Hour Life
- Flat Profile for Narrow Beam Angle
- UL-Listed for Indoor and Outdoor Use
- IP68
- Factory-Installed Power Feed
- Injection-Molded Flush End Caps
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K |
| Input Voltage | 24V DC |
| Lumens per Foot | 162 lm/ft (Static White) |
| Watts per Foot | 3.7 |
| Beam Angle | 320° |
| CRI | 80+ |
| Indoor/Outdoor | Indoor/Outdoor |
| Viewing Angle | Wide |
| Life Expectancy | 50,000 Hour Life |
| Feed Orientation | Bottom Feed, End Feed, Side-Feed Right, Side-Feed Left |
| Bend Direction | Horizontal |
| Bend Radius | 4.75" (120mm) |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512, Hi-lume |
| Operating Temp. | -4°F (-20°C) to 113°F (45°C) |
| Static White | Red | Green | Blue | Amber | RGBW | Color Tuning (2200–5700K) | |
|---|---|---|---|---|---|---|---|
| Wavelength | N/A | 620 - 630 nm | 520 - 530 nm | 465 - 475 nm | 585 - 595 nm | N/A | N/A |
| Wattage per Foot | 3.7 W/ft | 2.2 W/ft | 3.7 W/ft | 3.7 W/ft | 2.2 W/ft | 4.6 W/ft | 3.7 W/ft |
| Max Run Length (Indoors) | 26ft | 40ft | 26ft | 26ft | 40ft | 21ft | 26ft |
| Production Intervals | 3.25” | 4.93” | 3.25" | 3.25” | 4.93” | 3.93” | 3.25” |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- SW4S — Signwave 4 Silicone
2. Length
3. Color/Temp
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 57K — 5700K
4. Feed Point
- B — Bottom Feed
- SL — Side-Feed Left
- SR — Side-Feed Right
- E — End Feed
5. Feed Length*
- S — Standard (118")
6. IP Rating
- IP68 — IP68
* Customizable—Consult Factory
Standards and Certifications
Mounting Options
Aluminum Serrated Channel
Model
SW-E-AL-CH-SR-2M
Length
78.75" (2m)
Width
0.63" (15.9mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Aluminum Serrated Clip
Model
SW-E-CLP-AL-SR
Length
0.79" (20mm)
Width
0.63" (15.9mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Aluminum Serrated Flex Channel
Model
SW-E-CH-AL-FLX-1M
Length
39.30" (1m)
Width
0.63" (15.9mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Side Mounting Bracket
Model
SW-CLP-RA
Length
0.79" (20mm)
Width
0.98" (25mm)
Height
2.75" (70mm)
Material
Aluminum
Serrated Recessed Channel
Model
SW-E-AL-CH-SR-RC-2M
Length
78.75″ (2m)
Width
1.00" (25.5mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Related Products
Compatible Power Supplies
ULV96 Mini
96 Watt–24 Volt | Class 2 Power Supply
HLV96 Mini
96 Watt–24 Volt | Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
HLV36-SC
36 Watt–24 Volt | Class 2 Power Supply
Compatible Controls & Dimmers
DMX 4 Channel 3 Scene In-Wall Controller
DMXC-4C-3S-IW-W
DMX 4 Channel 3 Zone In-Wall Controller
DMXC-4C-3Z-IW-W
DMX 2 Channel 4 Zone In-Wall Controller
DMXC-2C-4Z-IW-W
Analog 4 Channel Controller
RGBW-QC-4C
DMX 5 Channel Decoder
DMXD-5C-8A-UNV
DMX 4 Channel Weatherproof Decoder
DMXD-4C-5A-WP
DMX 4 Channel Decoder
DMXD-4C-5A-TB
DMX RGBW 4 Channel Decoder
Discontinued - DMX-24506
DMX RGBW 6 Channel Decoder
Discontinued - DMX-26506
RF 2 Channel 1 Zone In-Wall Button Controller
RFC-A-CCT-1ZD-IW-BT-W
RF 2 Channel 1 Zone In-Wall Knob Controller
RFC-A-CCT-1Z-IW-BT-W
RF 2 Channel 1 Zone Tabletop Controller
RFC-A-CCT-1Z-TT-BT-B
RF 2 Channel 4 Zone Handheld Controller
RFC-A-CCT-4Z-HH-BT-B
RF 4 Channel 3 Scene In-Wall Controller
RFC-A-RGBW-3S-IW-W
RF 4 Channel 3 Zone In-Wall Controller
RFC-A-RGBW-3Z-IW-W
RF 4 Channel 4 Zone Handheld Controller
RFC-A-RGBW-4Z-HH-BT-B
RF 4 Channel 1 Zone Remote/Receiver Combo
RGBW1-KIT
RF 4 Channel Receiver
RFR-A-4C-5A
RF/Wifi Controller for RF Receivers
RFC-A-WIFI
Compatible Accessories
Junction Box
IP67 Water Rated Junction Box

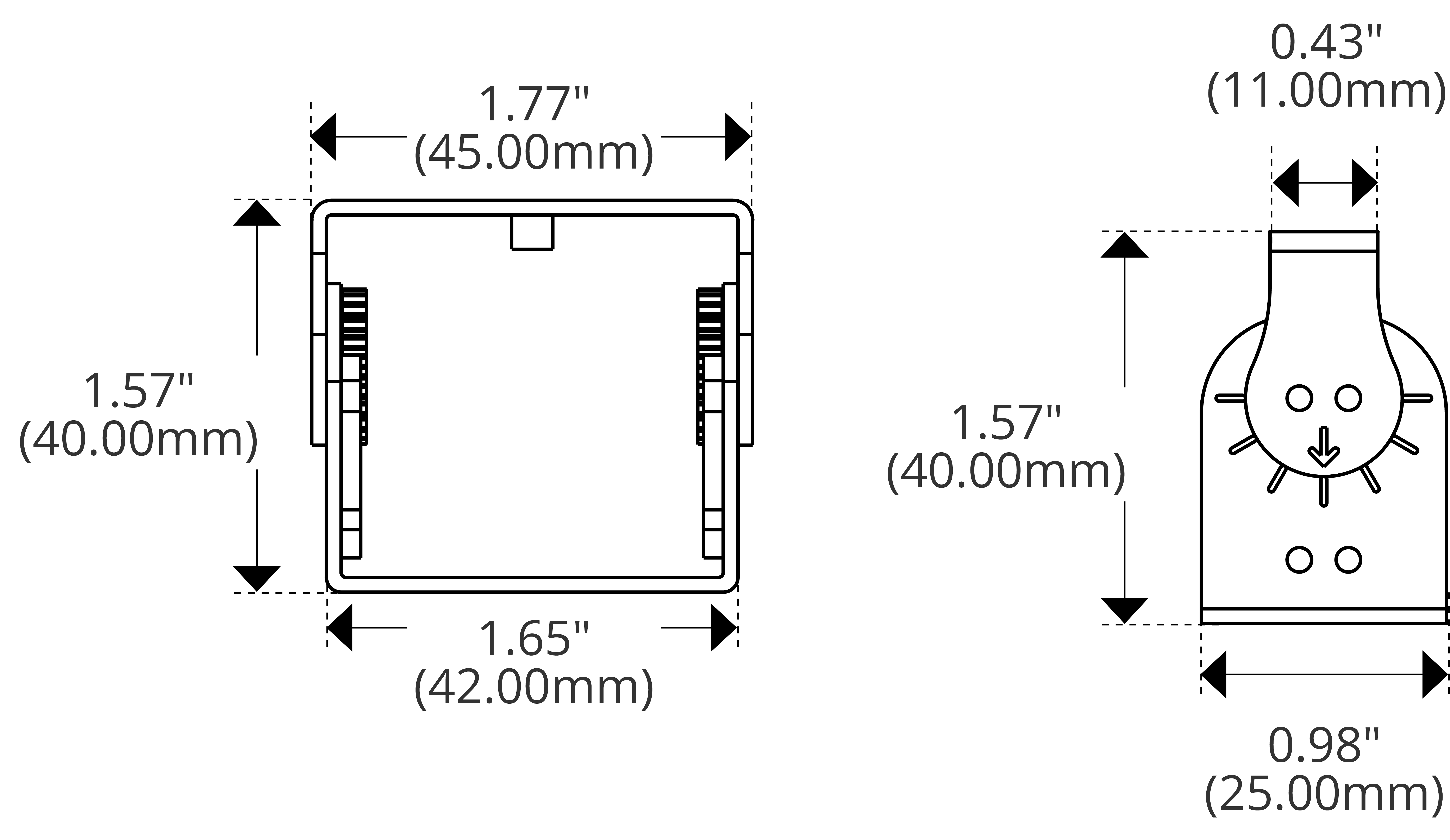

SW Pivot Clip
Pivot Clip
Rotary Locking Pivot Clip for Signwave 3, 4, 5, 7 and 3 Mini
