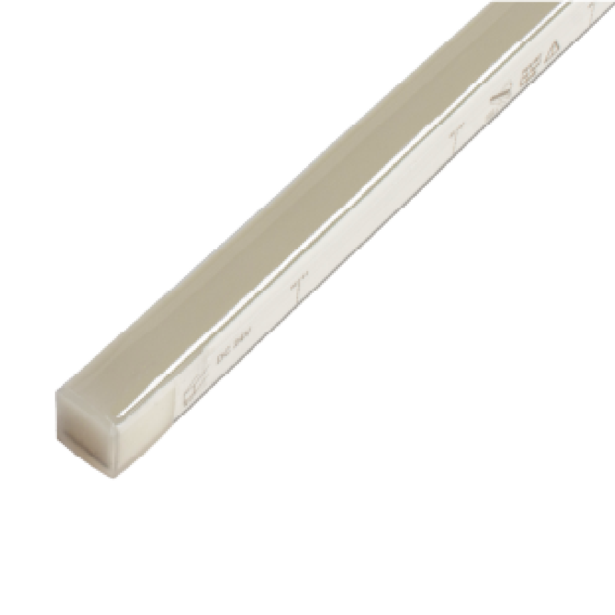

Signwave® 3 Mini Static White
Signwave 3 Mini is the smallest version of our Signwave Series. It has both Horizontal and Vertical Bending options. The miniature flat top of Signwave 3 Mini provides an excellent option for accent lighting, with its small aperture and finely tuned light levels, offered in Static Whites from 27K-50K.
- Dimmable
- 50,000 Hour Life
- Flat Profile for Streamline Projects
- Horizontal or Vertical Bending Option
- IP67
- UL-Listed for Indoor and Outdoor Use
- Factory-Installed Power Feed
- Injection-Molded Flush End Caps
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5700K |
| Input Voltage | 24V DC |
| Lumens per Foot | 80 lm/ft (Static White) |
| Watts per Foot | 1.3W |
| Indoor/Outdoor | Indoor/Outdoor |
| Beam Angle | 112° |
| CRI | 80+ |
| IP Rating | IP67 |
| Viewing Angle | Narrow |
| Life Expectancy | 50,000 Hour Life |
| Feed Orientation | Bottom Feed, End Feed, Side-Feed Right, Side-Feed Left |
| Bend Direction | Horizontal, Vertical |
| Bend Radius | 11.81" (300mm) |
| Dimming Options | PWM, TRIAC, 0-10V, DMX 512, Hi-lume |
| Operating Temp. | -40°F (-40°C) to 131°F (55°C) |
| Static White | |
|---|---|
| Wavelength | N/A |
| Wattage per Foot | 1.3 W/ft |
| Max Run Length (Indoors) | 26ft |
| Production Intervals | 2.19” |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- SW3M — Signwave 3 Mini
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 57K — 5700K
- VR — Vertical
- HZ — Horizontal
- B — Bottom Feed
- SL — Side-Feed Left
- SR — Side-Feed Right
- E — End Feed
- S — Standard (118")
- IP67 — IP67
* Customizable—Consult Factory
Standards and Certifications

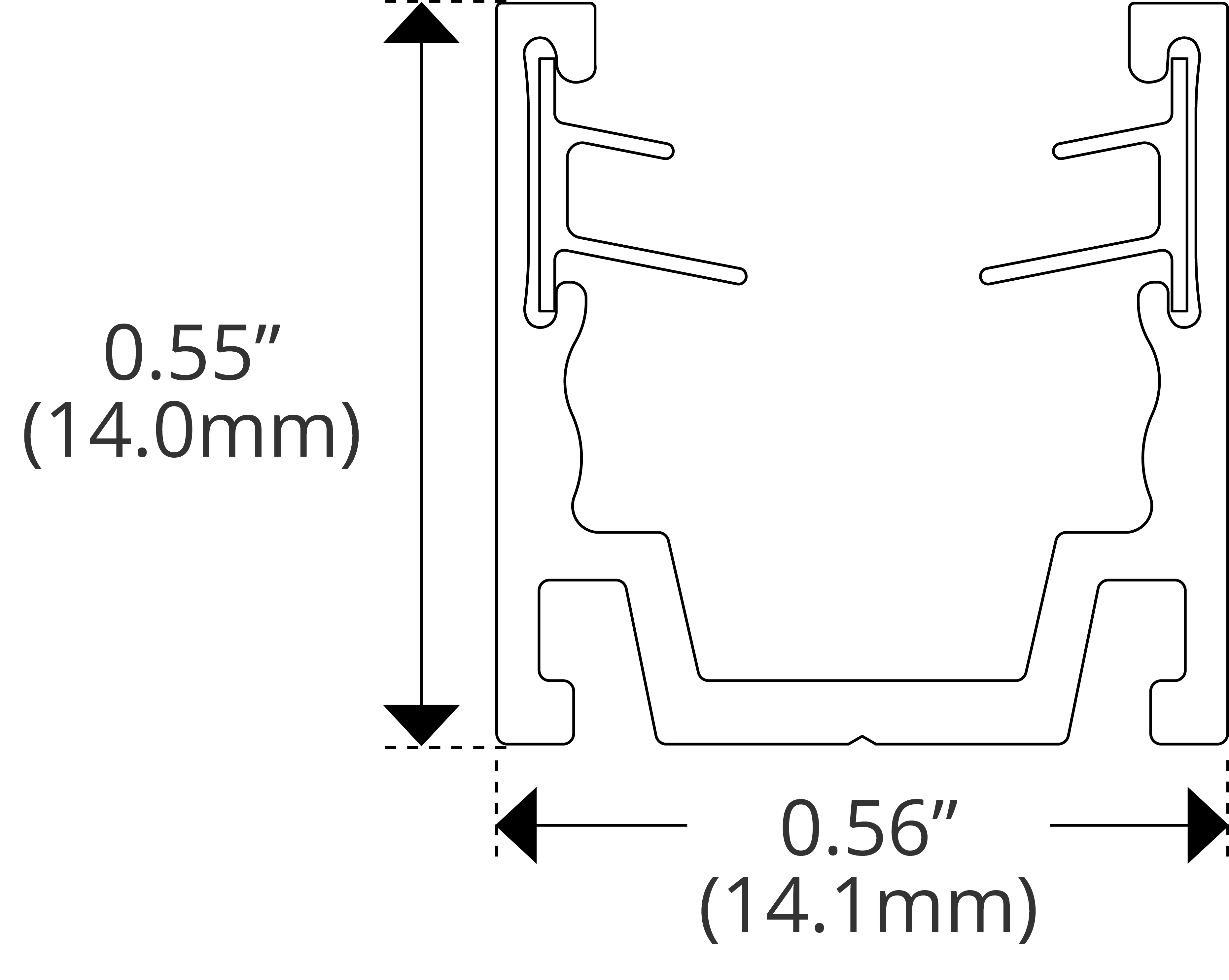

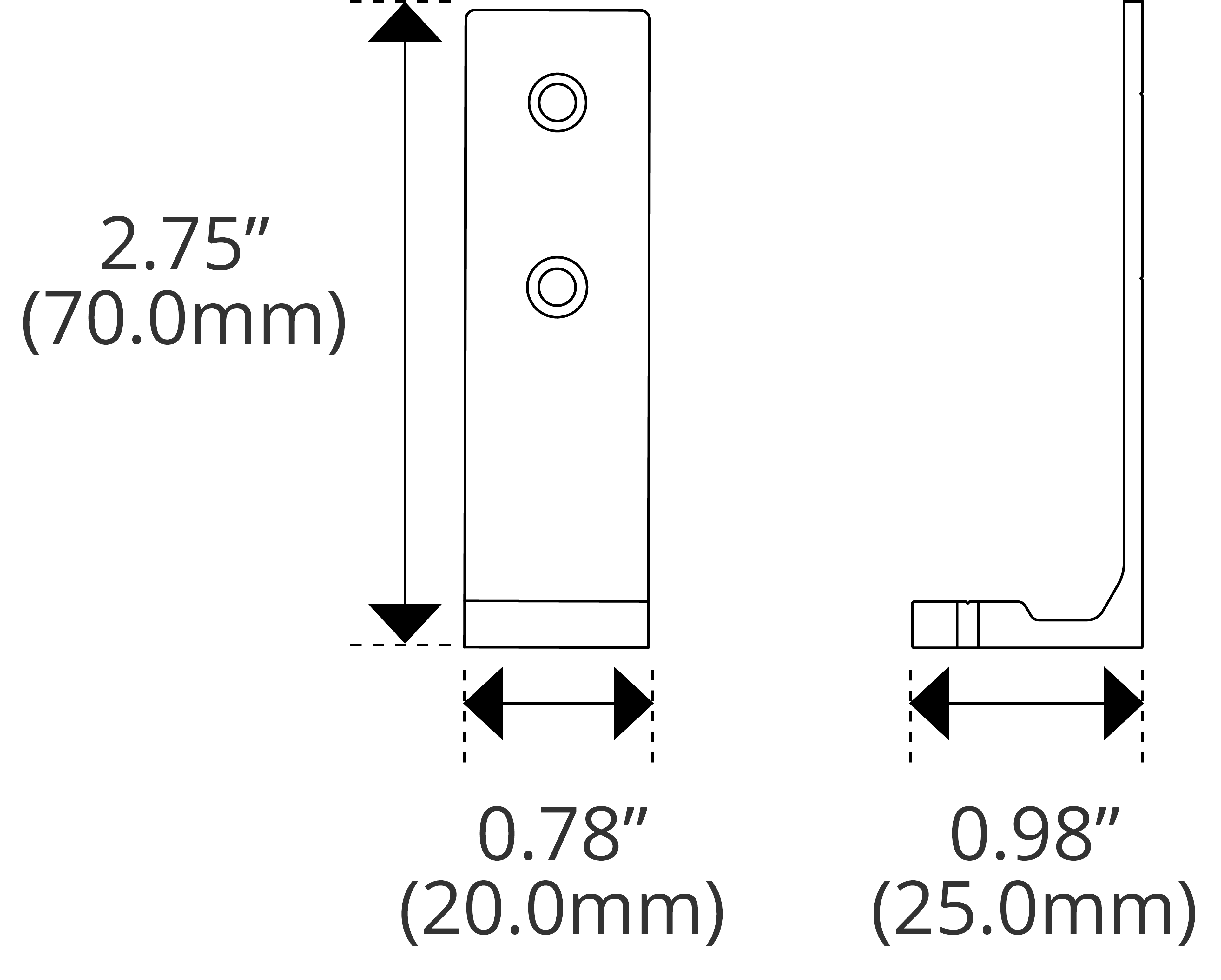

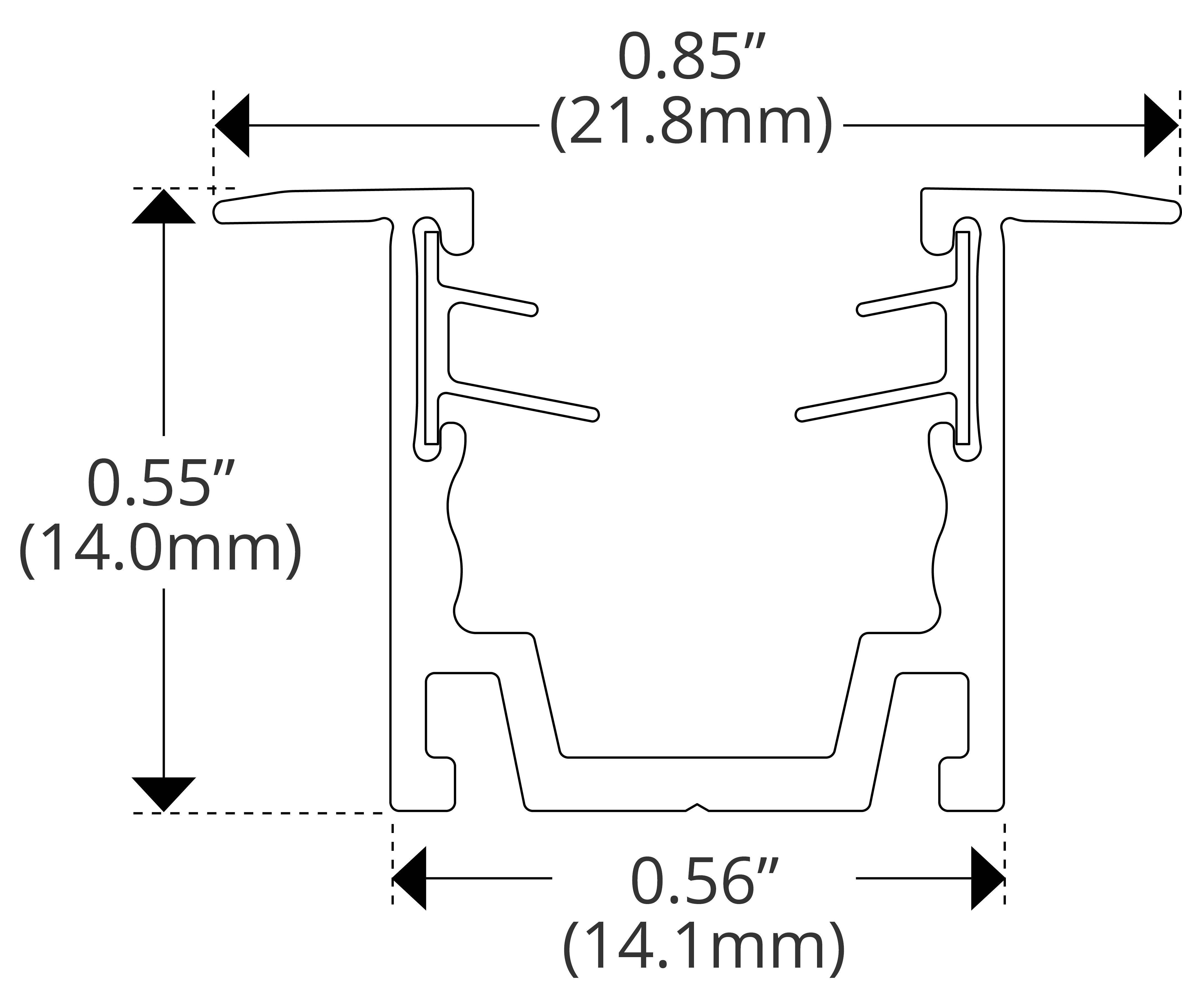

Mounting Options
