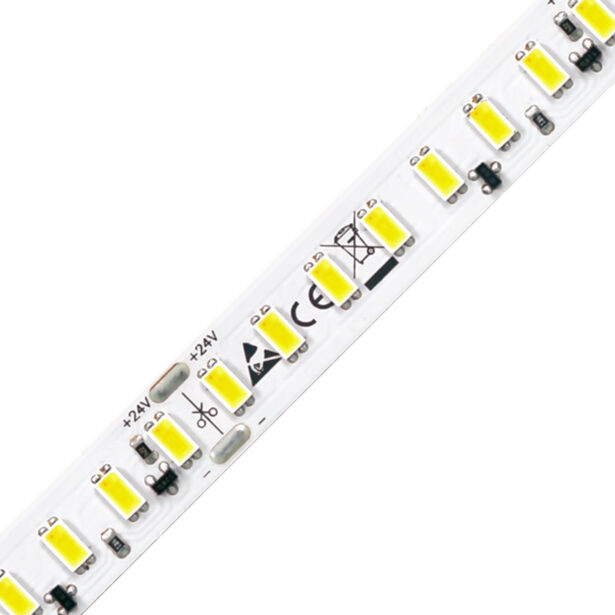

Vertex™ 1000 (Indoor)
VT Series | Linear LED Strip Tape
Vertex™ boasts 1000 lumens per foot. Using Onboard Thermal Management, Vertex™ stays cool to the touch. Pair with a variety of aluminum channels to create limitless fixture options in nearly any desired size or shape.
- 1000 Lumens per Foot
- Dimmable
- 50,000 Hour Life
- UL-listed for Indoor Use
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Indoor/Outdoor | Indoor |
| Input Voltage | 24V DC |
| Watts per Foot | 6.7W |
| Optic | 120° |
| Max Run Length | 14ft |
| CRI | 85+ |
| Operating Temp. | -40°F (-40°C) to 149°F (65°C) |
| Cut Intervals | 2.50" (62.5mm) |
| Tape Width | 0.47" (12mm) |
| Tape Height | 0.06" (1.5mm) |
| Diode | 5630 |
| Life Expectancy | 50,000 Hour Life |
| Field Cuttable | Yes |
| VT27K-24V | VT3K-24V | VT35K-24V | VT40K-24V | VT5K-24V | |
|---|---|---|---|---|---|
| Kelvin | 2700K | 3000K | 3500K | 4000K | 5000K |
| Lumens per Foot | 966 lm/ft | 1000 lm/ft | 1020 lm/ft | 1041 lm/ft | 1065 lm/ft |
| Lumens per Watt | 144 lm/W | 149 lm/W | 152 lm/W | 155 lm/W | 158 lm/W |
| 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.7 | 13.4 | 20.1 | 26.8 | 33.4 | 40.1 | 46.8 | 53.5 | 60.2 | 66.9 | 73.5 | 80.3 | 86.9 | 93.6 |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- VT27K — Vertex 1000 2700K
- VT3K — Vertex 1000 3000K
- VT35K — Vertex 1000 3500K
- VT40K — Vertex 1000 4000K
- VT5K — Vertex 1000 5000K
2. Input Voltage
- 24V — 24V DC
