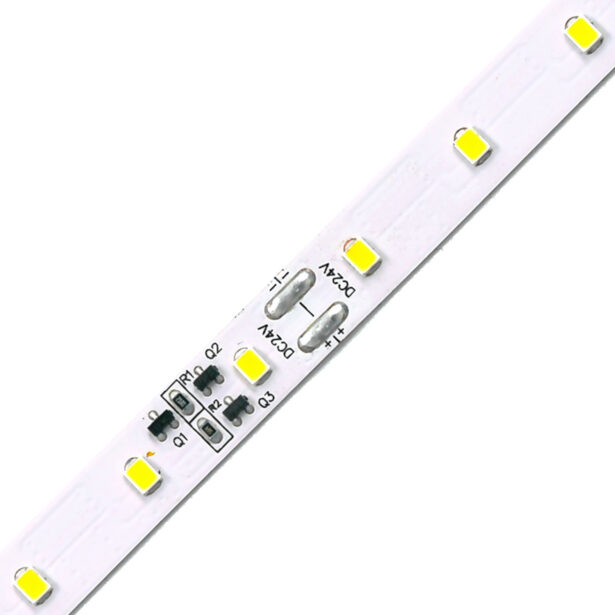

Max™ 200 (Indoor)
MX Series | Long Distance Linear LED Strip Tape
Max 200 is the brightest long-distance Class 2 product on the market. Powered at a single end, Max 200 can go 50 feet per power feed.
- Max Run Length – Up to 50ft per Power Feed
- 90+ CRI
- Dimmable
- 50,000 Hour Life
- UL-listed for Indoor Use
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Indoor/Outdoor | Indoor |
| Input Voltage | 24V DC |
| Watts per Foot | 1.9W |
| Optic | 120° |
| Max Run Length | 50ft |
| CRI | 90+ |
| Operating Temp. | -40°F (-40°C) to 149°F (65°C) |
| Cut Intervals | 3.94" (100mm) |
| Tape Width | 0.38" (10mm) |
| Tape Height | 0.05" (1.3mm) |
| Diode | 2835 |
| Life Expectancy | 50,000 Hour life |
| Field Cuttable | Yes |
| MX27K-24V | MX3K-24V | MX35K-24V | MX40K-24V | MX5K-24V | |
|---|---|---|---|---|---|
| Kelvin | 2700K | 3000K | 3500K | 4000K | 5000K |
| Lumens | 220 lm/ft | 230 lm/ft | 239 lm/ft | 248 lm/ft | 258 lm/ft |
| Lumens per Watt | 115 lm/W | 121 lm/W | 125 lm/W | 130 lm/W | 135 lm/W |
| 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.89 | 3.77 | 5.66 | 7.54 | 9.43 | 11.32 | 13.20 | 15.09 | 16.97 | 18.86 | 20.75 | 22.63 | 24.52 | 26.40 | 28.29 | 30.18 | 32.06 |
| 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 26ft | 27ft | 28ft | 29ft | 30ft | 31ft | 32ft | 33ft | 34ft |
| 33.95 | 35.83 | 37.72 | 39.61 | 41.49 | 43.38 | 45.26 | 47.15 | 49.04 | 50.92 | 52.81 | 54.69 | 56.58 | 58.47 | 60.35 | 62.24 | 64.12 |
| 35ft | 36ft | 37ft | 38ft | 39ft | 40ft | 41ft | 42ft | 43ft | 44ft | 45ft | 46ft | 47ft | 48ft | 49ft | 50ft | 51ft |
| 66.01 | 67.90 | 69.78 | 71.67 | 73.55 | 75.44 | 77.33 | 79.21 | 81.10 | 82.98 | 84.87 | 86.76 | 88.64 | 90.53 | 92.41 | 94.30 | N/A |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- MX27K — Max 200 2700K
- MX3K — Max 200 3000K
- MX35K — Max 200 3500K
- MX40K — Max 200 4000K
- MX5K — Max 200 5000K
2. Input Voltage
- 24V — 24V DC
