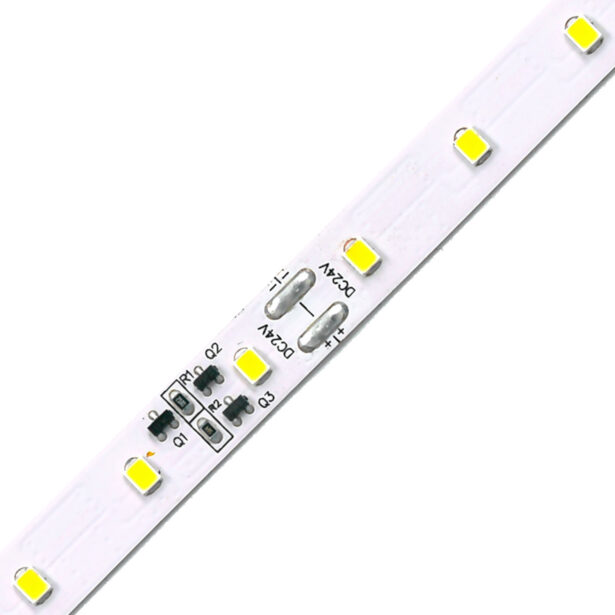

Max™ 100 (Indoor)
M Series | Long Distance Linear LED Strip Tape
Max 100 is an industry first. Powered at a single end, Max 100 is capable of run lengths up to 100 feet. This is a great product for retrofits when power source locations are limited.
- Max Run Length – Up to 100ft per Power Feed
- 90+ CRI
- Dimmable
- 50,000 Hour Life
- UL-listed for Indoor Use
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Indoor/Outdoor | Indoor |
| Input Voltage | 24V DC |
| Watts per Foot | 0.9W |
| Optic | 120° |
| Max Run Length | 100ft |
| CRI | 90+ |
| Operating Temp. | -40°F (-40°C) to 149°F (65°C) |
| Cut Intervals | 3.94" (100mm) |
| Tape Width | 0.38" (10mm) |
| Tape Height | 0.05" (1.3mm) |
| Diode | 3528 |
| Life Expectancy | 50,000 Hour life |
| Field Cuttable | Yes |
| M27K-24V | M3K-24V | M35K-24V | M40K-24V | M5K-24V | |
|---|---|---|---|---|---|
| Kelvin | 2700K | 3000K | 3500K | 4000K | 5000K |
| Lumens per Foot | 117 lm/ft | 122 lm/ft | 126 lm/ft | 132 lm/ft | 137 lm/ft |
| Lumens per Watt | 130 lm/W | 135 lm/W | 140 lm/W | 146 lm/W | 152 lm/W |
| 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft | 18ft | 19ft | 20ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.94 | 1.88 | 2.82 | 3.76 | 4.7 | 5.64 | 6.58 | 7.52 | 8.46 | 9.4 | 10.3 | 11.3 | 12.2 | 13.2 | 14.1 | 15 | 16 | 16.9 | 17.9 | 18.8 |
| 21ft | 22ft | 23ft | 24ft | 25ft | 26ft | 27ft | 28ft | 29ft | 30ft | 31ft | 32ft | 33ft | 34ft | 35ft | 36ft | 37ft | 38ft | 39ft | 40ft |
| 19.7 | 20.7 | 21.6 | 22.6 | 23.5 | 24.4 | 25.4 | 26.3 | 27.3 | 28.2 | 29.1 | 30.1 | 31 | 32 | 32.9 | 33.8 | 34.8 | 35.7 | 36.7 | 37.6 |
| 41ft | 42ft | 43ft | 44ft | 45ft | 46ft | 47ft | 48ft | 49ft | 50ft | 51ft | 52ft | 53ft | 54ft | 55ft | 56ft | 57ft | 58ft | 59ft | 60ft |
| 38.5 | 39.5 | 40.4 | 41.4 | 42.3 | 43.2 | 44.2 | 45.1 | 46.1 | 47 | 47.9 | 48.9 | 49.8 | 50.8 | 51.7 | 52.6 | 53.6 | 54.5 | 55.5 | 56.4 |
| 61ft | 62ft | 63ft | 64ft | 65ft | 66ft | 67ft | 68ft | 69ft | 70ft | 71ft | 72ft | 73ft | 74ft | 75ft | 76ft | 77ft | 78ft | 79ft | 80ft |
| 57.3 | 58.3 | 59.2 | 60.2 | 61.1 | 62 | 63 | 63.9 | 64.9 | 65.8 | 66.7 | 67.7 | 68.6 | 69.6 | 70.5 | 71.4 | 72.4 | 73.3 | 74.3 | 75.2 |
| 81ft | 82ft | 83ft | 84ft | 85ft | 86ft | 87ft | 88ft | 89ft | 90ft | 91ft | 92ft | 93ft | 94ft | 95ft | 96ft | 97ft | 98ft | 99ft | 100ft |
| 76.1 | 77.1 | 78 | 79 | 79.9 | 80.8 | 81.8 | 82.7 | 83.7 | 84.6 | 85.5 | 86.5 | 87.4 | 88.4 | 89.3 | 90.2 | 91.2 | 92.1 | 93.1 | 94 |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- M27K — Max 100 2700K
- M3K — Max 100 3000K
- M35K — Max 100 3500K
- M40K — Max 100 4000K
- M5K — Max 100 5000K
2. Input Voltage
- 24V — 24V DC
