CH-011
0.75" × 0.813" | Surface
Store in a Temperature-Controlled Environment.
- Available in 2 Meter Sections

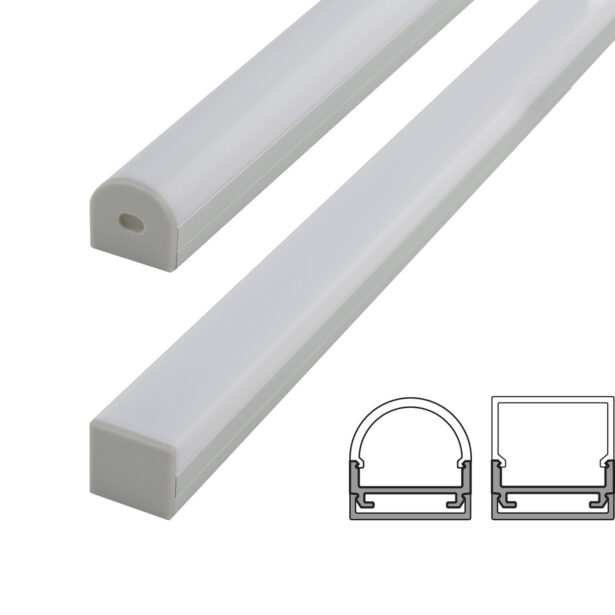

- Choose round or square lenses
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Spec Sheet
Spec SheetInstallation Instructions
Warranty
IES Files
CAD Files
Photometric Files
Additional Files
Technical Specifications
| Length | 78.74" (2m) |
| Overall Width | 0.78" (19.7mm) |
| Internal Width | 0.67" (16.9mm) |
| Height | 0.79" (20mm) |
| Lens Shape | Square, Round |
| Lens Color | Frosted, White |
| Finish | Anodized Matte |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- CH011 — CH-011
2. Length
- 2 — 2 Meter
3. Lens
- WHR — White Round
- FRR — Frosted Round
- WHS — White Square
- FRS — Frosted Square
4. Mounting
- SF — Surface
5. End Cap
- EC — End Caps (Included)
