25HE-24V
25 Watt - 24 Volt Universal Dimming

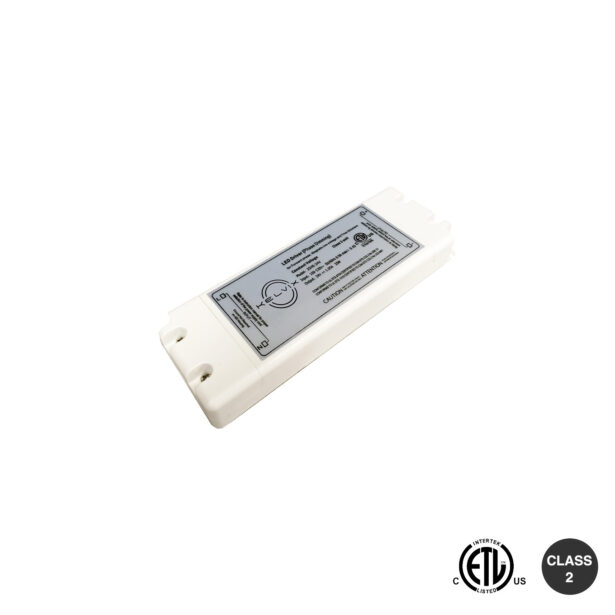

The 25HE-24V is an indoor compact power supply. Its universal dimming allows use with Incandescent, MLV, and ELV dimmers. Instead of standard knock-out connections, this unit connects directly to power via the integral screw terminals.
- Hardwire Power Supply With Forward & Reverse Phase Dimming
- Primary Side Dimmable – ELV/MLV/INC
- Rated for Indoor Use
- ETL Listed
- Class 2
Downloads
Technical Specifications
| Indoor/Outdoor | Indoor |
| Input Voltage | 120V AC |
| Operating Temp. | -20°F (-29° C) – 158°F (70°C) |
| Storage Temp. | 65°F (18°C) to 85°F (29°C) |
| Dimming Protocol | ELV, MLV |
| Output Power | 25W |
| Width | 6.13" |
| Height | 2.13" |
| Depth | 0.81" |
| Output Voltage | 24V DC / Constant Voltage |
| Live Voltage Termination Type | Bare Wire |
| Low Voltage Termination Type | Bare Wire |
| Enclosure Width | 6.125" |
| Enclosure Height | 2.125" |
| Enclosure Depth | .8125" |
| Encloser Material | Plastic |
| Type | Dimming |
Your Product Code
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
1. 25HE
- 25HE — 25HE
2. 24V
- 24V — 24V
