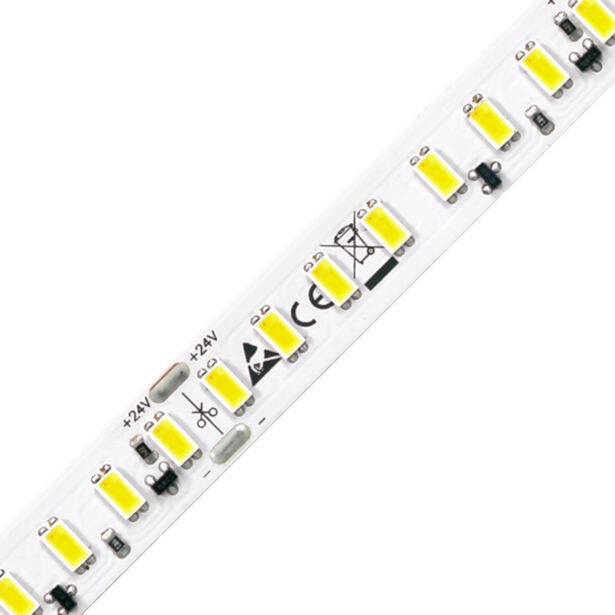

Vertex™ 1000 (Outdoor)
VT Series | Rubber-Coated Linear LED Strip Tape
Vertex™ boasts 1000 lumens per foot. Using Onboard Thermal Management, Vertex™ stays cool to the touch. Pair with a variety of aluminum channels to create limitless fixture options in nearly any desired size or shape.
- 1000 Lumens per Foot
- Dimmable
- 50,000 Hour Life
- UL-listed for Indoor and Outdoor Use
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Indoor/Outdoor | Outdoor |
| Input Voltage | 24V DC |
| Watts per Foot | 6.7W |
| Optic | 120° |
| Max Run Length | 14ft |
| CRI | 85+ |
| Operating Temp. | -40°F (-40°C) to 149°F (65°C) |
| Cut Intervals | 2.50" (62.5mm) |
| Tape Width | 0.60" (15mm) |
| Tape Height | 0.24" (6mm) |
| Diode | 5630 |
| Life Expectancy | 50,000 Hour Life |
| Field Cuttable | No |
| Outer Jacket Material | Silicone |
| VT27K-WR-24V | VT3K-WR-24V | VT35K-WR-24V | VT40K-WR-24V | VT5K-WR-24V | |
|---|---|---|---|---|---|
| Kelvin | 2700K | 3000K | 3500K | 4000K | 5000K |
| Lumens per Foot | 966 lm/ft | 1000 lm/ft | 1020 lm/ft | 1041 lm/ft | 1065 lm/ft |
| Lumens per Watt | 144 lm/W | 149 lm/W | 152 lm/W | 155 lm/W | 158 lm/W |
| 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.7 | 13.4 | 20.1 | 26.8 | 33.4 | 40.1 | 46.8 | 53.5 | 60.2 | 66.9 | 73.5 | 80.3 | 86.9 | 93.6 |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- VT27K — Vertex 1000 2700K
- VT3K — Vertex 1000 3000K
- VT35K — Vertex 1000 3500K
- VT40K — Vertex 1000 4000K
- VT5K — Vertex 1000 5000K
2. Location
- WR — Outdoor
3. Input Voltage
- 24V — 24V DC
Standards and Certifications
Related Projects
Related Products
Compatible Channels
CH-222
0.938" × 0.563" | Surface / Suspended / Adjustable
CH-016
1.188" × 1.188" | Angled
CH-228-N
1.375" × 1" | Surface / Suspended / Adjustable
CH-217-N
1.938" × 1.5" | Recessed
CH-218-N
1.375" × 1.5" | Surface / Suspended / Adjustable
CH-219-N
1.625" × 1.375" | Wall Mounted
CH-045-R-E
2.56" × 1.38" | Recessed
CH-046-R-E
2" × 1.375" | Surface / Suspended
CH-047-R1-F
3.563" × 1.375" | Recessed
CH-048-R1-F
2.938" × 1.375" | Surface / Suspended
CH-291
3.563" × 1.5" | Suspended Aluminum Channel
CH-0007
3.72" × 1.39" | Trimless & Mud-In
CH-0003
2.42" × 0.55" | Trimless & Mud-In
CH-0008
1.38" × 3.82" | Trimless & Mud-In
CH-0009
2.57" × 1.10" | Trimless & Mud-In
Compatible Power Supplies
ULV96
96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
96 Watt - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
25HE-24V
25 Watt - 24 Volt Universal Dimming
50HE-24V
50 Watt - 24 Volt Universal Dimming Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
Compatible Controls & Dimmers
Single Color 1 Zone In-Wall Controller
RFC-A-SC-1ZD-IW-BT-W
Single Color 1 Zone Tabletop Controller
RFC-A-SC-1Z-TT-BT-B
Single Color 4 Zone Handheld Controller
RFC-A-SC-4Z-HH-BT-B
Single Color 1 Zone Handheld Controller
RFC-A-SC-1Z-HH-BT
RF 4 Channel Receiver
RFR-A-4C-5A
RF 1 Channel Receiver
RFR-A-1C-8A
Single Color 0-10V 1 Channel Dimmer
0-10V-1CH
Single Color 0-10V 4 Channel Dimmer
0-10V-4CH
Single Color DALI 1 Channel Dimmer
DALI-1CH
RF/Wifi Controller for RF Receivers
RFC-A-WIFI
